Indoor Load Switches | -Ensure Safe Power Control

Echo
Field: Transformer Analysis
China

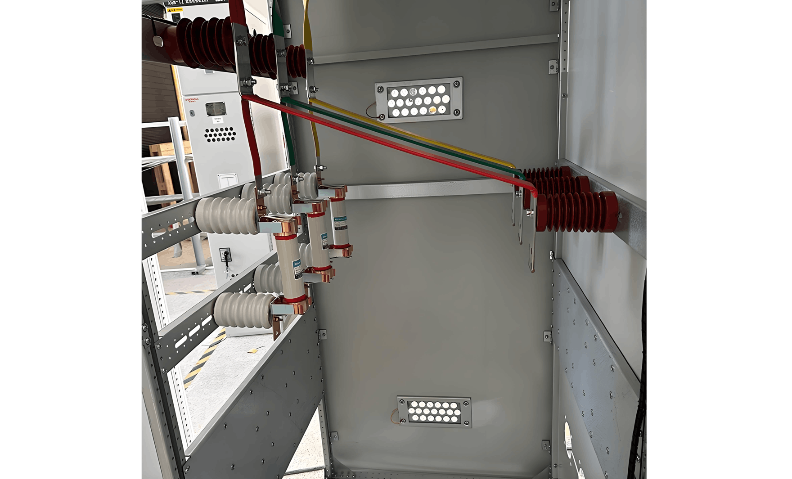

In indoor switchgear rooms, indoor load switches are key devices designed to meet the core requirements of "medium and low-voltage distribution, flexible control, and simplified protection." Their application centers on three primary scenarios: "circuit control, safety isolation, and fault coordination." The specific implementation methods and value are as follows:

1.Power Control Unit for Terminal Loads: Load switches are commonly used in branch circuits of low-voltage distribution panels within switchgear rooms (e.g., circuits supplying power to civil or industrial end loads such as building lighting, air conditioning units, elevators, and water pumps). They enable routine load switching operations—such as turning off certain lighting circuits during non-business hours in a mall or shutting down power to an auxiliary motor during factory maintenance. Due to their simple operating mechanism and reliable capability to interrupt load currents, load switches can replace more expensive circuit breakers in some applications, thereby reducing the overall cost of the distribution system and avoiding mechanical wear on circuit breakers caused by frequent operations.

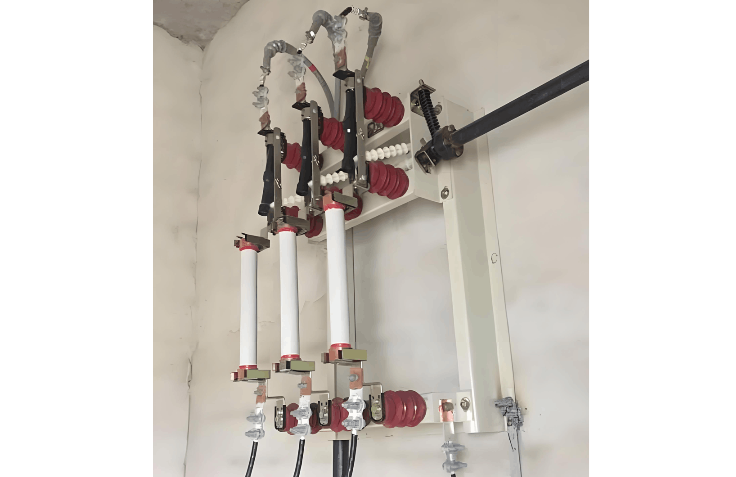

2. High-Voltage Side Protection for Distribution Transformers: In protection applications on the high-voltage side of distribution transformers (commonly found in indoor switchgear rooms for 10kV/0.4kV distribution transformers), indoor load switches are typically combined with fuses to form a "Load Switch + Fuse" assembly. The load switch handles the connection and disconnection of the transformer’s rated load current (e.g., normal operation during transformer energizing or de-energizing), while the fuse provides short-circuit protection. When a short-circuit fault occurs in the transformer, the fuse quickly blows and simultaneously triggers the load switch to trip, completely isolating the faulty circuit. Compared to using a circuit breaker alone, this combination simplifies protection configuration and reduces equipment footprint, making it better suited for the compact spatial layout of indoor switchgear rooms.

3. Safety Isolation Device for Maintenance: Additionally, load switches serve as safety isolation devices during maintenance. When a circuit in the switchgear room (e.g., a reactive power compensation circuit or a standby power circuit) requires maintenance, operating the load switch to open reliably cuts off the power supply to that circuit. This creates a clear visible break point (some load switches feature a visible disconnect), ensuring the safety of maintenance personnel and preventing electric shock hazards due to accidental energization. This function enhances the safety assurance in the "de-energize – isolate – maintain" workflow within the switchgear room.
