10kV SG(B) Environmentally Friendly Non-encapsulated Dry-Type Transformer

Name: 10kV SG(B) Environmentally Friendly Non-encapsulated Dry-Type Transformer
Brand: Wenzhou Rockwill Electric Co., Ltd.
SKU: 2643
Price: 1.99 USD
Availability: InStock

Wenzhou Rockwill Electric Co., Ltd.

17yrs 700++ staff 108000m²+m² US$150000000+ China

Wenzhou Rockwill Electric Co., Ltd.

17yrs 700++ staff 108000m²+m² US$150000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	ROCKWILL
Model NO.	10kV SG(B) Environmentally Friendly Non-encapsulated Dry-Type Transformer
Rated voltage	10kV
Rated frequency	50/60Hz
Rated capacity	1000kVA
Series	SG(B)

Product descriptions from the supplier

Description

Product overview

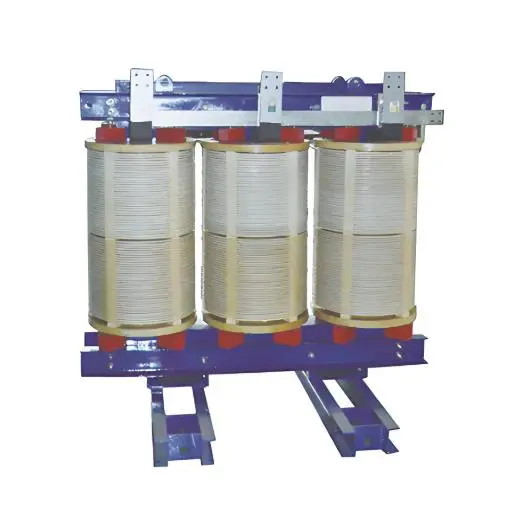

SG(B)10/11 series non-encapsulated dry-type transformer is a new generation of green and environment-friendly dry-type transformer with excellent weather resistance such as moisture resistance, salt fog resistance, safe and reliable operation at high temperature, low partial discharge, low noise, high heat dissipation efficiency and strong overload capacity. Most suitable for China's hydropower plant, thermal power plant, steel, chemical industry, mine high temperature, high pollution work area.

Product features

SG (B) 10/11 is based on DuPont NOMEX paper system and maintains excellent electrical and mechanical performance throughout the service life of the transformer. NOMEX paper is not easy to age, shrink resistant and anti compression, plus elastic strength, so it can ensure that the transformer is used for several years to keep the structure tight and can withstand the pressure of short circuit current.
H class insulation: dry transformer insulation rating is H grade. The temperature of heat resistance is 180℃. The product uses NOMEX paper as the main insulation material, its insulation grade has reached H level, and the key parts rank has reached C level.
Safety: SG (B) 10/11 products, all insulating materials do not support combustion, self extinguishing, non-toxic, and their combustible materials are less than 10% of epoxy casting products. There is almost no toxic smoke generated by long time combustion at 800℃ degree high temperature, thus overcoming the defect of large amount of toxic gas when the epoxy casting dry type transformer burns. The SG (B) 10/11 products are more superior to the subway, ship, chemical industry, smelting and so on on occasions with high safety requirements, damp heat and poor ventilation.
Reliable: special coil design, process and materials for SG (B) 10/11 products. The product has excellent performance (moistureproof, mildew proof, salt fog prevention), and can withstand heat shock. It has no cracking and has very little PD.
Environmental protection: SG (B) 10/11 products will not pollute the environment when they are manufactured, transported, stored or run. After the life period of the SG (B) 10/11, the product can be decomposed and recovered to meet the needs of the customers and overcome the defects of the epoxy pouring dry transformer because of the solidification and fusion of resin and glass wire, which can not be decomposed after the life period and pollute the environment. Type SG10 products are low noise and suitable for high density residential areas or other modern sites.
High overload capacity: SG (B) 10/11 product uses DuPont NOMEX paper as the main insulating material and uses it as a hybrid insulation system at the most hot spot of the transformer, reducing the volume and weight by 30% compared to the same capacity epoxy cast transformer.

Product model

S: Three-phase
G: Air Insulation
(B): Low-voltage Foil Winding
First □: Product Performance Code (10.11)
Second □: Rated Capacity (kVA)
Third □: Voltage Class (kV)

Performance Parameters - Technical Parameters of 10kV Class SG(B)10 Non-Encapsulated Dry-Type Transformer

Rated Capacity	Voltage Combination and Tap Range			Connection Group	No-load Loss (W)	Load Loss W at Different Insulation Thermal Levels		No-load Current %	Short-circuit Impedance %
Rated Capacity	High Voltage KV	Tap Range %	Low Voltage KV	Connection Group	No-load Loss (W)	F (120°C)	H (145°C)	No-load Current %	Short-circuit Impedance %
30	6 6.3 6.6 10 10.5 11	±5±2×2.5	0.4	Yyno Dyn11	180	740	790	2.3	4.0
50					250	1060	1140	2.2
80					330	1470	1570	1.7
100					360	1690	1830	1.7
125					420	1980	2120	1.5
160					490	2320	2480	1.5
200					580	2690	2880	1.3
250					660	3070	3300	1.3
315					780	3690	3970	1.1
400					890	4350	4640	1.1
500					1040	5160	5530	0.9
630					1200	6140	6560	0.9
630					1160	6330	6800	0.9	6.0
800					1370	7380	7900	0.9
1000					1560	8730	9420	0.9
1250					1810	10390	11140	0.9
1600					2400	12770	13650	0.9
2000					2700	15300	16540	0.7
2500					3150	18420	19720	0.7
1600					2400	13720	14690	0.9	8.0
2000					2700	16720	18060	0.7
2500					3150	19840	21330	0.7

Note: the above parameters are only for typical values, and can be customized according to customer requirements.

Implementation criteria: GB1094.11-2007, GB/T10228-2008, IEC60076-11

Performance Parameters - Technical Parameters of 10kV Class SG(B)11 Non-Encapsulated Dry-Type Transformer

Rated Capacity	Voltage Combination and Tap Range			Connection Group	No-load Loss (W)	Load Loss (W)	No-load Current (A)	Total Weight (kg)	Outline Dimensions (Length * Width * Height mm)	Track Gauge (mm)		Short-circuit Impedance %
Rated Capacity	High Voltage KV	Tap Range %	Low Voltage KV	Connection Group	No-load Loss (W)	Load Loss (W)	No-load Current (A)	Total Weight (kg)	Outline Dimensions (Length * Width * Height mm)	Lateral	Longitudinal	Short-circuit Impedance %
100	6 6.3 6.6 10 10.5 11	±5±2×2.5	0.4	Yyno Dyn11	320	1690	0.6	610	820 * 680 * 890	550 * 550		4.0
160					440	2280	0.6	860	1010 * 900 * 990	550 * 550
200					520	2710	0.5	1000	1040 * 900 * 1050	660 * 660
250					590	2960	0.5	1150	1060 * 900 * 1180
315					700	3730	0.5	1350	1120 * 1000 * 1180
400					800	4280	0.4	1600	1150 * 1000 * 1280
500					930	5230	0.4	2030	1160 * 1000 * 1280
630					1040	5400	0.3	2400	1340 * 1000 * 1280	820 * 820		6.0
800					1230	7460	0.3	2500	1390 * 1000 * 1290
1000					1400	8760	0.3	2980	1450 * 1100 * 1350
1250					1620	10370	0.25	3500	1480 * 1100 * 1450
1600					2160	12580	0.25	4180	1510 * 1100 * 1590
2000					2430	15560	0.2	5130	1780 * 1300 * 1600	1070 * 820
2500					2830	18450	0.2	6150	1830 * 1300 * 1900	1070 * 820

Note: the above parameters are only for typical values, and can be customized according to customer requirements.

Implementation criteria: GB1094.11-2007, GB/T10228-2008, IEC60076-11

Conditions of use

The elevation is less than or equal to 1000m,
Ambient temperature: -25℃ ~ +40℃ indoor type transformerOf air cooling and forced air cooling.
The protection level is IP00, IP20, IP23, etc.
Specific requirements may be designed according to the contract.
