15kV Indoor MV Digital Vacuum Circuit Breaker

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Schneider
Model NO.	15kV Indoor MV Digital Vacuum Circuit Breaker
Rated voltage	15kV
Rated normal current	2000A
Rated frequency	50/60Hz
Series	EvoPacT

Product Detail

Description：

The next generation, natively digital CB for panel builders and users of MV switchgear in Primary Distribution applications. Includes scalable connectivity, with integrated sensors, IoT and a HMI that enables remote digital operation from outside of the arc flash zone. Anticipate and detect abnormal conditions with 24/7 condition monitoring and best-in class interlocking for a safety first approach. Durable and designed for life, all compliant with latest industry cybersecurity standards.

EvoPacT medium voltage (MV) breakers are integrated with embedded sensors for proactive health monitoring, inside of SureSeT Metal-Clad switchgear, helping data and controls become visible locally or remotely for increased efficiency and reduced risk.

EvoPacT breakers are designed to be smaller and stronger, built for 26" wide sections for space savings, and increased mechanical testing for reliability. EvoPacT can be easily scaled and upgraded to accommodate your growing needs.

Product specifications：

Tested to 3X the industry standard, with 30,000 mechanical operations and a newly designed vacuum interrupter (tested to 30,000 operations at rated current)
IEEE/ANSI, UL/UR rated, and compliant with industry cybersecurity standards
EvoPacT digital circuit breakers work with your connected solutions. By collecting and analyzing performance data, you can optimize operations throughout your facility
EvoPacT’s comprehensive monitoring and control platform is accessible through a connected device and is compliant with industry cybersecurity standards
Designed to be modular, flexible, and easily upgraded, EvoPacT digital circuit breakers come in a scalable range of connectivity tiers, to fit your growing needs
Sensors, monitoring, and control features are easily scaled. Upgrading is a smooth process, available when your facility is ready
Green Premium certified, part of our commitment to deliver sustainable performance for our customers

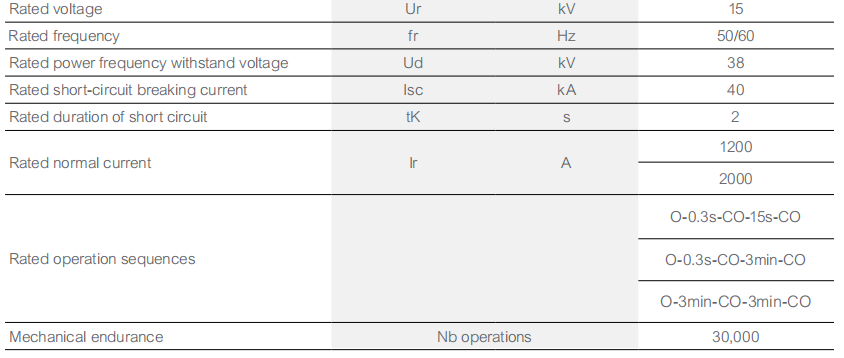

Technical Characteristics:
