19/33kV Medium Voltage Cables
Zhejiang Wone IT Service Co., Ltd.
1yrs +
staff 1000+m² US$300000000+
Key attributes
| Brand | Wone Store |
| Model NO. | 19/33kV Medium Voltage Cables |
| Rated voltage | 19/33kV |
| Rated frequency | 50/60Hz |
| Series | YJV |
Product descriptions from the supplier
Description
Description
Medium Voltage Cables refer to power cables designed for electrical systems with voltage ratings typically ranging from 1kV to 35kV. These cables play a critical role in distributing electricity from high-voltage transmission networks to end-users, serving as the vital link in urban power grids, industrial complexes, commercial buildings, and infrastructure projects. They balance efficient power transmission with installation flexibility, making them indispensable in modern electrical distribution systems.
Product Features
Parameters
Core Count |
Conductor |
Voltage |
Single Core |
Copper |
1.9/3.3kV |
3.8/6.6kV |
||
6.35/11kV |
||
12.7/22kV |
||
19/33kV |
||
Aluminium |
1.9/3.3kV |
|
3.8/6.6kV |
||
6.35/11kV |
||
12.7/22kV |
||
19/33kV |
||
Three Core |
Copper |
1.9/3.3kV |
3.8/6.6kV |
||
6.35/11kV |
||
12.7/22kV |
||
19/33kV |
||
Aluminium |
1.9/3.3kV |
|
3.8/6.6kV |
||
6.35/11kV |
||
12.7/22kV |
||
19/33kV |
||
Triplex |
Copper |
6.35/11kV |
12.7/22kV |
||
Aluminium |
6.35/11kV |
|
12.7/22kV |

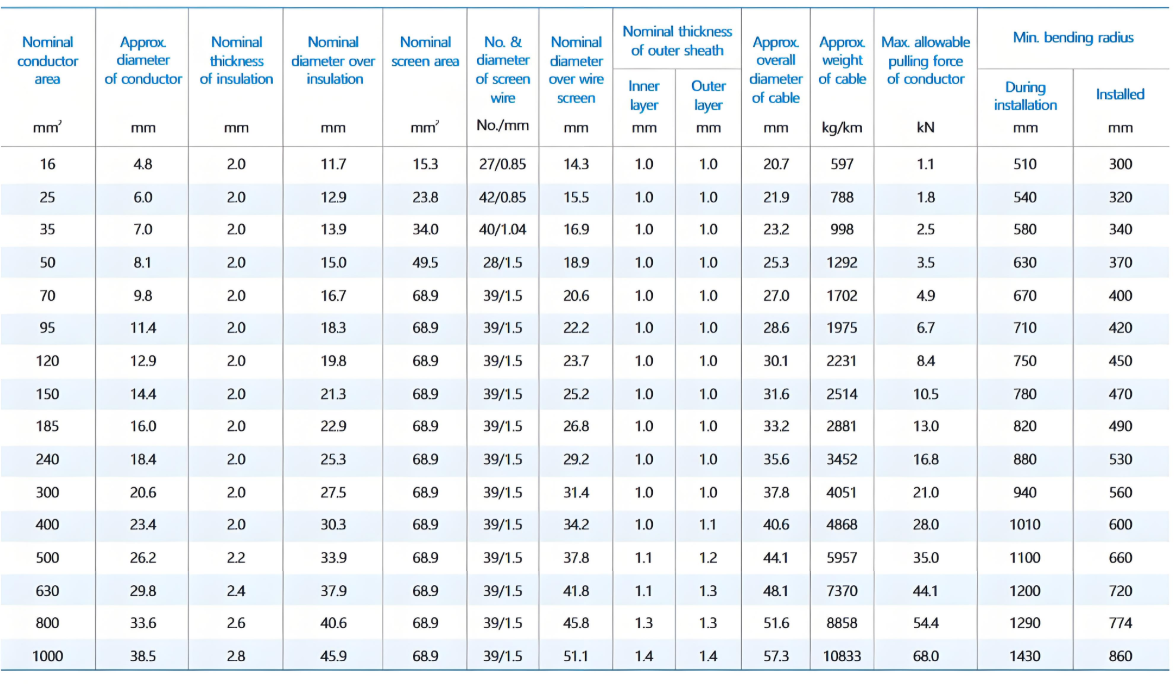

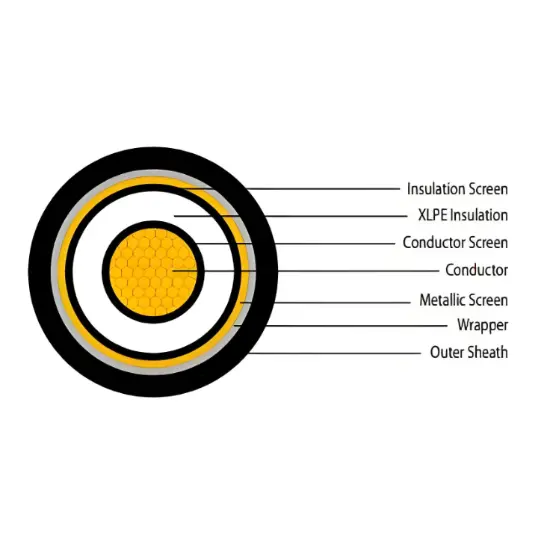

Structural Parameters

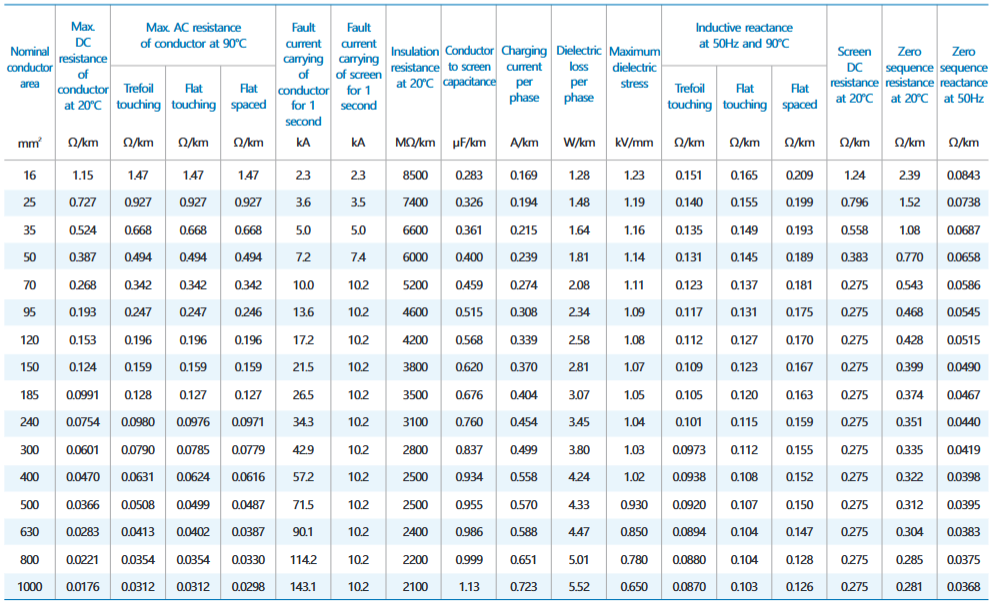

Electrical Characteristics

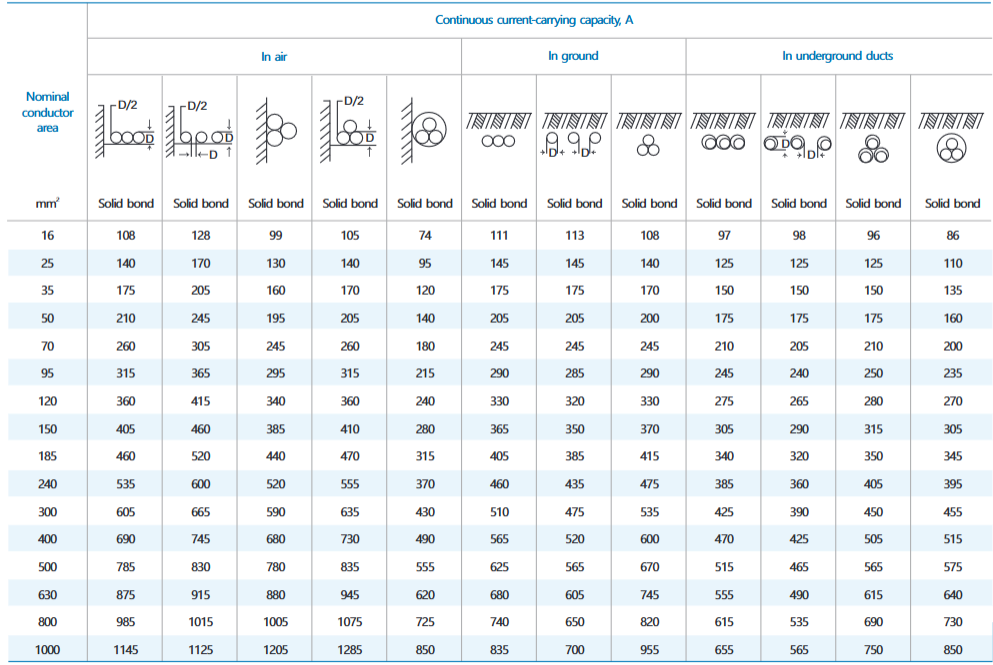

Current Ratings
