6kV 6.3kV 12.5kV 15kV Three-Phase Smart recloser/reclosure Source Manufacturer

  • 6kV 6.3kV 12.5kV 15kV Three-Phase Smart recloser/reclosure Source Manufacturer

Key attributes

Brand Schneider
Model NO. 6kV 6.3kV 12.5kV 15kV Three-Phase Smart recloser/reclosure Source Manufacturer
Rated voltage 15kV
Series PMSet U

Product descriptions from the supplier

Description

 Overview

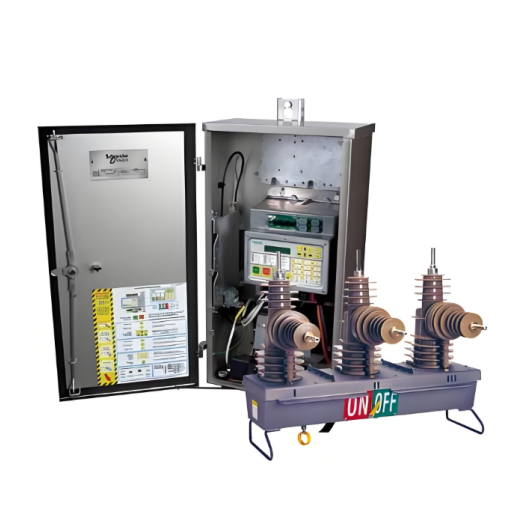

The circuit breaker is controlled and monitored by either the COMPACT or ULTRA PowerLogic ADVC Controller (ADVC). Enclosed in a stainless steel or mildsteel enclosure coated with zinc rich epoxy and special powder paint system PowerLogic ADVC provides an electronic controller with Operator Interface (O.I.) that monitors the circuit breaker and provides protection, measurement, control, and communication functions. Connected via a control cable, the switchgear and PowerLogic ADVC can form a remotely controlled and monitored

Function

  • Magnetic Actuator Operation: The switchgear is driven by a magnetic actuator for opening and closing actions. Controlled pulses from storage capacitors are sent to the actuator to enable switching. When closed, the switch is magnetically latched in position.

  • Integrated Sensing and Monitoring: The epoxy pole is molded with built-in Current Transformers (CTs) and dual Capacitive Voltage Transformers (CVTs), which are continuously monitored by the PowerLogic ADVC system for protection, remote monitoring, and status display.

  • Flexible Power and Interface Configuration: The control unit requires a 115/230 V AC auxiliary power supply, with an optional voltage transformer available for power supply where needed. Terminal nemapad connectors or optional cable clamps are provided. Optional surge arrester mounting brackets and a clearly visible external pointer for contact position indication are available.

  • Safe Manual Trip and Interlocking: Equipped with a manual trip lever operable from ground level, which simultaneously opens and locks out the switch. The lever position is communicated to the PowerLogic ADVC via a micro-switch and electronically interlocks both local and remote closing operations.

  • Intelligent Interface and Safety Isolation: The PowerLogic ADVC connects to the switchgear via a control cable linked to the Switch Cable Entry Module (SCEM). The SCEM stores calibration data, ratings, and operation counts, and provides electrical isolation with shorting circuits to automatically short CTs and CVTs if the control cable is disconnected while the switchgear is energized.

Recloser Specifications

The voltage classes of some of these Automatic Reclosers include 6kV, 6.3kV, 6.6kV, 6.9kV, 7.2kV, 10kV, 10.5kV, 11kV, 11.5kV, 12kV, 13.2kV, 13.8kV, 14.5kV, 14.4kV, 15kV, 15.5kV, 15.6kV, 17.5kV, 20kV, 21.9kV, 22kV, 24kV, 30kV, 33kV, 33.5kV, 34.5kV, 35kV, 36kV, 38kV, 38.5kV, 40.5kV, 44kV, 45kV, 46kV, 66kV and 69kV. Rated Short-Circuit Breaking Current includes 8kA, 12.5kA, 16kA, 20kA, 25kA, 31.5kA and customization is available.

PMSet U-Series Range

15 kV  12.5 kA

Rated Maximum Voltage

15.5 kV

Rated Continuous Current

630 A

Fault Make Capacity (rms)

12.5 kA

Fault Make Capacity (Peak)

32.5 kA

Power Operating Time (Close/Open)

0.1/0.05 s

Mechanical Operations

10,000

Rated Full Load Operations

10,000

Short time Current

12.5 kA

Breaking Capacity


Mainly Active (0.7 pf)

630 A

Fault Break Capacity

12.5 kA

Cable Charging

Up to 25 A

Line Charging

Up to 5 A

Lightning Impulse Withstand Level


Phase to Earth

110 kV

Across VI Contacts

110 kV

Power Frequency Withstand Voltage


Phase to Earth

50 kV

Across Interrupter

50 kV


Service Conditions


Ambient Temperature (°C)⁽¹⁾

-40 to 55

Ambient Temperature (°F)⁽¹⁾

-40 to 122

Radiation (Max.)

1.1 kW/m²

Humidity

0–100%

Altitude meters (Max.)⁽²⁾

3000

Altitude feet (Max.)⁽²⁾

9840

Net Weights


Circuit breaker with pole mount bracket (kg/lbs)

118/261

Control cubicle with control cable (kg/lbs)

41/90

Gross Weight of crate (kg/lbs)

263/580

Crate Dimensions


Width (mm/in.)

965/37.9

Depth (mm/in.)

1150/45.2

Height (mm/in.)

1140/44.8

ADVC Overview

Advanced protection, data logging, and communications capabilities are made possible by the technology housed inthe PowerLogic ADVC. It has been designed especially for outdoor pole mounted operation and is typically mounted low on the pole for ease of access by operation personnel.

ADVC Functions
With a cubicle designed to minimize temperature rise from solar heating, the stainless steel or mildsteel enclosure, or enclosed in a mild steel enclosure coated with zinc rich epoxy and special powder paint system is used to mount the Control and Protection Enclosure (CAPE), Power Supply Unit (PSU),customer accessories, and Operator Interface.The PowerLogic ADVC Series incorporates the functions of a multi-function protection relay, a circuit breaker controller, a metering unit, and a remote terminal unit.Batteries are carefully located underneath these modules to help avoid overheating so that a battery life of up to 5 years(1) can be achieved. A vandal resistant lockable stainless steel or mild steel door, sealed with a rubber gasket,provides access to the operator interface. Vents are screened against verminentry and the electronic parts are enclosed in a sealed die-cast enclosure which helps protect them from the entry of moisture and condensation for a long lifetime.
The COMPACT cubicle is suitable for temperatures from -10 to 50 °C, while the option of a battery heater in the ULTRA extends its operating temperature range from -40 to 50 °C.A built-in microprocessor controlled power supply provides uninterrupted operation of not only the circuit breaker and controller, but also the communications radio or modem. These accessories are connected to a built-in user programmable radio power supply. Therefore, no other power supplies are required for connection into your SCADA or Distribution Automation System.Due to careful design the efficiency of the parts is high, allowing a lead-acid battery hold-up time of up to 46 hours(2). The LiFePO4 Battery of the controller can offer 43 hours of hold up time(3).The architecture used has the advantage that the circuit breaker operation is independent of the high voltage supply, relying on a set of capacitors charged by the auxiliary supply.Due to sophisticated power supply management techniques, a circuit breaker operation will operate when attempted, and alarms are raised over the telemetry when auxiliary power is lost. Communications equipment can be mounted within the PowerLogic ADVC cubicle. RS-232 and Ethernet TCP/IP are provided asstandard to support your communications needs.

ADVC Specifications

The PowerLogic ADVC series is available in two models:
ULTRA
COMPACT
The following table outlines some of the differences between the two models:

Description

ULTRA

COMPACT

Enclosure

Stainless steel or mild steel coated with Zinc rich epoxy and special powder paint system.

Stainless steel or mild steel coated with Zinc rich epoxy and special powder paint system.

Door locking

Three-point

Two-point

Customer accessory tray

Side trayUpper tray

Side tray only

Input/Output modules

8 inputs, 8 outputsOptional

N/A

Battery heater

Optional

N/A

Battery (2 x 12 V Lead Acid option)

7.2 Ah or 12 Ah

7.2 Ah

Battery (1 x 24 V LiFePO4 option)⁽¹⁾

10 Ah

N/A

Temperature range (Lead Acid battery option)

-40 to 50 °CWith battery heater option

-10 to 50 °C

Temperature range (LiFePO4 battery option)⁽²⁾

-20 to 50 °CWith battery heater option

N/A

Auxiliary power supply

115/230 Vac

115/230 Vac

Dual AC power supply

Optional

N/A

VT power via switchgear

Optional

Optional

(1) LiFePO4 battery option is available only in ultra version of PowerLogic ADVC.

(2) PowerLogic ADVC with LiFePO4 batteries are suitable for environment with ambient temperature in the range of -20 to 50 °C.
