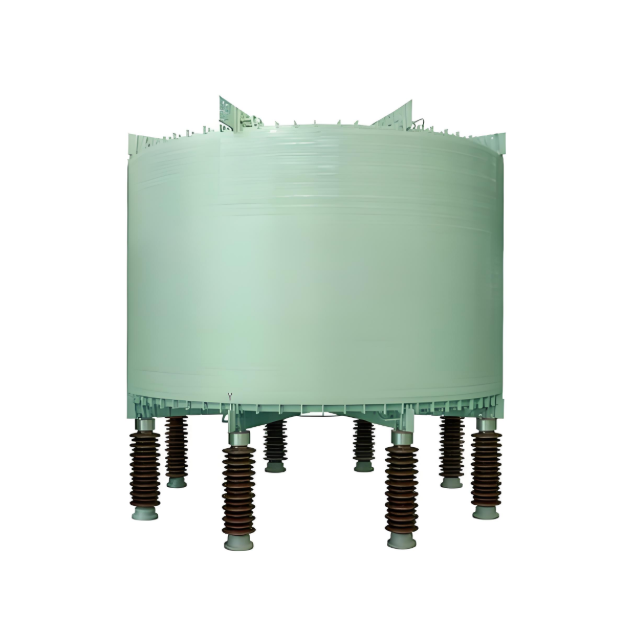

Product Overview

Product model: CKD(S)CKL-XX (rated capacity)/XX (voltage level)-XX (reactance) Example: CKSCKL-7200/35-12.Main application fields: power plants, power stations, industrial and mining enterprises, user distribution stations and other power systems at 66kV and below.

Product superiority

Suitable for power systems at 66kV and below, with a rated current range of 100~8,000A, a noise level below 58dB, and F (H) insulation class, for both indoor and outdoor application. Widely applied in power plants, power stations, industrial and mining enterprises, and user distribution stations.
The product features good inductive linearity, precise inductance value, low losses, uniform temperature distribution, high insulation strength, high mechanical strength, low partial discharge, low noise, small size, light weight, moisture-proof, flame-retardant, strong overload capability, high reliability, no pollution, maintenance-free, and good environmental performance, which can save energy and improve the operational stability and reliability of the power system.

Product-related parameters

• Single-phase Rated capacity: 10~10,000kvar

• Rated current:100~8,000A

• Rated Voltage: 66kV and below

• Noise level: ≤56dB

• Insulation class: F (H)

• Application: both indoor and outdoor
