Blade type controller
Key attributes
| Brand | RW Energy |
| Model NO. | Blade type controller |
| Rated voltage | 24V |
| Product edition code | Plus edition |
| Series | XSF5 |
Product descriptions from the supplier

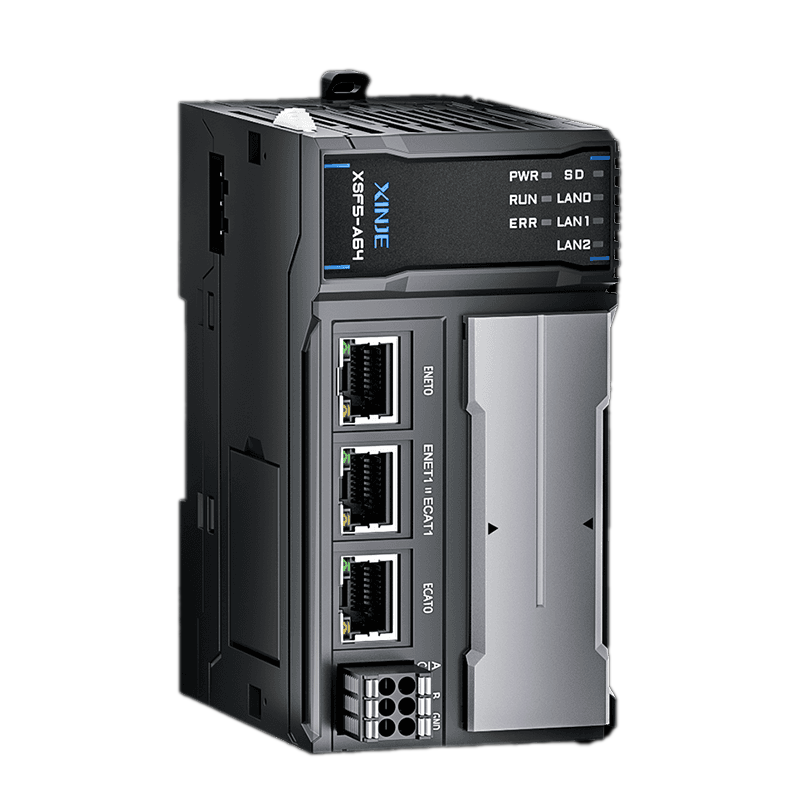

XSF5 series Adopting a blade structure design, it has a compact body, complieswith PLCopen programming specifications, supports 6 programminglanguages,and can be locally expanded up to 32 modules.

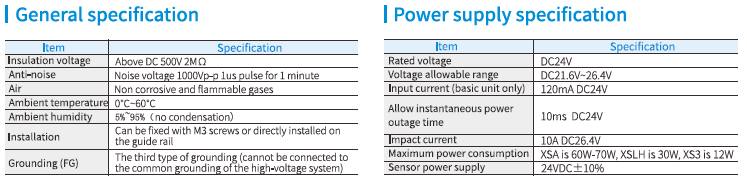

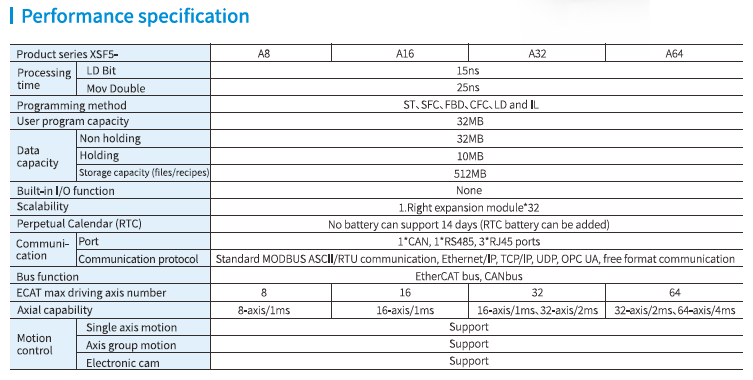

configuration
32MB program capacity
Support up to 32 localextensions
EtherCAT motion control
EtherCAT remotelO
Ethernet/lP communication
CAN buS
Features
Blade structural design, achieving slim body
Compared with XDH-60A64-Ethe body size is reduced by 70%significantly reducing installation space.
2. Easy to debug and maintain
The entire XSF series products,including the main control unit andexpansion unit, support firmware self updating, and new features areavailable with just one click.
Equipped with Type-C port,it can connect to the upper computer, andonline debugging only requires a mobile data cable.
Support importing and exporting device data and project files through USB flash drives and TF cards.
Standard svstem slide switch, which can immediately stop PLC operationwithout power outage.
3.Flexible and open, free programming
XSF supports the Codesys platfomm, can be adapted to Xinje XS Studioprogramming software, meets the lEC61131 standard and PLCopen programming specification.
4. Multiple networks union, convenient interwork
The XSF main control unit is equipped with 3 RJ45 ports,1 CAN communication port,and 1 RS485 port.
Supports multiple protocols, including Mdbus TCP, UDP, OPC UA,TCP/IP, Ethemet/IP, CANopen, and Modbus communication.
Support dual IP settings,achieve isolation between internal andexternalnetworks ofequioment,and assist in the digitaltransformation of factories.
5.More powerful scalability
Up to 32 XF extension modules can be connected locally.
The new high-speed backplane bus allows for the expansion of functional modules such as high-speed counting, pulse output, flying shooting, and communication.
XSF5 supports up to 32 local XF expansion modules, which are connected to dedicated modules such as high-speed counting, pulse output, and snapshot through a high-speed backplane bus for flexible and efficient expansion.
A: XSF5 adopts an innovative blade structure, which reduces the volume by about 70% compared to XDH-60A64, greatly saving installation space and suitable for high-density deployment scenarios.
Yes, it is. The XD series supports external SD cards for data recording and can be extended with analog, temperature, communication, and other functions through the right expansion module, BD board, and left expansion module.
Yes, it is. XSF5 is based on the CODESYS software platform, complies with the IEC 61131-3 standard, supports 6 programming languages (LD, IL, ST, FBD, SFC, CFC), and is compatible with the Xinje XS Studio development environment.
