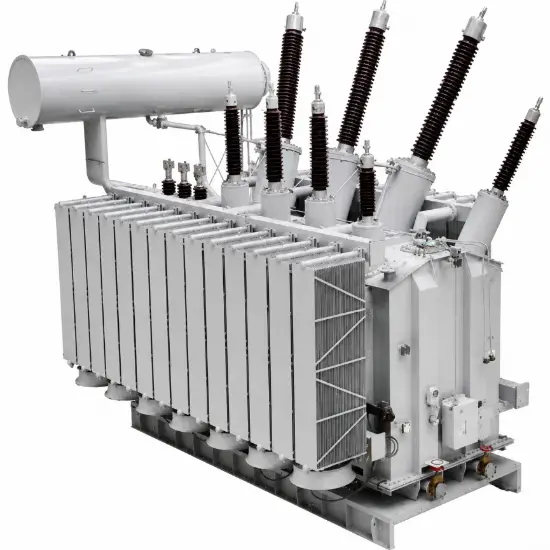

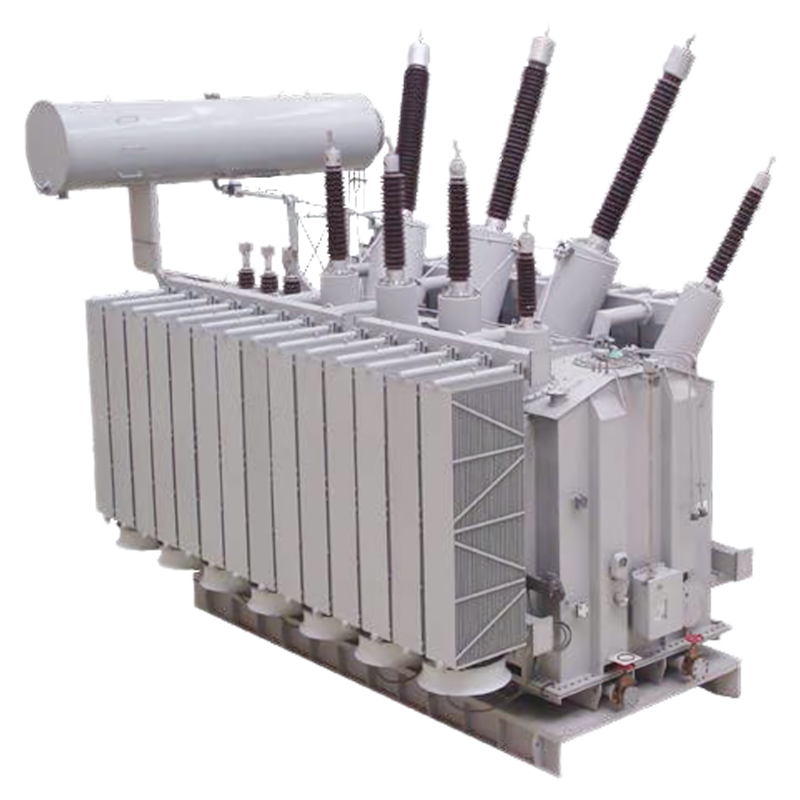

Customization 220kV 225kV 230kV 245kV Class oil-immersed three-phase Power transformer
Key attributes
| Brand | ROCKWILL |
| Model NO. | Customization 220kV 225kV 230kV 245kV Class oil-immersed three-phase Power transformer |
| Rated capacity | 240000kVA |
| Primary voltage | 230kV |
| Secondary voltage | 6.3kV |
| Methods of regulation | On Load Voltage Regulating |
| Winding type | Double Winding |
| Series | SF/SFS Series |
Product descriptions from the supplier
Overview
As a pioneer in China's power transformer industry, we have specialized in the R&D and manufacturing of power transformer equipment for decades, and established industry standards with core technologies.
Premium Durability: Superior insulation and mechanical resilience allow for extended system life and overall system reliability.reducing the frequency of outages.
Certified Quality: Oil-immersed power transformers are manufactured, tested and delivered in our accordance with all applicable standards (ANSI, IEEE) maintaining US compliance which simplifies service and retrofitting.
Energy Efficient: Designed to accommodate heavier base loading for extended periods of time with low energy loss and minimal partial discharge for optimized energy savings.
This power transformer is fully compliant with international standards including IEC 60076-1, IEEE C57.12.00, ANSI C57.12.90, AS/NZS 60076.5 and EN 61558-1. It meets quality requirements and is widely adaptable to the operational needs of power grids in multiple overseas regions.
The voltage classes of some of these Power Transformer include 6kV, 6.3kV, 6.6kV, 6.9kV, 7.2kV, 10kV, 10.5kV, 11kV, 11.5kV, 12kV, 13.2kV, 13.8kV, 14.5kV, 14.4kV, 15kV, 15.5kV, 15.6kV, 17.5kV, 20kV, 21.9kV, 22kV, 24kV, 30kV, 33kV, 33.5kV, 34.5kV, 35kV, 36kV, 38kV, 38.5kV, 40.5kV, 44kV, 45kV, 46kV, 66kV 69kV.72.5kV 88kV 110kV 115kV 123kV 125kV 126kV 132kV 138kV 145kV 150kV 154kV 161kV 170kV 220kV 225kV 230kV 245kV 275kV 330kV 345kV 363kV 380kV 400kV 500kV Power transformers of voltage ，and aboveand customization is available.
Feature
Multi-voltage Level Customization for Diverse Power Grid Scenarios：Supports full-range voltage level customization of 220kV/225kV/230kV/245kV, which can accurately meet the access requirements of different power systems such as thermal power plants, substations, large-scale industrial bases, and wind-solar new energy grid connection.
High-efficiency and Energy-saving Design to Reduce the Whole Life Cycle Cost：Adopts high-grade silicon steel sheet core and optimized winding structure, reducing no-load loss by 15-20% and load loss by 8-10% compared with traditional models; complies with IEC/ANSI international energy efficiency standards, significantly cutting down annual power consumption and long-term operation and maintenance costs.
Superior Stability and Reliability to Extend Equipment Service Life：Equipped with hybrid insulating oil technology, which extends the service life of insulating paper to 1.91 times that of the mineral oil-only solution; the fully sealed corrugated oil tank isolates air contact to prevent oil oxidation and deterioration, enabling stable operation for more than 30 years; passes the IEC 60076-5 short-circuit withstand test, capable of withstanding 32 times the rated current impact, with outstanding fault resistance performance.
Optimized Thermal Management System to Ensure High-load Operation Stability：Adopts optimized oil flow distribution structure and axial oil duct design, effectively reducing the winding hot-spot temperature and ensuring the continuous and stable operation of equipment under high-load conditions; the vacuum oil filling + closed-loop hot oil circulation process thoroughly removes moisture in the oil, improving insulation performance and heat dissipation efficiency.
Operating condition
1.working temperature：-30℃~40℃
2.Relative humidity: ＜90% (25℃)
3.No corrosive gas, no obvious dirt, etc.
4.Altitude: ＜1000m
Applications:
The 220kV power transformers that are used in high-voltage transmission substations, large industrial facilities, and renewable energy projects to efficiently step up or step down power for long-distance distribution. They also support urban substations and critical infrastructure, ensuring stable electricity supply for national grid.
If you need to know about more parameters , Please check the model selection manual.↓↓↓
