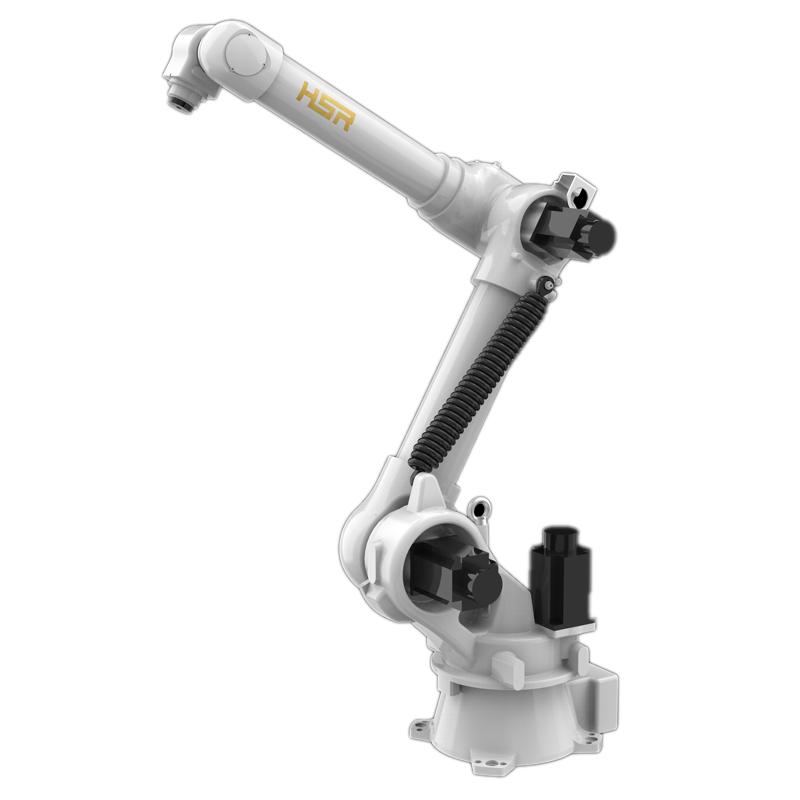

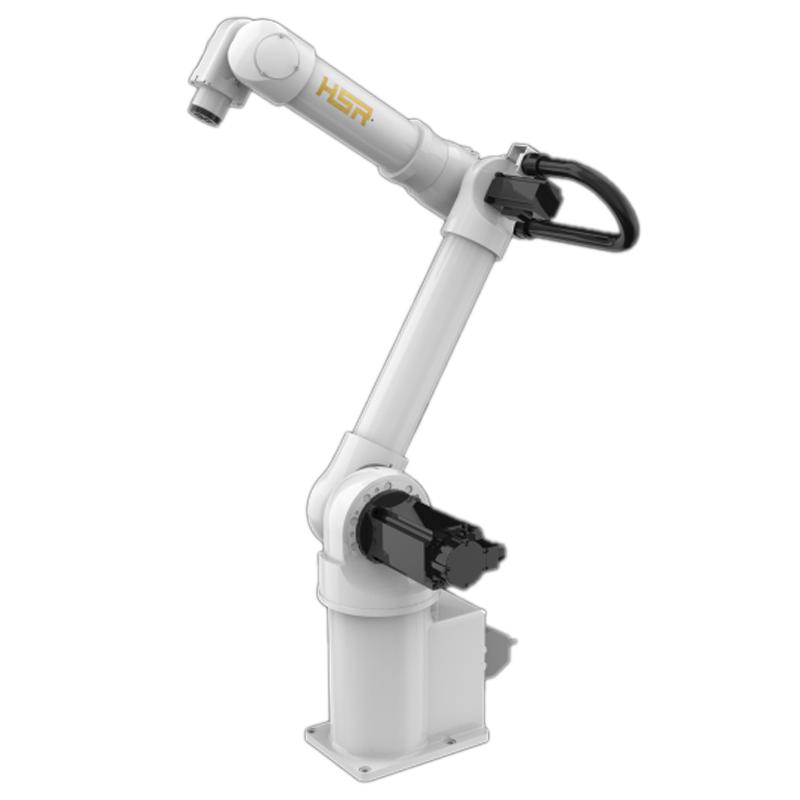

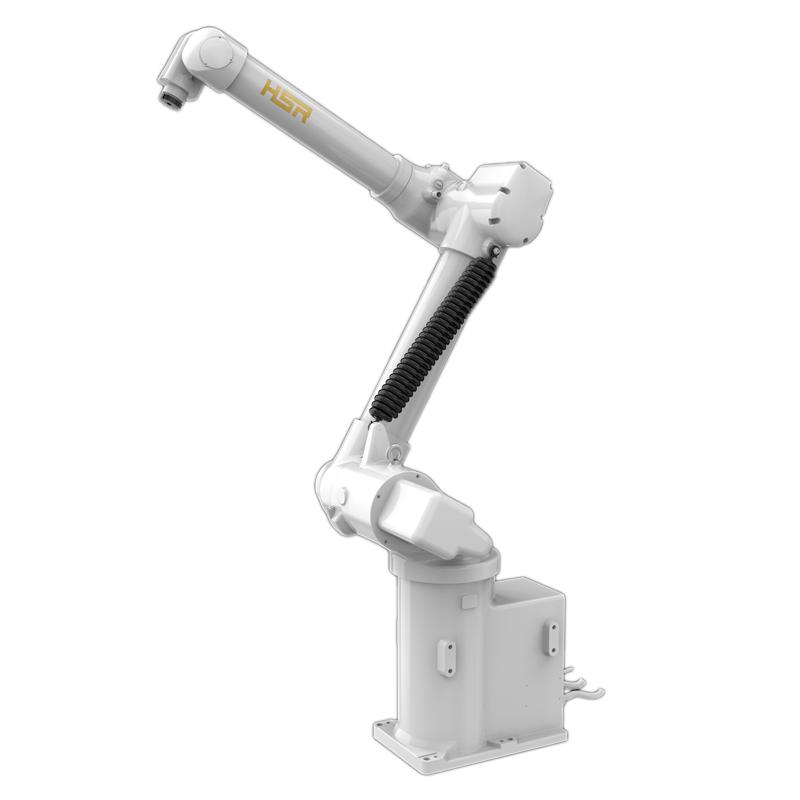

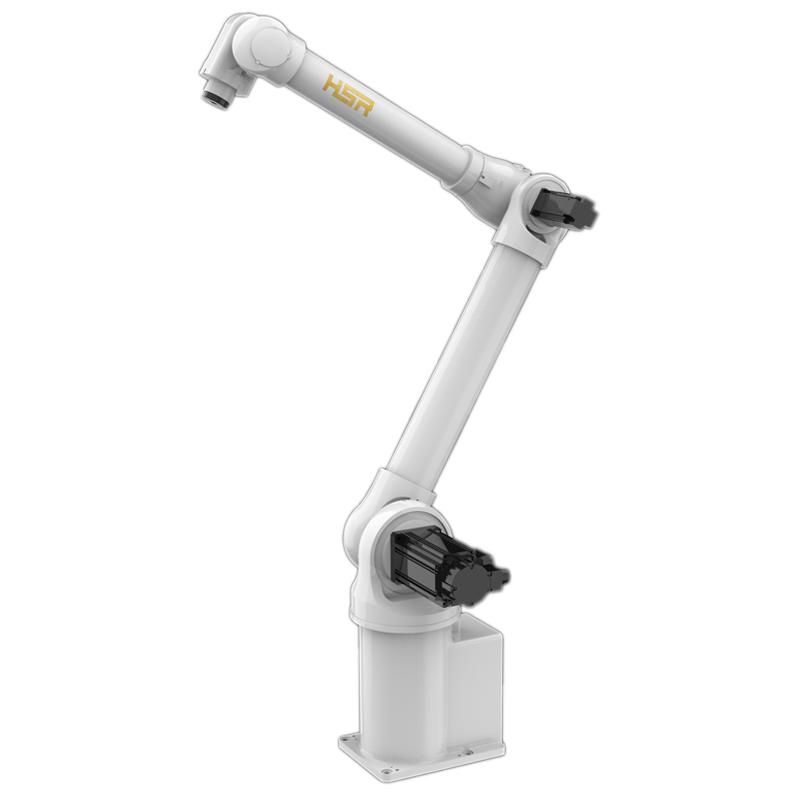

Double-Spin Robot
Key attributes
| Brand | Wone Store |
| Model NO. | Double-Spin Robot |
| Rated Load Capacity | 25kg |
| degree of freedom | 6-direction |
| Maximum working stroke | 1850mm |
| Series | BR |
Product descriptions from the supplier
BR series double-spin robot, the first domestic double-spin mode and structure, is a model for domestic industrial robots to build core competitiveness through innovation. According to the market characteristics of domestic 3C industry roughneck center, stamping robots are mostly used for small pieces of high-speed stamping. In order to meet the needs of such applications, a vertical multi-joint high-speed robot is specially developed, and the concept of double rotation is proposed for the first time, which can not only realize all the functions (external rotation) of a standard general six-axis robot, but also rotate from within itself (internal rotation).
Key features：
Independent double-spin structure
The five-axis wrist assembly adopts bevel gear transmission to realize the external bias of the six-axis end joint assembly relative to the small arm assembly, and the sixth axis cable passes out from the wrist joint and is supported by the cable bracket into the six-axis end joint, thus realizing the five-axis large-scale movement over the line.
Design of Large Range Motion Over-line
The five-axis wrist assembly adopts bevel gear transmission to realize the external bias of the six-axis end joint assembly relative to the small arm assembly, and the sixth axis cable passes out from the wrist joint and is supported by the cable bracket into the six-axis end joint, thus realizing the five-axis large-scale movement over the line.
Small footprint design
The internal rotating structure is specially designed for CNC high-speed driller center and fast punching machine, which can easily realize the connection or handling between stations in a narrow space within 800 of the spacing between driller centers, easily avoiding and with the fastest speed. Stamping application station handling covers only the base area.
multiple perception
BR double-rotation robot has a multi-dimensional sensor with multi-modal perception of the safety of industrial robots, but also added intelligent language interaction, drag teaching, safety monitoring and other functions, to achieve a human and robot, the environment between the communal interaction, while industrial robots with high speed, high precision, high load, strong reliability characteristics.
Technology Parameters
| Industrial robots | BR610-1300 | BR612-1100 | BR616-1600 | BR625-1900 | |
| Degrees of freedom | 6 | 6 | 6 | 6 | |
| Maximum load | 10kg | 12Kg | 16Kg | 25kg | |
| Maximum working radius | 1310mm | 1100mm | 1600mm | 1849.5 | |
| Repeat positioning accuracy | ±0.05 mm | ±0.05mm | ±0.05mm | ±0.05mm | |
| Range of motion | J1 | ±155° | ±155° | ±154° | ±155° |
| J2 | -178° / -2° | -178°/-2° | -178°/-2° | 178°/- 2° | |
| J3 | +120°/+420° | +120°/+420° | +103°/+437° | +128°/ +412° | |
| J4 | ±190° | ±360° | ±360° | ±360° | |
| J5 | ±165° | ±161° | ±161° | ±131° | |
| J6 | ±360° | ±360° | ±360° | ±360° | |
| Maximum speed | J1 | 360°/s, 6.28 rad/s | 360°/s，6.28rad/s | 236°/s，4.12rad/s | 233°/ 4.06 rad/s |
| J2 | 250°/s, 4.36 rad/s | 250°/s，4.36 rad/s | 217°/s，3.78 rad/s | 235°/ 4.10 rad/s | |
| J3 | 360°/s, 6.28 rad/s | 360°/s，6.28rad/s | 357°/s，6.23rad/s | 285°/ 4.97 rad/s | |
| J4 | 480°/s, 8.38 rad/s | 480°/s，8.38 rad/s | 443°/s，7.72 rad/s | 487°/ 8.49 rad/s | |
| J5 | 360°/s, 6.28 rad/s | 360°/s，6.28 rad/s | 360°/s，6.28 rad/s | 487°/ 8.49 rad/s | |
| J6 | 450°/s, 7.85 rad/s | 450°/s，7.85 rad/s | 450°/s，7.85 rad/s | 487°/ 8.49 rad/s | |
| Allowing for the moment of inertia | J6 | 0.39 kgm3 | 0.52kgm3 | 0.26kgm3 | 1.43 kgm3 |
| J5 | 0.42 kgm3 | 1.5kgm3 | 1.2kgm3 | 2.65 kgm3 | |
| J4 | 0.42 kgm3 | 1.1kgm3 | 1.04kgm3 | 2.42 kgm3 | |
| Allowable Torque | J6 | 14Nm | 20.3Nm | 14.4Nm | 38.7Nm |
| J5 | 20.4Nm | 42Nm | 43Nm | 77.5Nm | |
| J4 | 20.4Nm | 36Nm | 40Nm | 57.5Nm | |
| Applicable Environment | Temperature | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C |
| Humidity | 20% to 80% | 20%～80% | 20%～80% | 20% to 80% | |
| Other | Avoid contact with flammable, explosive, or corrosive gases and liquids, and keep away from sources of electronic noise (such as plasma). | Avoid contact with flammable, explosive, or corrosive gases and liquids, and keep away from sources of electronic noise (such as plasma). | Avoid contact with flammable, explosive, or corrosive gases and liquids, and keep away from sources of electronic noise (such as plasma). | Avoid contact with flammable, explosive, or corrosive gases and liquids, and keep away from sources of electronic noise (such as plasma). | |
| Teaching device cable length | 8m | 8m | 8m | 8m | |
| Body-to-cabinet connection cable length | 3m | 6m | 6m | 6m | |
| I/O parameters | Digital inputs: 32-bit (NPN), 32-bit outputs (NPN) | Digital inputs: 32-bit (NPN), 32-bit outputs (NPN) | Digital inputs: 32-bit (NPN), 32-bit outputs (NPN) | 32 - bit input (PNP), 30 - bit output (NPN) | |
| Body-prepared signal cable | 12-pin (connected via aviation connector) | 12-pin (connected via aviation connector) | 12-pin (connected via aviation connector) | 24 - bit (connected via aviation connector) | |
| Reserved air circuit | 1xφ6 | 1xφ8 | 1xφ8 | 2xφ8 | |
| Power capacity | 2.55kVA | 2.8kVA | 2.8kVA | 6.5kVA | |
| Rated power/voltage/current | 2.04 kW / Single-phase AC 220V / 11.6 A | 2.23kW/single-phaseAC220V /12.1A | 2.69kW/single-phaseAC220V /15.3A | 5.2kW / 3 phase / 380V / 10A | |
| Enclosure/Electrical Cabinet Protection Rating | IP54 (arm IP67) / IP53 | IP54 (arm IP67) / IP53 | IP54 (arm IP67) / IP54 | IP54 (front -end IP67)/ IP53 | |
| Installation method | Ground, inverted, and side-mounted installations | Ground, inverted, and side-mounted installations | Ground, inverted, and side-mounted installations | Ground, inverted, and side-mounted installations | |
| Body/Electrical Cabinet Weight | 61kg/15kg | 65kg/15kg | 12.4kg/47kg | 210kg/66kg | |
