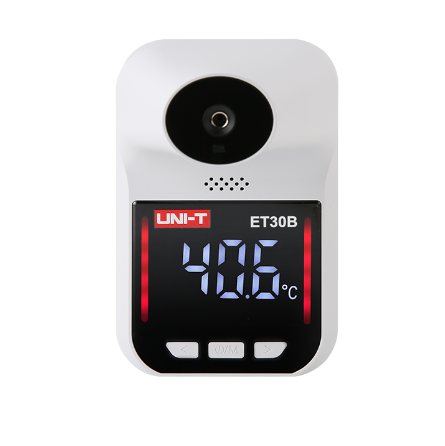

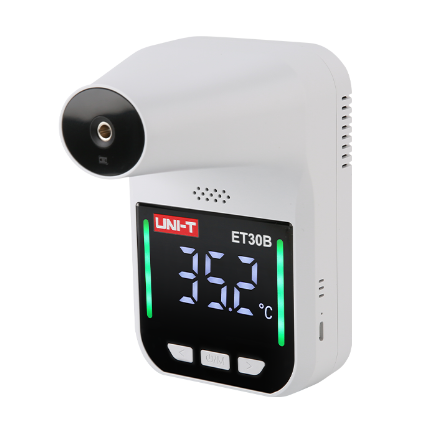

ET30B Non-Contact Infrared Thermometer
Key attributes
| Brand | Wone |
| Model NO. | ET30B Non-Contact Infrared Thermometer |
| External dimensions | 107mm×75mm×80mm |
| language | 4 |
| Series | ET30B |
Product descriptions from the supplier
Description
ET30B thermometer is a non-contact thermometer, the design is small and easy to carry, the temperature measurement response time is fast, the accuracy feedback, avoiding waiting in line, non-contact design, personnel are safer, 118 groups of data storage, real-time viewing, widely used in, school gate, factory gate, supermarket door, subway station door, taxi back seat, etc
Industry applications
The principle of infrared transmission of numbers is used to sense the surface temperature of objects, which is more convenient to operate, especially for the measurement of high-temperature objects. It is widely used, such as steel casting, furnace temperature, machine parts, glass, room temperature, body temperature and other surface temperature measurement.
Features
Multi-Chinese Alarm (English, Italian, Korean, Spanish, Japanese, Vietnamese, Cambodian, Malay, Indonesian, Arabic, Thai, Polish, Chinese).
Data storage (display of measured temperature).
Rapid temperature measurement (temperature units can be switched between Celsius and Fahrenheit).
Non-contact temperature measurement.
Multiple power supply methods.
Dual mounting.
Volume adjustment (adjustable volume).
You can set it to shut it down.
Multiple languages are adjustable.
Temperature alarm setting (alarm temperature can be customized).
Technical parameters
| Model | ET30B |
| precision | ±0.2°C (measured after 30 minutes of placement) |
| Alarm function | Automatic alarm for abnormality, flash + sound alarm for about 5 seconds |
| Measure distances | 1cm-10cm automatic measurement |
| Ambient temperature | 0°C-50°C (15°C-35°C recommended) |
| Measuring range | 32°C-42°C (Body Surface Measurement Mode) |
| Response time | 0.5s |
| Data storage | It supports 118 sets of measurement data storage, review and clearing |
| Iisplay | Digital display |
| Interface | Micro USB |
| power supply | USB power supply, lithium battery power supply, No. 5 dry battery power supply |
| Installation method: | The tripod is fixed and the hanging hole is mounted |
| language | Available in 16 languages |
size |
145mm×95mm×110mm |
Product show
