Integrated Intelligent Power Capacitor

Application

This series of integrated intelligent power capacitors is a safe, reliable, high-efficiency and energy-saving installation installed in the reactive power compensation device. Its function is to reduce the transformer loss, the line loss of the power supply line, improve the power factor of the power system and improve the grid power The core component of a new generation of high-quality reactive power compensation equipment. It can also be used as a small compensation device with independent automatic control function.

The product is composed of: measurement and control unit, capacitor switching switch and arc extinguishing unit, comprehensive protection unit (with: system harmonic voltage/current limit, overvoltage/undervoltage, small current blocking, compensation for branch overcurrent and unbalance , Pre-warning and protection functions of data information such as over-temperature and over-pressure inside the capacitor), working status indicator unit, low-voltage parallel capacitor (up to 8 capacitors), circuit breaker, housing and communication terminals and other functional components, which are formed after optimized combination A highly intelligent product with integrated mechatronics.

The application of this product has changed the bulky and cumbersome structure and assembly process of the traditional reactive power compensation device, so that a new generation of low-voltage reactive power compensation device has: better compensation effect, smaller size, lower power consumption, and more use Flexibility, easier assembly and maintenance, higher operational reliability, longer service life, etc.

Main Technical Data

Environmental conditions

Ambient temperature: -25/B (-25~45°C);

Relative humidity: RH≤90%, (at 40°C);

Altitude: ≤2000M;

Surrounding environment: no chemical corrosive gas, no conductive dust,

no flammable and explosive media;

Installation location: no severe vibration, no rain and snow erosion;

Power condition

Rated voltage: ~220V/~380V;

Voltage deviation: ±20%;

Voltage waveform: sine wave, total distortion rate <5%;

Power frequency: 47～53Hz;

Power consumption: <0.5W

Communication interface: RS-485, MUDBUS communication protocol,

9600bps (no parity bit)

Electrical Safety

Electrical clearance and creepage distance, insulation strength, safety protection,

short-circuit strength, sampling and control circuit protection are in line with the

requirements of the corresponding clauses in the People&rsquo;s Republic of China

Electric Power Industry Standard DL/T842-2003 "Technical Conditions for the Use

of Low-Voltage Shunt Capacitor Installations".

Scope of use

Voltage: (within 80～120% of rated voltage range);

Current: (within the range of 20%~120% of rated current);

Reactive power compensation parameters

Capacitor switching time interval: 1-240s;

Reactive power capacity: up to 6/8 channels per unit, up to 30kvar; a total of

supplementary points and mixing.

Reliability parameter

Control accuracy: 100%;

Allowed switching times: 1 million times;

Attenuation rate of capacitor capacity running time: &le;1%/year;

Capacitor capacity switching attenuation rate: &le;0.1%/10,000 times;

Annual failure rate: &le;0.1%.

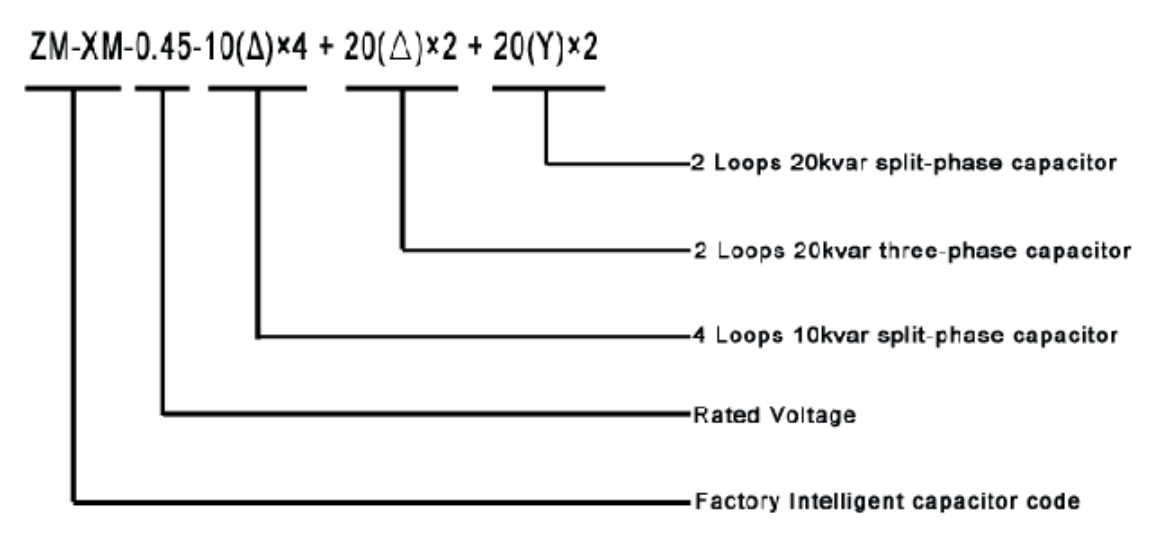

Model And Meaning

External Size And Installation Size
