| Brand | Rw Energy |
| Model NO. | Low-Voltage Static Reactive Power Compensation System |
| Rated voltage | 400V |
| Rated frequency | 50/60Hz |
| Series | HYTBBJ |
Description

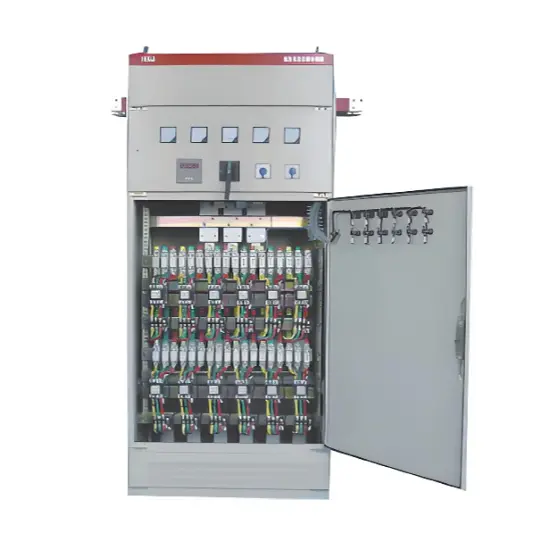

The Low-Voltage Static Reactive Power Compensation System is designed to provide reactive power support for inductive loads in low-voltage power distribution networks. By compensating the reactive current in the system, it significantly improves the power factor, enhances power quality, reduces transmission losses, and suppresses voltage fluctuation.
This system increases transformer and feeder utilization efficiency, protects electrical equipment by reducing operational stress, and extends service life. By stabilizing the power factor, it effectively reduces reactive power penalties imposed by utilities, helping users achieve both energy-saving benefits and lower operational costs.
It fully supports national initiatives for energy conservation and sustainable development while ensuring stable, efficient, and reliable power delivery.
Model Code Description
Example: HYTBBJL-0.4-□/□W-P7
| Code | Description |
|---|---|
| P | Reactor |
| H | Harmonic filter branch |
| W | Outdoor cabinet structure |
| □ | Number of capacitor groups |
| □ kvar | Rated compensation capacity |
| 0.4 kV | System voltage level |
| Type 2 | L – Filter compensation / W – Line compensation |
| Type M | Standard type (usually omitted) |
| Type 1 | J – Static / D – Dynamic |
| HYTBBJ | Static reactive power compensation unit |
