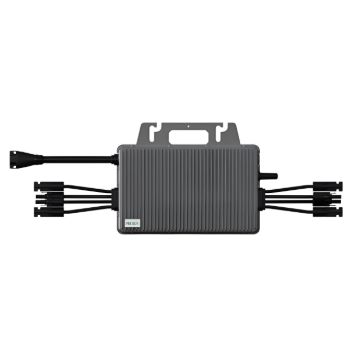

Micro Inverter MS Series 4-in-1 1600~2250W
Zhejiang Wone IT Service Co., Ltd.
1yrs +
staff 1000+m² US$300000000+
Key attributes
| Brand | Wone Store |
| Model NO. | Micro Inverter MS Series 4-in-1 1600~2250W |
| Rated normal current | 25A |
| Rated frequency | 50/60Hz |
| Series | MS |
Product descriptions from the supplier
Description
Description
PSOL Series Micro Inverter makes PV solar systems more efficient, smarter and safer. Our micro inverter integrated all the functions of module-level rapid shutdown, module-level monitoring, module-level MPPT and module-level shadow optimizer, so it can maximize the power generation efficiency up to 25% more electricity than the traditional system; Easy troubleshooting, easy maintenance and easy system expansion.
Product Features
Real-time monitoring via Projoy M-Cloud V2 app and portal
G98, VDE 4105, NTS 631, UTE,CEI0-21, EN50549-1, INMETRO certified
Max. efficiency up to 97.2%
Solve mis-matching/shadow issue
12 years warranty, 25 years life span
Safe guarding < 60V DC
Technical Parameter
| Product Model | MS1600 | MS1800 | MS2000 | MS2250 |
| Recommended Module Power [W] | 300-600+ | 300-600+ | 300-600+ | 400-700+ |
| Start up Voltage [V] | 22 | |||
| MPPT Voltage Range [V] | 16~60 | |||
| Max. Input Voltage [V] | 60 | |||
| Max. Input Short-circuit Current [A] | 25 | |||
| Max. Input Current per Input [A] | 16 | 16 | 16 | 18 |
| Quantity of MPPTs | 4 | |||
| Quantity of DC Inputs | 4 | |||
High Craftsmanship and Standards
Plug & Play, easy installation
4 MPPTs, 97%+ peak efficiency
WiFi/Bluetooth integrated
Module level monitoring
Zero-feeding to the grid
25 years design lifetime, 12 years warranty
