| Brand | Wone Store |
| Model NO. | Multi-jet Keypad Smart Water Meter |
| Rated frequency | 50/60Hz |
| Series | GSW7666-F |
GSW7666 - F is an electronic - valve controlled water meter with accurate measurement for revenue protection of water utilities. Complying with STS standard and equipped with a Customer Interface Unit (CIU) for inputting recharging tokens & searching for information, it could also link to a Data Concentrator by RF - LoRa, with tariff charging & data transmission by AMR (Automatic Meter Reading) system as two main functions.
Main Features
DN |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
|
Size |
Inch |
1/2” |
3/4” |
1” |
1 - 1/4” |
1 - 1/2” |
2” |
|
Q4 Permanent flow |
m³/h |
3.125 |
5 |
7.875 |
12.5 |
20 |
31.25 |
|
Q3 Overload flow |
m³/h |
2.5 |
4 |
6.3 |
10 |
16 |
25 |
|
R80 Q3/Q1
|
Q2 |
m³/h |
0.05 |
0.08 |
0.126 |
0.2 |
0.32 |
0.5 |
Q1 |
m³/h |
0.031 |
0.05 |
0.079 |
0.125 |
0.2 |
0.312 |
|
Max pressure |
Bar |
16 |
||||||
Pressure loss |
0.63 (as complete unit) |
|||||||
Max temperature |
°C |
50 |
||||||
Max reading |
m³ |
99999 |
||||||
Max permissible error (MPE) |
% |
Q1≤Q≤Q2: MPE = ±5% |
||||||
Length(L) |
165/190 |
190 |
225/260 |
230/260 |
245/300 |
280/300 |
|
Width(W) |
99 |
99 |
103 |
104 |
124 |
125 |
|
Height(H) |
104 |
106 |
114 |
117 |
147 |
172 |
|
Connecting thread |
G3/4B |
G1B |
G1 - 1/4B |
G1 - 1/2B |
G2B |
G2 - 1/2B |
Flange |

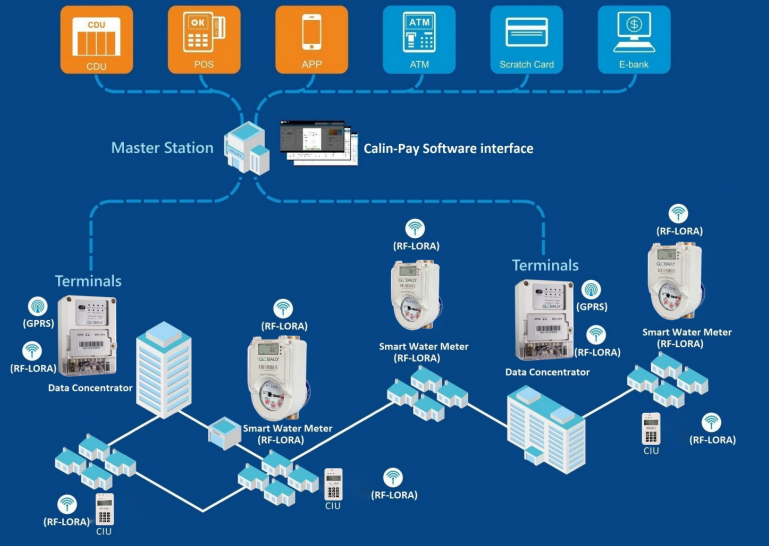

Remote/Local Prepayment Solution
