NF-822 High Voltage Underground Wire Detector Underground Wire Tracker
Zhejiang Powertech electric CO.,Ltd.
7yrs +
staff 580000+m² US$120000000+
Key attributes
| Brand | POWERTECH |
| Model NO. | NF-822 High Voltage Underground Wire Detector Underground Wire Tracker |
| Max Depth Range | 1000m |
| Max Cable Length | 0.8m |
| Series | NF |
Product descriptions from the supplier
Description
Features
Tone trace cable under the floor slab, the ceiling or in the wall.
No interference completely under any current or external environment when cable tracking.
The alligator clip and socket can be used at the same time.
The detection range is 0~0.3m and cable length 1000m.
Rechargeable lithium battery for the emitter.
100% Affordable. Manufactured in China and a lot cheaper than competitor products with similar quality.

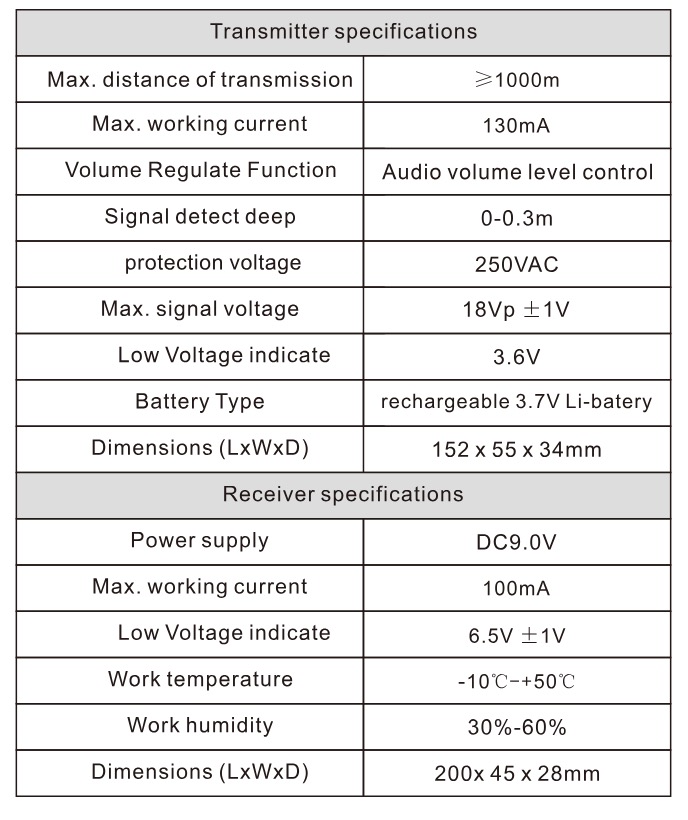

Technical parameters

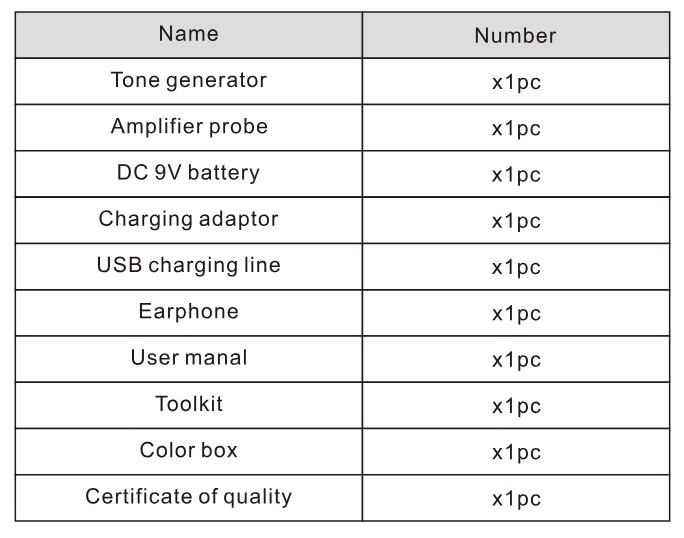

Standard packing

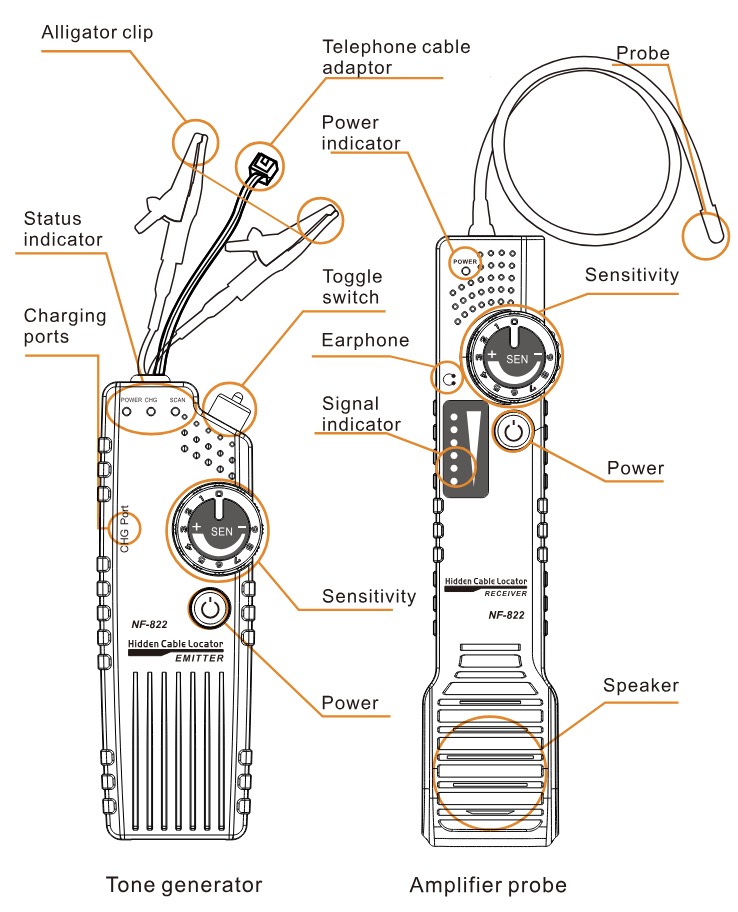

Interfaces

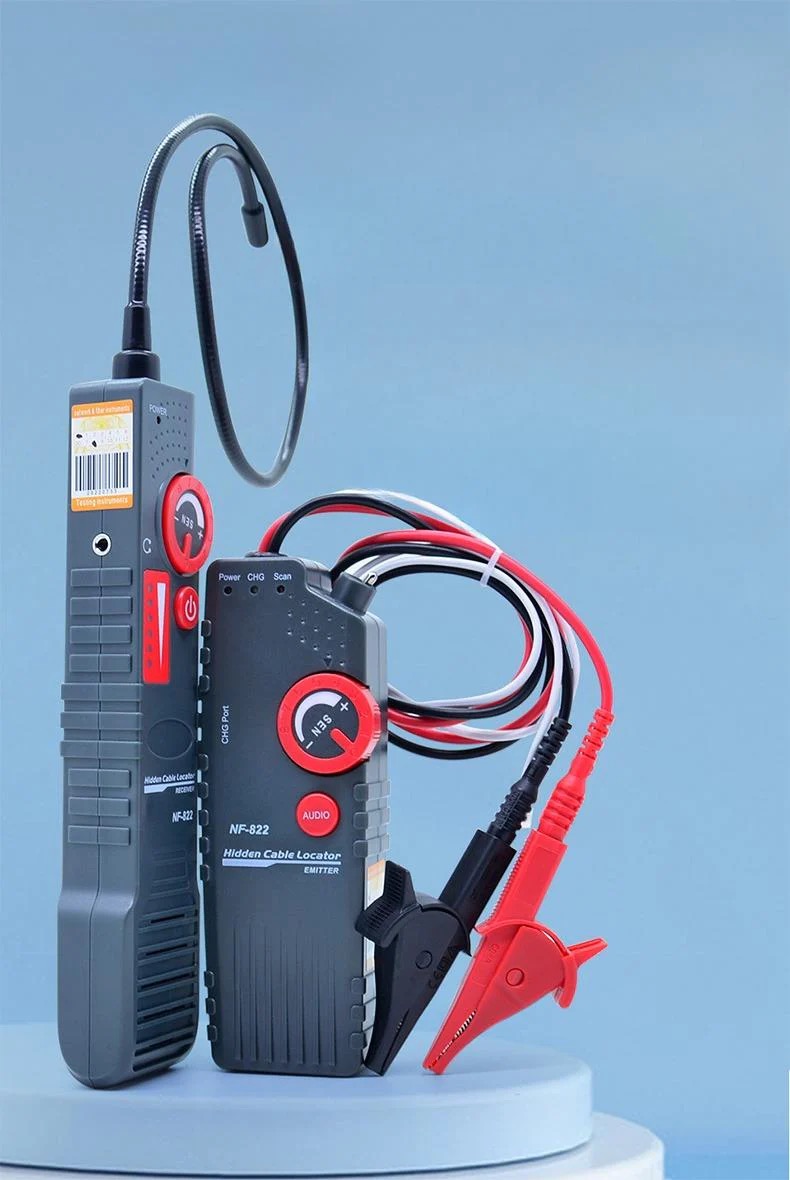

1、NF-822 High Voltage Underground Wire Detector
Capable of tracing cables in high voltage environment (0 ~ 250V AC)

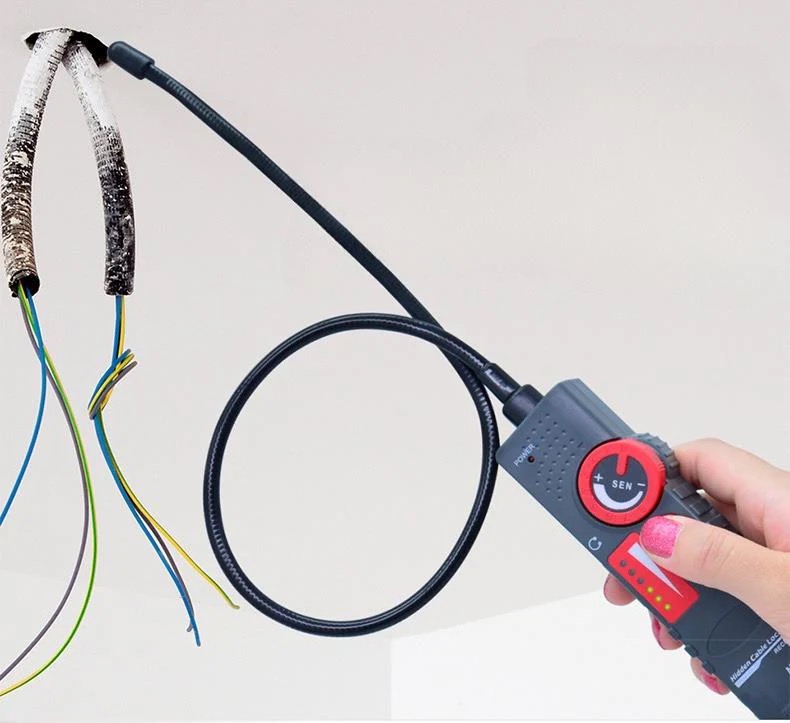

2、Trace Underground Cables / Pipes
Detect cable locations in underground, inside-wall, ceiling or other invisible cable. No interference completely under any current or external environment when cable hunting.

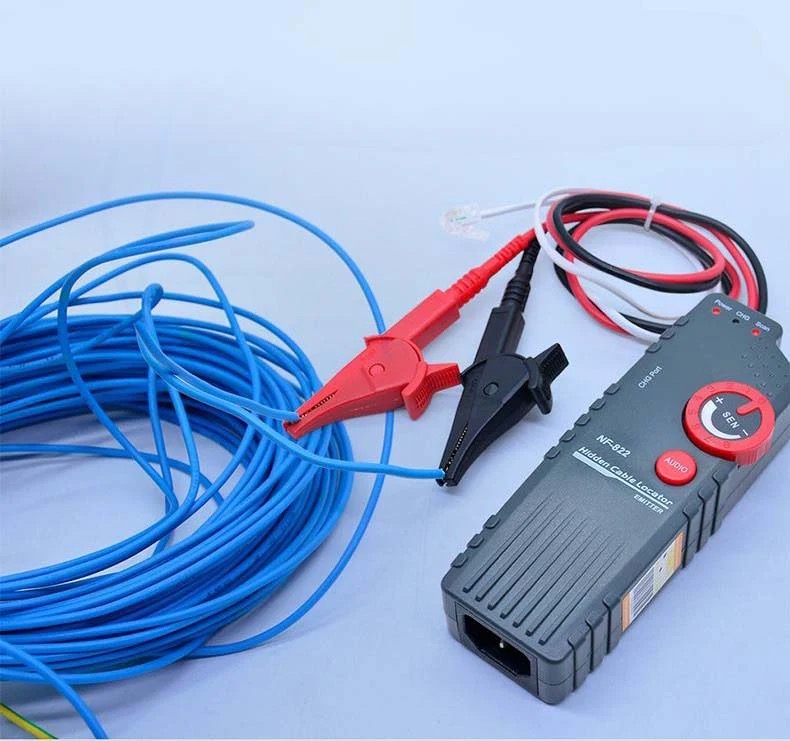

3、Scan Length Up to 1,000 Meters
The target cable is under the floor slab, the ceiling or in the wall are not affected to be hunted. The transmitting and receiving power cab be adjust according to the actual situation.

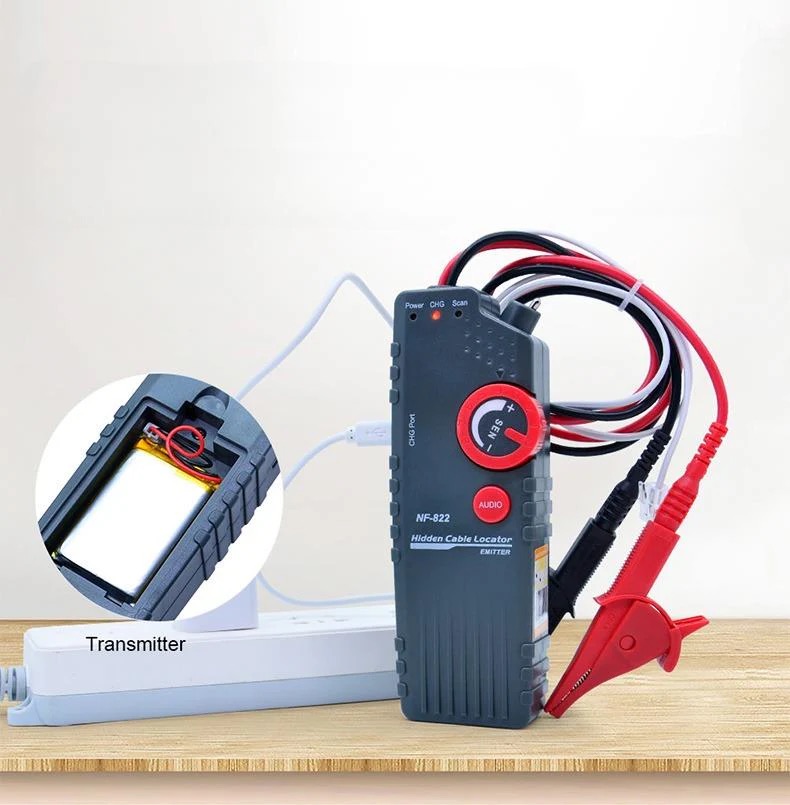

4、Rechargeable Lithium Battery
When charging for the battery, the CHG indicator turns red. If fully charged, the indicator will turn green. The whole charging process needs about 8 hours.
