| Brand | Wone |
| Model NO. | Single-phase DIN-rail Prepayment Energy Meter |
| Rated normal current | 63A |
| Analogue input type | External CT |
| Communication port support | RS485/RF |
| Number of outputs | 1 pulse |
| Number of inputs | 1 |
| Multi-tarff | 4 tariffs |
| Current transformer | Yes |
| Series | GSD7666- DG2 |
Description

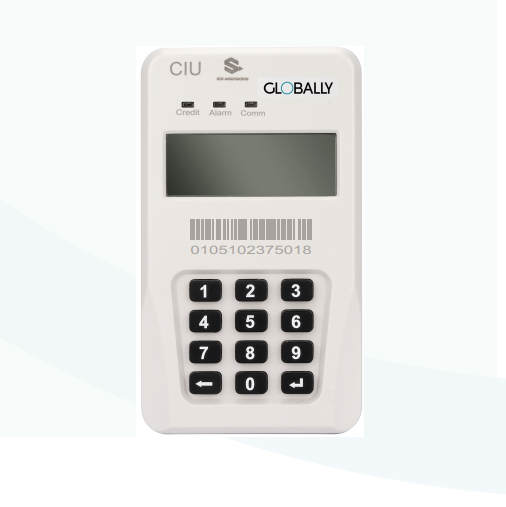

GSD7666-DG2 is an advanced & compact DIN-rail energy meter with split-type structure & Class 1 accuracy. Complying with STS standard,the meter is suitable for commercial & residential customers and has outstanding tamper detection features.It could make communication with the external Customer Interface Unit(CIU) by M-bus, PLC or RF, and its installation requirements are also optional.
Feature
Dual-relay ·
Multi-tariff ·
DLMS/COSEM compliant ·
STS prepayment ·
20-digit STS encryption ·
35mm DIN-rail installation ·
Tamper detection & recordin.
·MCU linking to CIU by M-bus/PLC/RF(optional) ·
Slim-line & space-saving design ·
Disconnecting on overload & no-credit condition ·
Programmable warning of power limit & low credit·
With Infrared port/RS485/virtual token carrier(optional) ·
Surge protection against lightening & other line surges.
Specifications
| Main |
|
|---|---|
| Range | GSD |
| Model NO. | GSD7666- DG2 |
| Product or Componet Type | Energy meters |
| Country of origin | China |
| Complementary |
|
|---|---|
| Phase | Single-phase |
| Type of measurement | Active power;current voltage;Active power |
| Metering type | Active, reactive, apparent energy (signed, four quadrant) |
| Device Application | Prepayment,Multi-tariff |
| Accuracy class | Class1.0 active energy IEC62053-21 |
| Input type | --- |
| Rated voltage | 230V |
| Network Frequency | 50~60Hz |
| Technology Type | Electronic |
| Display Type | LCD display |
| Sampling rate | --- |
| Maximum value measured | ----- |
| Tariff input | Tariff 4 |
| Communication port protocol | --- |
| Communication port support | RS485/RF |
| Local signalling | Green indicator light power ON Yellow flashing LED accuracy checking alarm overload |
| Number of inputs | --- |
| Number of Outputs | --- |
| Output voltage | --- |
| Mounting Mode | --- |
| Mounting Support | DIN rail |
| Connections - terminals | Maximum cable size 8mm |
| Standards | IEC62053-21 |
| Environment |
|
|---|---|
| IP degree of protection | P54 |
| Ambient air temperature for operation | -25℃~+70℃- IEC |
| Ambient Air Temperature for Storage | -40℃~+85℃ |
| Dimensions | 120*68*29/147*88*60 |
| Packing Units |
|
|---|---|
| Unit Type of Package 1 | PCE |
| Package 1 Height | |
| Package 1 Width | |
| Package 1 Length | |
| Package 1 Weight | |
