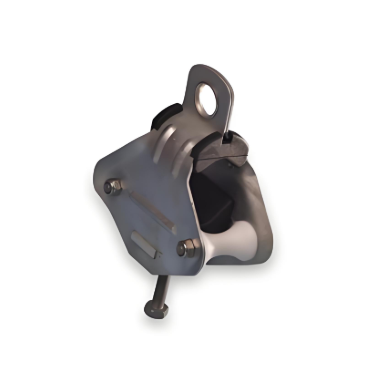

Suspension clamp poles in straight lines and angles

Product Introduction

The Suspension Clamp for Straight & Angle Poles is a specialized hardware component for overhead power transmission/distribution lines. It is engineered to mount on straight-line poles (used in linear sections of power lines) and angle poles (installed at line turning points), serving to suspend, secure, and stabilize conductors (wires/ground wires). By bearing the weight of conductors and balancing horizontal/vertical forces (especially critical for angle poles), it maintains safe line spacing, prevents conductor sag or displacement, and ensures reliable power transmission—widely applied in 10kV–500kV overhead grids for residential, industrial, and rural electrification.

Features

• Dual Compatibility: Straight & Angle Poles：Designed to fit both straight-line poles (for linear line segments) and angle poles (for line turns, 30°–90° typical), eliminating the need for separate clamps for different pole types. Optimized mounting structures adapt to pole diameters (150mm–300mm common) and surface shapes.

• Secure Conductor Fixing & Force Balance：Features a grooved or rubber-lined inner design to grip conductors tightly without damaging insulation. For angle poles, it resists horizontal pull from conductor tension at turns, preventing conductor slippage and maintaining line alignment—critical for avoiding short circuits from line contact.

• High Load-Bearing Capacity：Constructed from high-strength materials (e.g., aluminum alloy, hot-dip galvanized steel), it supports conductor weights (up to 500kg depending on model) and withstands dynamic loads from wind, ice, or temperature changes. Ensures long-term stability without deformation.

• Weather & Corrosion Resistance：Surface treatments (hot-dip galvanizing, anti-UV coating) protect against outdoor elements: rain, humidity, salt spray (for coastal areas), and UV radiation. Prevents rust or material degradation, extending service life to 15–20 years in harsh environments.

• Easy Installation & Maintenance：Modular design with simple fastening parts (bolts, washers) allows quick on-site installation—no specialized tools required. Smooth surface and detachable components simplify inspections or conductor adjustments, reducing maintenance time and labor costs.

• Compliance with Industry Standards：Meets international standards (e.g., IEC 61284, ANSI C119.4) and local grid regulations, ensuring compatibility with global overhead line systems. Rigorous testing (load, corrosion, temperature cycling) guarantees performance in real-world power transmission scenarios.

Main Parameters
