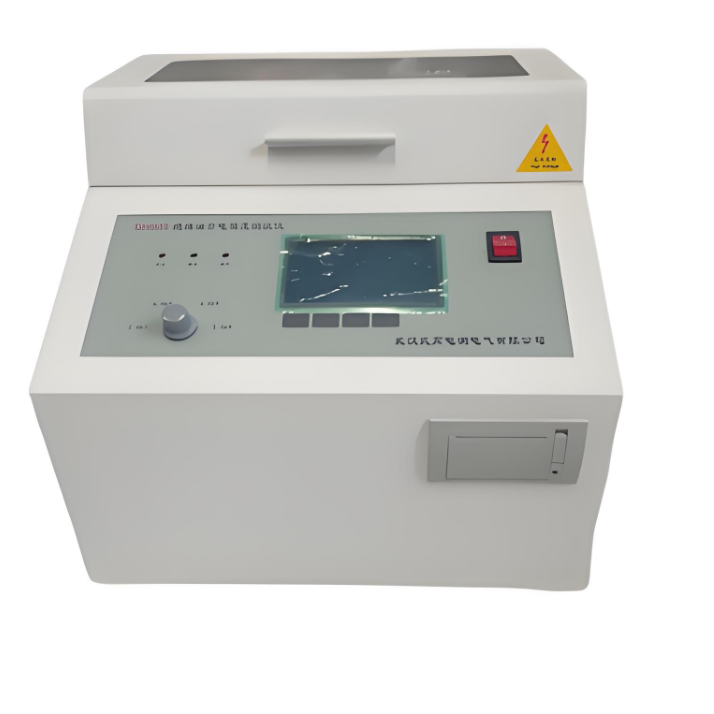

WDIIJ-6803 Three cup Automatic Insulation Oil Dielectric Strength Tester

$3500.00

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone
Model NO.	WDIIJ-6803 Three cup Automatic Insulation Oil Dielectric Strength Tester
Output Voltage	0～80 kV
Booster capacity	1.5 kVA
Step-up speed	3.5 kV/s
Series	WDIIJ-6803

Product Detail

Description

WDIIJ-6803 insulating oil dielectric strength tester oil cup is formed by one-time casting of special glass, which prevents the occurrence of interference such as oil leakage; the unique high-voltage end sampling design of the instrument allows the test value to directly enter the A/D converter, avoiding the need for The error caused by the analog circuit makes the measurement result more accurate; the instrument has functions such as overcurrent, overvoltage, short circuit protection, etc., and has strong anti-interference ability and good electromagnetic compatibility.

Specifications

Technical indicators

Booster capacity	1.5 kVA
Step-up speed	2.0 kV/s, 2.5 kV/s, 3.0 kV/s, 3.5 kV/s optional
Output voltage	0～80 kV
Power distortion rate	<1%
Display mode	Large-screen LCD
Electrode gap Standard	2.5 mm
Dimensions	730 mm×410 mm×390 mm
Instrument weight	38 kg (ODST-1203)

Conditions of use

Ambient temperature	0～40℃
Relative humidity	≤85%
Working power	AC 220V ± 10%
Power frequency	50 ± 5 Hz
Power consumption	<200 W
