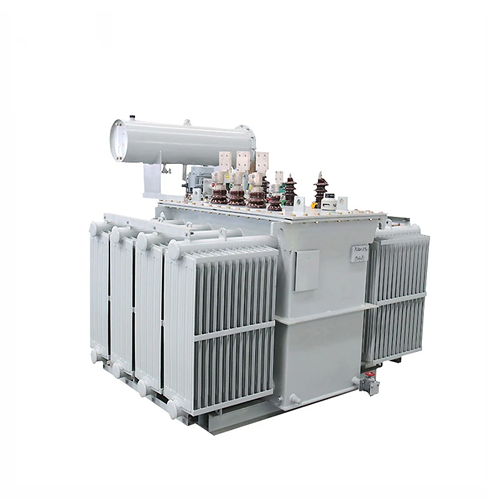

Special Transformer Solutions for Harsh Environments - Customized High Adaptability

Ⅰ. Environment-Tolerant Custom Design

1. Extreme Temperature Adaptability

• Cold-start technology: Silicone-modified insulating oil (solidification point ≤ -60℃) with anti-condensation electric trace heating.

• Pre-heating modules for critical components (optional), ensuring safe startup at -50℃.

• F-class insulation materials designed with H-class thermal rise margin.

• Enhanced cooling: Stepped radiators + optimized copper-tube oil ducts; optional IP55-rated intelligent forced-air cooling system (40% thermal control efficiency boost).

• High-Temperature Operation (≥150℃)

• Low-Temperature Operation (-40℃ to -60℃)

2. High-Altitude Reinforcement (≥3,000m)

• Insulation distance increased by 20% (per IEC 60076-15), CTI≥600 epoxy for solid insulation.

• Upgraded external insulation: Extended-shed bushings; SF6 gas insulation for dry-type transformers (withstand strength ≥40 kV/cm).

3. Salt Spray/Heavy Pollution Protection

• Triple Anti-Corrosion System:

Ⅱ. Explosion Safety System

1. Certified for Explosive Atmospheres (Chemical/Mining):

• Ex d IIC T4 flameproof enclosure (ATEX 2014/34/EU compliant), flamegap ≤0.1mm.

• Safety interlock: Pressure-release valve + instant trip breaker (response ≤2ms), grounding resistance ≤0.5Ω.

2. Intrinsic Safety Monitoring:

• Ex ia online monitoring (partial discharge + DGA), signals isolated via Zener barriers.

Ⅲ. Seismic Reinforcement

1. Dynamic Structural Simulation

• FEA seismic response spectrum per IEEE 693 (High Level), peak acceleration 0.5g.

2. Displacement-Tolerant Design

• Internals: Honeycomb support frame + axial winding compression (displacement tolerance ≥±15mm).

• External: High-strength viscous dampers (damping coefficient ≥30%), withstands seismic intensity IX.

Ⅳ. Target Performance & Validation

Final Efficacy:

• Failure rate <0.1 incidents/year in extreme environments.

• Service life extended to 35 years.

• O&M costs reduced by 45%.
