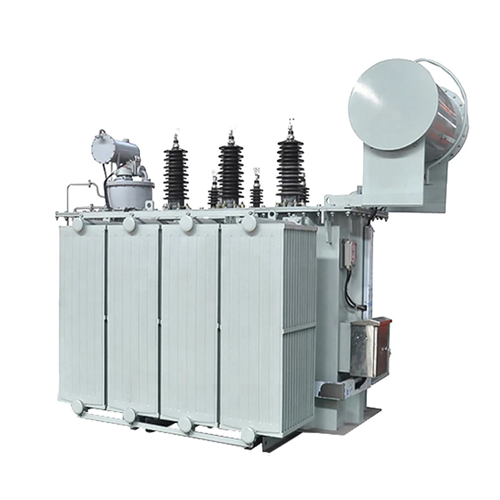

High-Impact-Resistant Special Transformer Solution
Core Challenge Identification
In demanding applications such as ship propulsion, rail transit traction power supply, and heavy-duty mining equipment, special transformers perpetually face dual threats:
Electrical Stress: (>100 kA short-circuit current impact, >30% harmonic distortion rate, millisecond-level voltage surges/sags)
Mechanical Stress: (continuous >5g vibration acceleration, instantaneous shock >15g).
Traditional designs often lead to irreversible failures like winding plastic deformation, insulation layer fracture, and core displacement. This solution achieves structural breakthroughs through systematic innovation.
Core Technology Implementation Path
Ⅰ. Ultra-Strong Short-Circuit Defense System (Withstand Peak >150 kA)
Technology Module |
Innovative Implementation Scheme |
Precise Electromagnetic Force Control |
Dynamic simulation of axial/radial short-circuit forces based on 3D magnetic-mechanical coupling FEA (ANSYS Maxwell + Mechanical) |
Reinforced Winding Structure |
Utilize self-bonding transposed conductors (CTE, tensile strength ≥220 MPa) or full-copper foil windings to eliminate conductor internal stress difference |
Compression System Revolution |
Four-dimensional pre-stressed clamping process (pre-compression force ≥3 MPa) + carbon fiber composite pressure plates (compressive strength 500 MPa) |
Explosion-Resistant Tank Design |
16mm thick steel plate tank body + annular stiffening structure, passing IEC 60076-11 internal arcing test |
Example: Marine propulsion transformer passed 48 kA/2s short-circuit test with winding deformation rate <0.1%
II. Deep Suppression of Harmonic Pollution
(Content not provided for detailed translation)
III. Dynamic Voltage Stabilization System
Intelligent Impedance Matching: ±10% impedance bandwidth design, synchronously optimizing current limiting capability and voltage adaptability.
Millisecond-Level Voltage Regulation Response: Equipped with vacuum on-load tap-changer (VACUTAP® VR®Ⅲ), switching time <40 ms.
Voltage Surge Protection: Built-in MOV surge suppressor (8/20μs waveform absorption capacity ≥10 kJ).
IV. Mechanical Shock Protection Matrix
(Content not provided for detailed translation)
Extreme Environment Validation Data
Test Item |
Standard Requirement |
This Solution Performance |
Improvement |
Seismic Resistance |
IEEE 693 Zone 4 |
Passed 0.5g PGA |
300% |
Shock Test |
MIL-STD-810G |
Passed 50g/11 ms |
150% |
Harmonic Temp Rise |
IEC 60076-7 |
ΔT≤78K at THD=40% |
↓42% |
Thermal Cycling |
-40℃ to +150℃ |
Insulation resistance retention rate 95% |
↑30% |
Engineering Application Value
Eliminate Catastrophic Failures: Prevent inter-turn short circuits caused by winding deformation; expected lifespan extended to 25+ years.
Optimize Energy Efficiency & Cost: Harmonic additional losses reduced below 0.8% of rated power; annual electricity savings >120 MWh.
Breakthrough in Extreme Scenarios: Meet special certifications including Nuclear ASME III, Marine DNV-GL, Mining IEC Ex.
Sharply Reduce Maintenance Costs: Core-free inspection interval extended to 10 years; MTBR (Mean Time Between Repair) >150,000 hours.
This solution has been applied in scenarios including:
Power supply systems for Arctic Circle mining electric trucks (-45°C environment)
Power supplies for hypersonic wind tunnels (100ms impacts).
