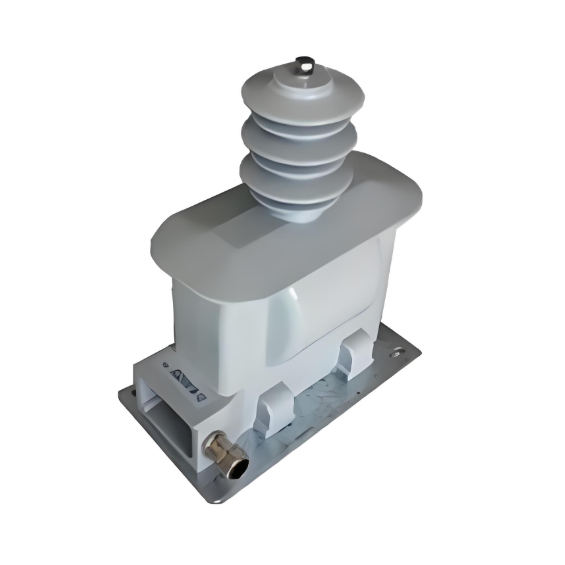

Optimal Life Cycle Cost Solution for Outdoor Voltage Transformers (VT/PT)
Objective
Minimize the Total Cost of Ownership (TCO) over the equipment's entire 30-year lifecycle. This is achieved through systematic optimization of design and intelligent operation & maintenance (O&M) strategies, effectively balancing upfront investment with long-term operational expenditures.
I. Core Cost Optimization Strategies
- Design & Simulation Optimization
- Utilize electric field simulation software (e.g., ANSYS, COMSOL) to precisely calculate insulator creepage distance and mechanical strength. Optimize insulator height, shed profile, and wall thickness. Reduce redundant materials while complying with IEC/CNS standards, lowering raw material costs by 15%-20%.
- Performance Uncompromised: Optimized designs fully pass all type tests, including power frequency withstand, lightning impulse, and pollution tests.
- Insulator Selection Strategy
- Medium Pollution Areas (ESDD ≤ 0.1mg/cm²): Use composite insulators (silicone rubber material) to replace traditional porcelain insulators:
✓ Weight reduction by 40% → Lowers transportation and installation costs.
✓ Hydrophobicity delays pollution flashover → Reduces cleaning frequency.
✓ Enhanced crack resistance → Avoids unplanned replacements due to porcelain breakage.
Cost-effectiveness increased by over 30% compared to traditional porcelain.
II. Key Technologies for O&M Cost Control
- Maintenance-Minimized Structural Design
- Core-Lifting Free Design: Sealed oil tank uses a bellows-type expansion device + dual sealing rings, eliminating the need for core-lifting maintenance for 30 years. Avoids traditional core-lifting costs (≈ $5,000/instance) and outage losses.
- Modular Desiccant Unit: Respirator desiccant can be replaced on-site quickly (< 30 minutes), requiring no special equipment. Reduces O&M costs by 70%.
- Intelligent Condition Monitoring
- Integrated Monitoring Interfaces: Pre-wired interfaces for oil pressure/moisture/oil level sensors (IEC 61850 compliant), supporting integration with SCADA systems.
- Basic Configuration: Standard mechanical oil gauge, pressure gauge, and moisture indicator for "visual" rapid diagnostics.
- Benefits: Provides early warning of insulation degradation, reducing unplanned outages by ≥90% and lowering fault repair costs by 50%.
III. Long-Term Energy Savings & Reliability Assurance
|
Technical Measures |
TCO Contribution |
|
Low-loss Supermalloy Core |
No-load loss reduced by 40% compared to national standards. 30-year energy savings offset the initial investment premium. |
|
High-Reliability Branded Components |
MTBF ≥ 500,000 hours. Reduces fault replacement costs and outage losses ($100k+/instance). |
IV. TCO Quantification Model (Example)
Assume a 220kV VT project:
TCO = Procurement Cost + Σ(t=1 to 30) [Annual O&M Cost / (1+r)^t] + Outage Loss Costs
(Where r = Discount Rate)
Key Parameters:
- Energy Savings: Low-loss design saves ≈ 1,200 kWh/year (≈$600/year).
- Reliability Gain: High-reliability brand ensures fault rate ≤ 0.2% → Reduces outage losses by $500k over 30 years.
Result: Investment payback period < 8 years. Total lifecycle cost reduced by 18%-25%.
Summary
This solution leverages four pillars – design-source cost reduction (material optimization), O&M structural innovation (core-lifting free + modularity), continuous energy consumption control (low-loss core), and a fault prevention system (condition monitoring + high reliability) – to compress the total lifecycle cost of outdoor VTs/PTs by over 20%, while ensuring safety and reliability. It provides power grid enterprises with an economically proven solution validated over 30 years.
Reference Standards: IEC 60044-2, GB/T 20840.2, CIGRE TB 583
Applicable Scenarios: 110kV~500kV substations, renewable energy booster stations, high-pollution industrial areas.
