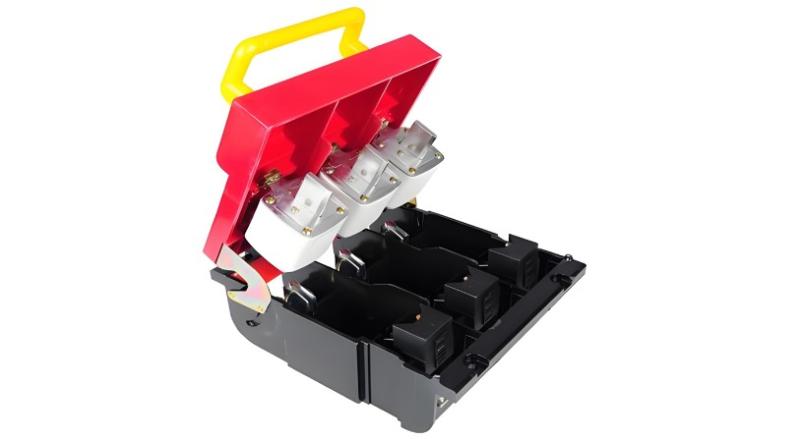

Selection Principles and Precautions for Fuse-Switch Disconnectors
The selection principles and precautions for fuse-switch disconnectors are crucial to ensuring the safe and stable operation of power systems.
Selection Principles for Fuse-Switch Disconnectors
Rated Voltage:The rated voltage of the fuse-switch disconnector shall be equal to or greater than the rated voltage of the electrical system to ensure the equipment operates normally without damage.
Rated Current:The selection of rated current should be based on the load conditions of the electrical system. Typically, the rated current should be equal to or greater than the maximum load current of the system, with an appropriate safety margin considered.
Rated Short-Time Thermal Current (Thermal Stability Current):The rated thermal stability current must exceed the maximum prospective short-circuit current that may occur in the system, ensuring the device remains thermally stable during a short circuit.
Breaking Capacity:Breaking capacity refers to the maximum current the device can safely interrupt under normal operating conditions. During selection, ensure the breaking capacity is equal to or greater than the fault current of the electrical system.
Protection Rating (IP Rating):Select an appropriate protection rating according to the actual working environment to prevent ingress of solid objects and water.
Coordination:The fuse and disconnector must exhibit good coordination to ensure reliable protection across the entire protection range.
Selectivity:In distribution systems, fuses at different levels must coordinate to achieve selective protection. Generally, the rated current of the upstream fuse should be at least 1.6 times that of the downstream fuse, or the operating time of the upstream fuse should be at least three times longer than that of the downstream fuse, to prevent unnecessary cascading outages and minimize the scope of power interruption.
Selection Precautions for Fuse-Switch Disconnectors
Brand and Quality:Choose products from reputable manufacturers to ensure quality and reliability.
Ambient Temperature:Fuse-switch disconnectors must operate within a specified temperature range. Typically, the ambient temperature should be between -5°C and +40°C. In special environments, select models specifically designed for those conditions.
Mounting Method:Select an appropriate mounting method—such as wall-mounted or base-mounted—based on the actual installation environment and requirements.
Inspection and Testing:After selection, perform necessary inspections and tests to verify that the device meets required performance and safety standards.
Operation and Maintenance:Familiarize yourself with the operating procedures and maintenance requirements of the fuse-switch disconnector to ensure proper operation and extend service life.
