Can X-ray Technology Detect Hidden Switchgear Defects?

Advancing Power Equipment Diagnostics: The Role of X-ray Digital Imaging

With continuous advancements in power grid equipment research and manufacturing, an increasing number of new devices are being integrated into power systems. As a result, effective monitoring of in-service equipment has become critically important for ensuring grid reliability and safety.

The introduction and successful application of X-ray digital imaging technologies—specifically Computed Radiography (CR) and Digital Radiography (DR)—in the power sector have revolutionized condition-based maintenance and asset assessment. These technologies offer an accurate, intuitive, and non-invasive method for inspecting the internal components of electrical equipment.

Traditional diagnostic methods rely primarily on indirect analysis of routine test data, which often fails to reveal hidden internal defects. In contrast, X-ray imaging directly visualizes internal structures, enabling early detection of faults that would otherwise remain undetected until failure occurs. Non-destructive X-ray inspection of energized or de-energized grid equipment significantly reduces maintenance downtime and prevents major economic losses associated with unnecessary disassembly or unplanned outages. Furthermore, the clarity of X-ray images provides strong technical support for precise fault diagnosis and informed decision-making.

Despite its advantages, X-ray technology does have limitations. For example, a portable X-ray unit with a maximum output of 300 kV can typically penetrate steel up to approximately 55 mm in thickness. This restricts its effectiveness for equipment with thick or complex cross-sectional structures. Additionally, inspection is not feasible in confined spaces where proper positioning of the X-ray source and detector is physically impossible.

Common Defects Detectable by X-ray Imaging:

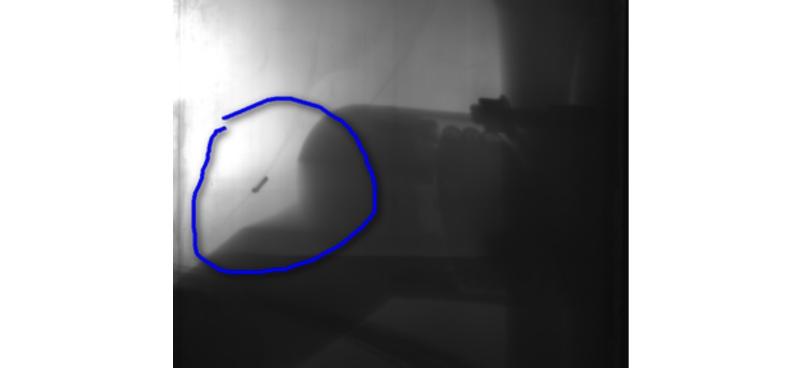

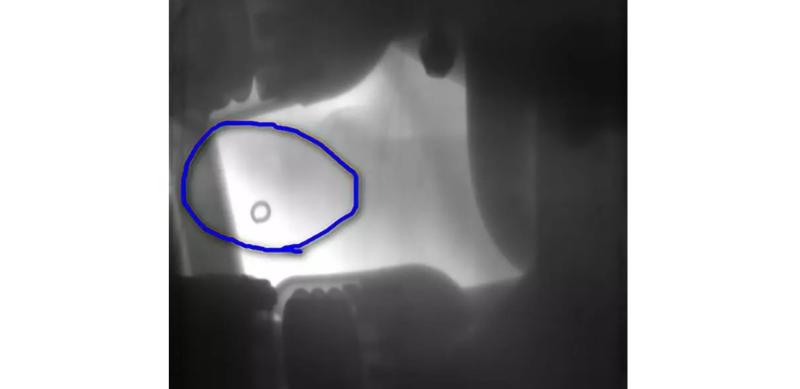

• Internal Foreign Objects
  Loose bolts, metallic debris from mechanical wear during switching operations, or foreign materials introduced during installation can all pose serious safety risks in high-voltage switchgear. X-ray imaging can clearly identify such contaminants within sealed compartments.

• Missing Components Due to Manufacturing or Installation Errors
  High-voltage circuit breakers and Gas-Insulated Switchgear (GIS) contain numerous internal parts. The accidental omission of critical components during assembly can lead to severe operational hazards. X-ray inspection helps verify completeness and integrity of internal assemblies.

• Assembly Misalignment
  Improper alignment of contacts in circuit breakers or disconnectors during manufacturing can severely compromise operational reliability. Misaligned components may cause contact deformation, rod fracture, or partial discharge during operation—potentially leading to catastrophic equipment failure. X-ray imaging enables precise verification of mechanical alignment.

Beyond these common applications, X-ray inspection holds significant potential for broader use across the power industry. When combined with expert fault analysis, accumulated inspection databases, and artificial intelligence (AI) algorithms, X-ray imaging is poised to play a pivotal role in future smart grid diagnostics, predictive maintenance, and digital twin technologies.

As the technology evolves, ongoing improvements in portable equipment, image resolution, and automated analysis tools will further enhance its value in ensuring the safety, reliability, and longevity of critical power infrastructure.
