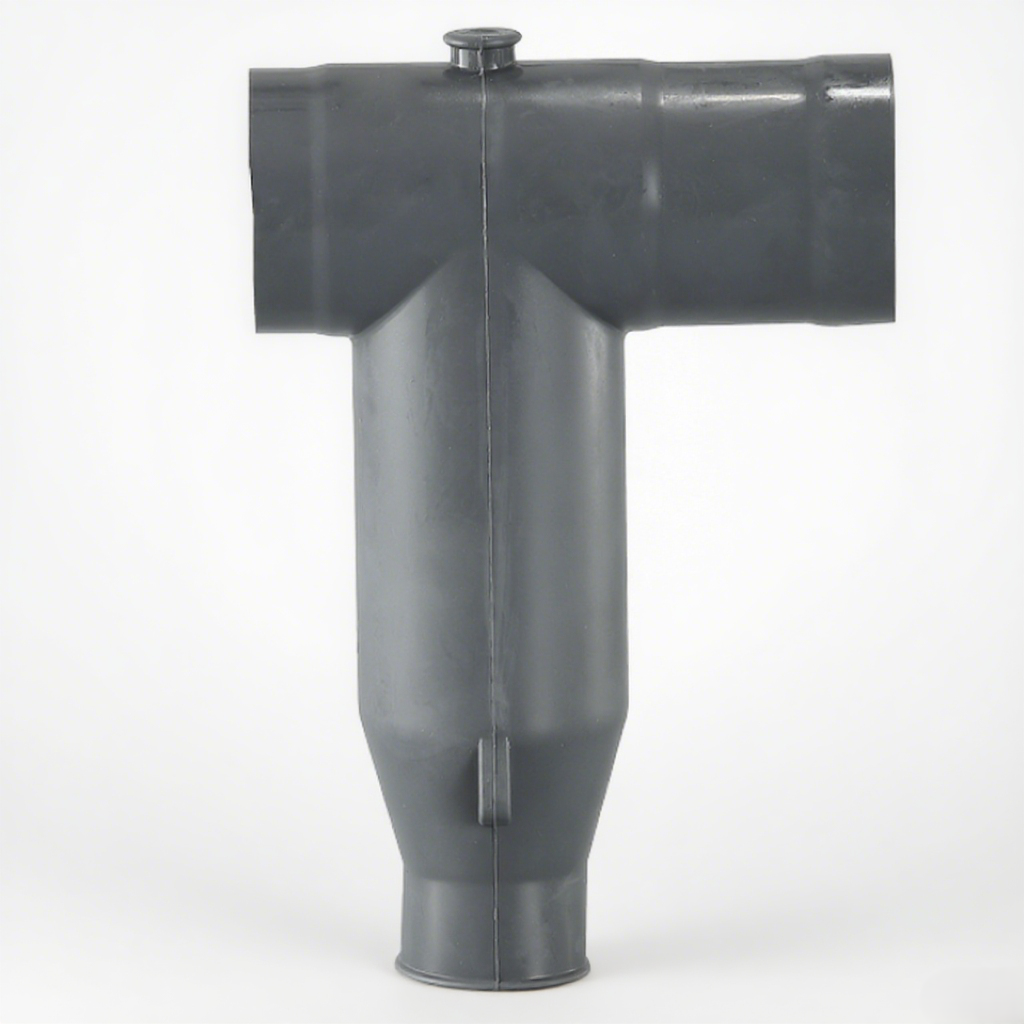

15kV Non Screen Front Connector

discuss personally

Model

RW-QJT-15/630-F

Basic info Product Detail Supplier

Basic info

Brand	Switchgear parts
Model NO.	15kV Non Screen Front Connector
Rated voltage	8.7/15kV
Series	RW-QJT

Product Detail

Product applications

middot;Realize the connection of single-phase or three-phase insulated cables and transformers, switch cabinets, cable branch boxes and other equipment through 630A prefabricated connectors.

middot;Suitable for indoor and outdoor installation.

middot;The highest system voltage is 17.5kV, and the continuous rated current is 630A (900Aoverload can last for 8 hours).

Cable characteristics

middot;Extruded insulated power cables (XLPE, ERP, etc.).
middot;Copper or aluminum conductor.
middot;Conductor size: 8.7/15(17.5)kV, Cable: 25-400mm².

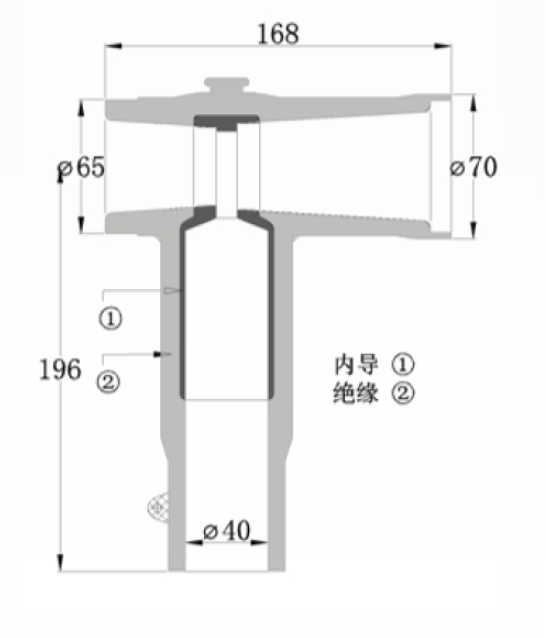

Performance

middot;When matched with a suitable sleeve or plug, a fully shielded and fully sealed separable
connection is provided.
middot;It can be operated under water and other harsh conditions for a long time.
middot;There is no minimum safety distance requirement between phases.
middot;The installation can be vertical, horizontal or any angle.

Stress cone model	Inner diameter of stress cone	Cable reference Insulation outer diameter	8.7/15 (7.5) kV Cable corresponding cross - section
1#	15	16 - 19	25 - 50mm²
2#	18	19.8 - 22	70 - 95mm²
3#	21	22.9 - 24.5	120 - 150mm²
4#	24	26 - 28.3	185 - 240mm²
5#	27	29 - 31	300mm²
6#	29	32 - 34	400mm²
