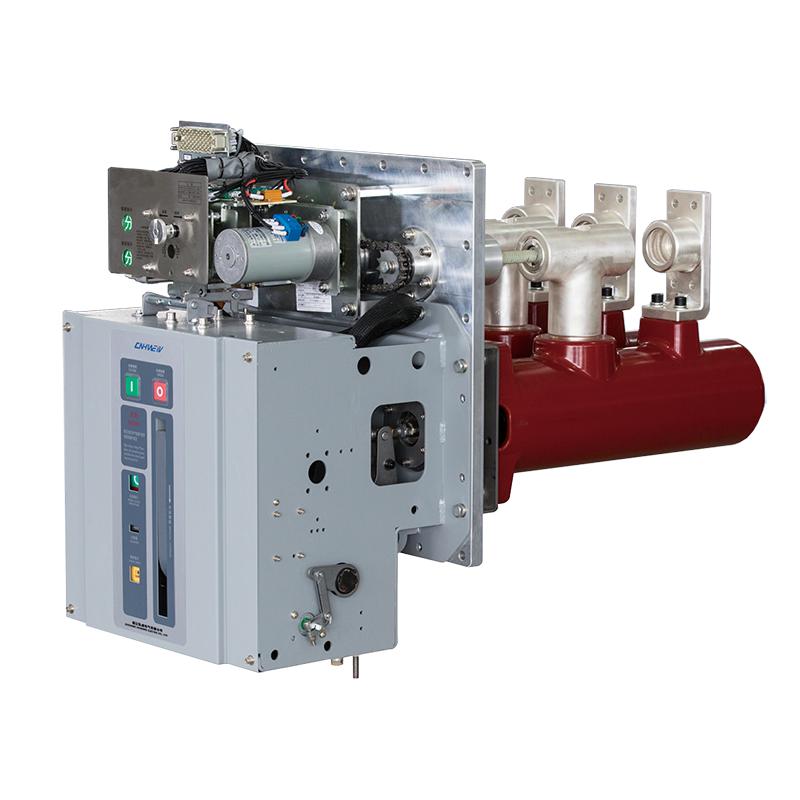

40.5kV/1250A-31.5kA THREE-POSITION GIS VCB(Vacuum circuit breaker)
Key attributes
| Brand | Switchgear parts |
| Model NO. | 40.5kV/1250A-31.5kA THREE-POSITION GIS VCB(Vacuum circuit breaker) |
| Rated voltage | 40.5kV |
| Rated normal current | 1250A |
| Rated short circuit breaking current | 31.5kA |
| Series | RNGIS-40.5 |
Product descriptions from the supplier
This 40.5kV vacuum circuit breaker (VCB) is tailored for gas-insulated switchgear (GIS) systems, integrating three-position functionality (breaking, isolating, and grounding) to streamline high-voltage power control. It supports a rated current of 1250A and a breaking capacity of 31.5kA, ensuring reliable protection against short circuits and overcurrents in medium-to-high voltage grids.
Adopting modular design, it is characterized by compact structure, good breaking performance, high reliability, long service life, complete isolation, maintenance free, small footprint, and can be widely used in industrial and civilian ring networks and terminal power supply networks. Especially suitable for small secondary distribution stations, switch stations, industrial and mining enterprises, airports, railways, highways, subways, commercial areas, residential areas, wind power, optoelectronics and other fields.
Operating conditions
Parameter |
Specification |
installation site |
In the box |
ambient temperature (℃) |
-45~+140 |
height (m) |
≤2000 |
air humidity (%) |
The daily average is not greater than 95% and the monthly average is not greater than 90% |
seismic intensity |
No more than 8 degrees |
Technical parameters of circuit breaker
order number |
Main equipment and technical performance |
Parameters and requirements |
1 |
circuit breaker |
1 unit |
type |
Fixed vacuum circuit breaker |
|
rated voltage |
40.5kV |
|
rated current |
1250A |
|
rated frequency |
50Hz |
|
Peak lightning impulse withstand voltage (breakout/ground) |
≥215kV/185kV |
|
1min power frequency withstand voltage (breakout/ground) |
≥118kV/95kV |
|
Rated short-time power frequency withstand voltage of auxiliary circuit |
2kV、50HZ 1min |
|
Rated short-term withstand current |
20kA |
|
Rated peak withstand current |
50kA |
|
Rated short circuit breaking current |
20kA |
|
Rated short-circuit closing current |
50kA |
|
Rated short circuit duration |
≥4s |
|
Operating mechanism - type |
Spring operating mechanism |
|
Operating mechanism - control voltage |
DC 24V/(48V/110V/220V) |
|
Operating mechanism - Auxiliary contacts |
6 always on, 6 always off |
|
mechanical life - Rated operating sequence |
O-0.3s-CO-180s-CO |
|
mechanical life - mechanical life |
10,000 times |
|
Electrical life |
10,000 times |
|
mechanical properties - Closing and opening time |
35-70ms |
|
mechanical properties - Comb and split speed |
1.2-1.9mm/s |
|
mechanical properties - clearance between open contacts |
18-22mm |
|
mechanical properties - Three-phase coincidence and different phase separation |
≤3ms |
|
2 |
Three position isolating switch |
1 unit |
type |
Manual/ Electric |
|
Auxiliary contacts |
3 always on, 3 always off |
|
3 |
mechanical life |
2,000 times |
Electrical life of grounding switch |
2,000 times |
|
4 |
Cabinet dimensions |
Not larger than 600X1700 (width X depth) |
Mechanical characteristics of circuit breaker
order number |
inspecting item |
technical requirement |
1 |
Check the main switch of the circuit breaker |
Number of arc extinguishing chamber (indicate manufacturer) |
The opening distance is 18-22mm |
||
Exceeding the limit by 3±1mm |
||
Contact pressure ≥3000N |
||
2 |
Mechanical properties inspection |
The difference between three-phase phase separation is less than 2ms |
The difference between three-phase closing time is less than 2ms |
||
Average speed of commutation 1.4-2.0m/s |
||
Average closing speed 1.0-1.8m/s |
||
3 |
Circuit breaker circuit |
Loop resistance ≤45μΩ |
Check SF6 pressure and moisture annually; inspect the three-position mechanism every 5 years; the vacuum interrupter has no regular maintenance. It supports remote monitoring of pressure and partial discharge to realize predictive maintenance
It is suitable for 35kV1250A GIS switchgear in substations, industrial power distribution, railway traction power supply, and critical loads such as data centers, which requires high reliability and frequent operation
It integrates three functions in one: closing (carrying/breaking current), isolating (safe maintenance isolation), and earthing (equipment safety earthing), with mechanical interlocking to prevent misoperation, which is more integrated and reliable than separate switches
