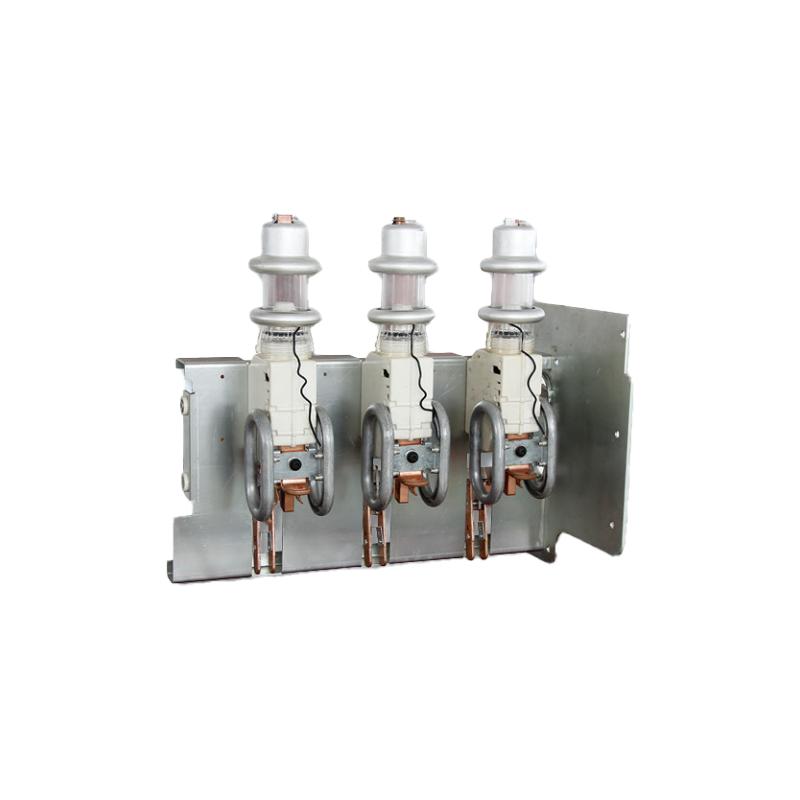

40.5kV SF6 gas insulated charging cabinet high voltage isolation switch
Key attributes
| Brand | Switchgear parts |
| Model NO. | 40.5kV SF6 gas insulated charging cabinet high voltage isolation switch |
| Rated voltage | 40.5kV |
| Rated normal current | 630A |
| Rated frequency | 50/60Hz |
| Series | RNG-40.5 |
Product descriptions from the supplier
This 40.5kV isolation switch is engineered for high-voltage charging cabinets, utilizing SF6 gas for superior insulation to ensure safe isolation of charging circuits. Its sealed design minimizes size, resists dust/moisture, and maintains stable performance in harsh environments.
Equipped with precise mechanical interlocks, it prevents misoperations like live switching, critical for protecting charging systems and operators. Compatible with industrial charging stations, renewable energy storage facilities, and substations, it complies with IEC and GB standards. Offering long mechanical life and low maintenance, it’s a reliable choice for high-voltage charging circuit isolation and control.
Considerations for the use of environmental conditions
The altitude does not exceed 2000m,the shattering ofnot more than 8 degrees;
The environmental temperature of the product is -40 degrees ~+140 DEG C, therelative humidity is not greater than 90% per day, and the average is not more than90% per month;
The installation site of frequent and violent shock, water vapor, chemical corrosiondeposition, salt fog, dust, dirt and fire, which obviously affect the performance ofthemechanism, are not suitable for the installation ofexplosive dangerous installations.

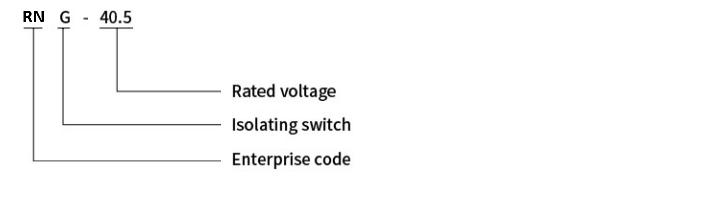

Model composition and meaning
Main technical parameters
Serial number |
content |
Company |
technical parameter |
1 |
Rated frequency |
Hz |
50 |
2 |
Rated current |
A |
630 |
3 |
Rated short-time Withstand current |
KA |
20/25 |
4 |
Rated peak withstand current |
KA |
50 |
5 |
Rated short-circuit duration |
s |
4 |
6 |
Rated short circuit closing current |
KA |
50 |
7 |
Theoretical operation |
frequency |
5000 |

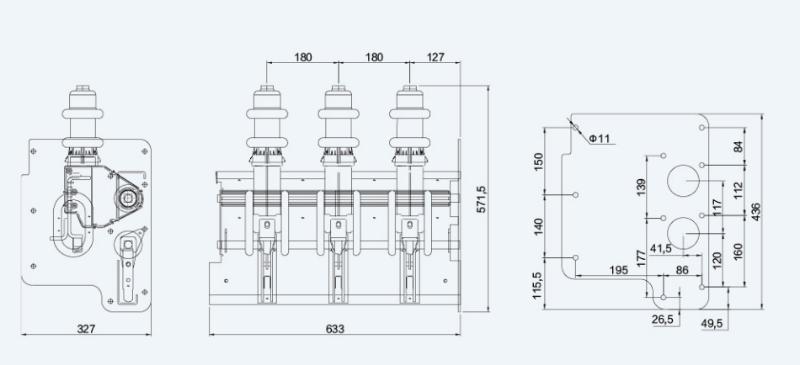

Outline of isolating switch and mounting dimensions
