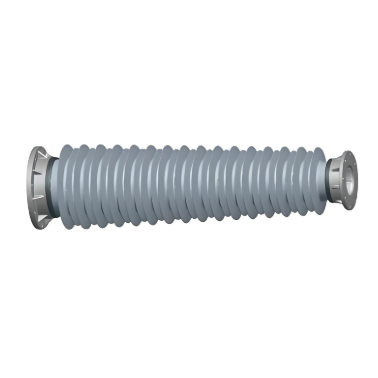

550kV Substation hollow composite insulator
Key attributes
| Brand | Wone Store |
| Model NO. | 550kV Substation hollow composite insulator |
| Rated voltage | 550kV |
| Rated frequency | 50/60Hz |
| Series | HKX |
Product descriptions from the supplier
Product Introduction
Post composite insulators are composed of core rods, end fittings, and silicone rubber shed sheaths. They are mainly used for insulation and mechanical fixation of busbars and electrical equipment in power plants and substations. Their categories include post composite insulators for busbars, post composite insulators for reactors, composite insulators for disconnectors, and other high-voltage electrical equipment.
The connection between epoxy resin glass fiber rods and fittings adopts a crimping process, with crimping parameters digitally controlled, ensuring consistent and reliable mechanical performance. The sheds and sheaths are made of silicone rubber, and the shed shape adopts an aerodynamic structural design, with excellent pollution flashover resistance. The sealing of sheds, sheaths, and end fittings adopts the integral injection molding process of high-temperature vulcanized silicone rubber, with reliable interface and sealing performance.
Hollow composite insulators consist of aluminum alloy flanges, glass fiber-reinforced resin sleeves, and silicone rubber shed sheaths. They are commonly used in high-voltage electrical equipment such as GIS combined switches, transformers, mutual inductors, capacitors, arresters, cable accessories, and wall bushings.
The connection between glass fiber-reinforced resin sleeves and aluminum alloy flanges adopts the process of placing sealing rings, then pressurizing and bonding with epoxy glue, with parameters digitally controlled, ensuring consistent and reliable mechanical performance. The sheds and sheaths are made of silicone rubber, and the shed shape adopts an aerodynamic structural design, with excellent pollution flashover resistance. The sheds, sheaths, and end fittings adopt the integral injection molding process of high-temperature vulcanized silicone rubber, and the sealing of end fittings adopts the combined sealing molding process of high-temperature and room-temperature vulcanized silicone rubber, with reliable interface and sealing performance.
Product Features
Main Parameters
Voltage class: 550KV
Structure height: 5285mm
Maximum Mechanical Load (MML): 98kN·m
Specified Mechanical Load (SML): 245kN·m
Maximum Service Pressure (MSP): 0.8Mpa
Specified Service Pressure (SIP): 3.2MPa
Creepage distance ratio: 31mm/kV
Inner diameter of tube: Φ350mm
Outer diameter of tube: Φ400mm
