5KW High-performs hybrid PV inverter
Key attributes
| Brand | RW Energy |
| Model NO. | 5KW High-performs hybrid PV inverter |
| Mounting type | Wall-mounted |
| Rated Output Rating | 5kW |
| Input Voltage | DC48V |
| Rated PV input power | 5.5kW |
| Series | PC/PW PLUS |
Product descriptions from the supplier

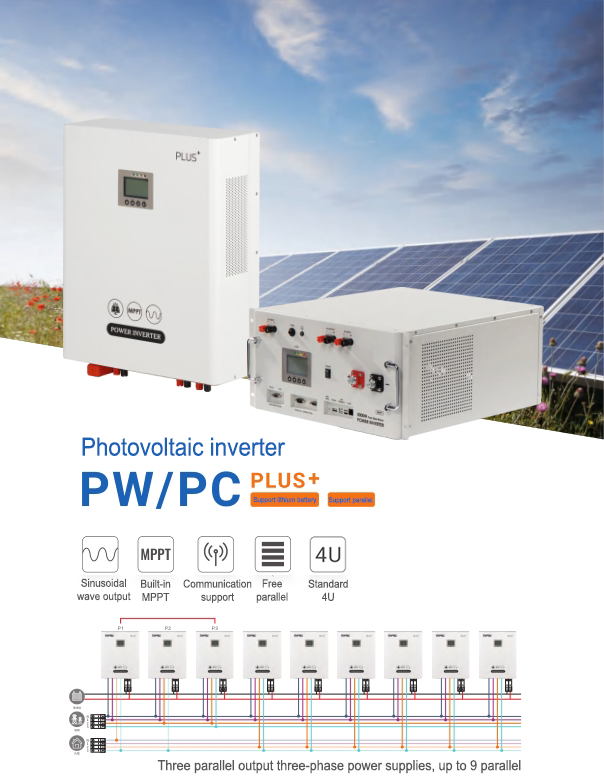

Photovoltaic inverter
Peculiarity：
♦ Dual phase inverter.
♦ Up to 9 parallel machines, the output power can reach 45KW.
♦ Three parallel machines can be set up three-phase power supply
♦ Backward compatible with traditional lead batteries, colloidal batteries.
♦ The panel integrates a variety of interfaces, supporting a variety of protocols of the host computer and battery pack.
♦ Integrated MPPT, maximize the press of the remaining power of the photovoltaic panel.
♦ Highly integrated, feature-rich, one machine at most.
♦ PC PLUS-5 Standard 4U rack specifications.
♦ Can be customized adjustment management battery charging and discharging strategy.
♦ Modular design, easy maintenance.
Technical parameter：
Q: How does a PV inverter work?
A:
Q: Does the PC PLUS-5 have to be installed on a 4U rack?
A:
This model is designed according to the standard 4U rack specifications and is recommended for cabinet integration scenarios such as communication base stations and small data centers; If wall mounted, please confirm the structural load-bearing capacity and heat dissipation space.
Q: Does the MPPT input power of 5.5kW mean that it can be connected to a super matched photovoltaic panel?
A:
Correct. Allow photovoltaic modules to be overloaded to 5.5 kW (DC) to increase power generation and improve system ROI under weak light or low temperature and high irradiation conditions in the morning and evening.
Q: Supports up to 9 parallel devices, are all functions synchronized?
A:
Yes, it is. Through the master-slave control architecture, 9 devices can achieve power sharing, unified charging and discharging strategies, and fault linkage protection; Any 3 units can also be configured as three-phase outputs to meet the needs of small three-phase loads.
