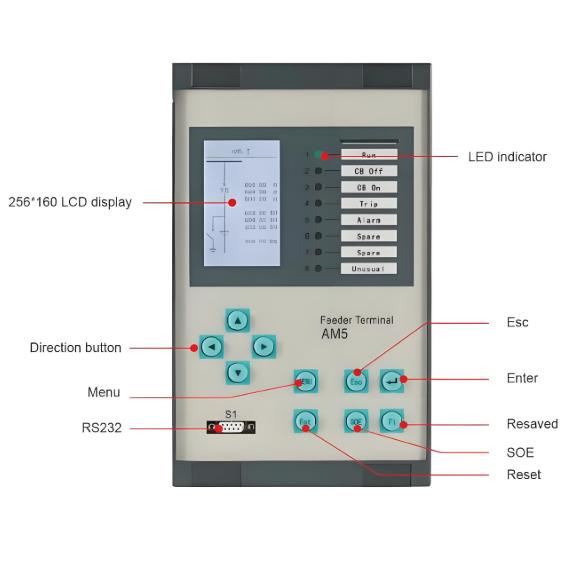

AM5SE Medium Voltage Line Protection Relay
Key attributes
| Brand | Wone Store |
| Model NO. | AM5SE Medium Voltage Line Protection Relay |
| Rated frequency | 50/60Hz |
| Series | AM5SE |
Product descriptions from the supplier
General
AM5 Series Protection Relay:A complete set of protection, related to the application;8 current input, 4 voltage input, 16 DI, 10 DO.
Feature
- A complete set of protection, related to the application;
- 8 current input, 4 voltage input, 16 DI, 10 DO;
- Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
- 2 RS485 serial communication, IEC 60870-5-101, IEC60870-5-103 and Modbus-RTU;
- 1 RS232 for user update;
- 1 GPS for GPS timing;
- More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;
- Powerful graphic programmable Logic.
- Line protection Motor protection Capacitor protection Feeder protection

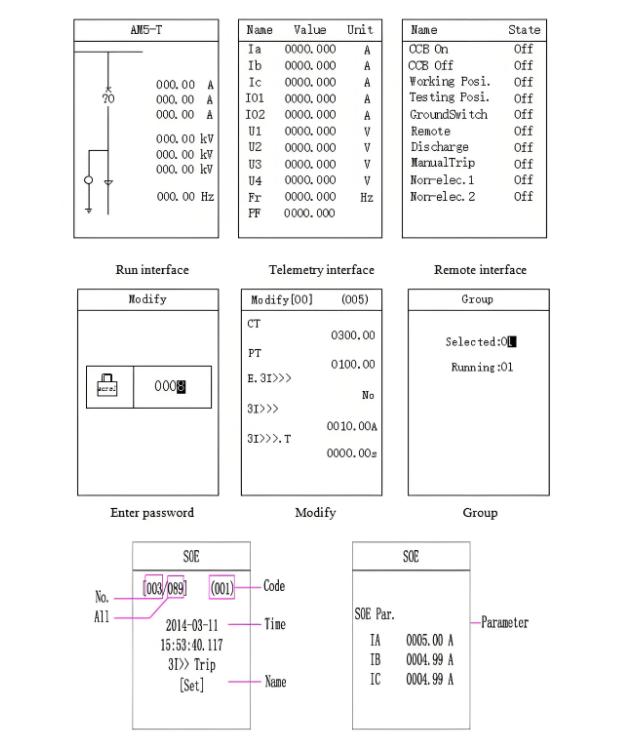

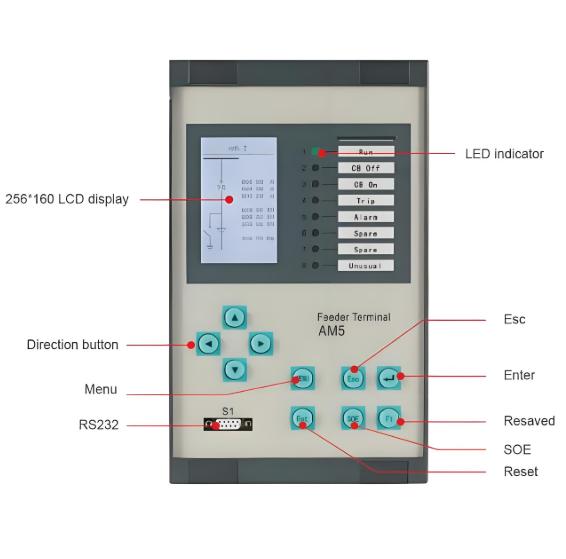

Display

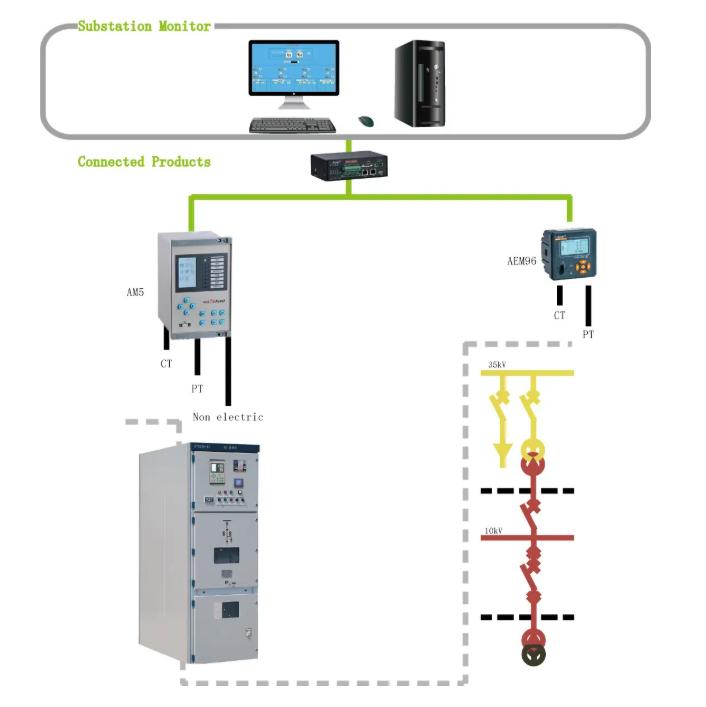

Connection

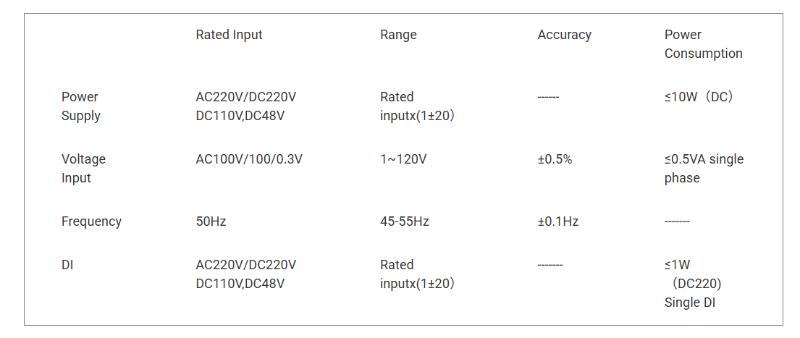

Technical Datasheet
