Central Power Conversion System（PCS, 1500V)

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone
Model NO.	Central Power Conversion System（PCS, 1500V)
Max.Efficiency	99%
AC output power	1250kVA
Max. DC voltage	1500V
Max. DC current	1403A
Max. AC output current	1046A
Series	Power Conversion System

Product Detail

Features

Max. efficiency up to 99%.
Full reactive power four-quadrant capability.
IP65 protection degree .
Black start ability.
Support VSG function.
Millisecond-level Power response to EMS/SCADA.
Three level topology.
Use alone or in combination with MV station.

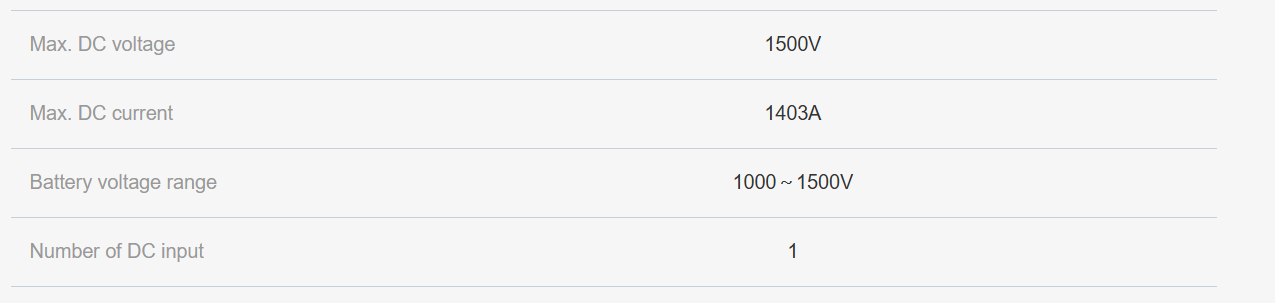

DC Parameters:

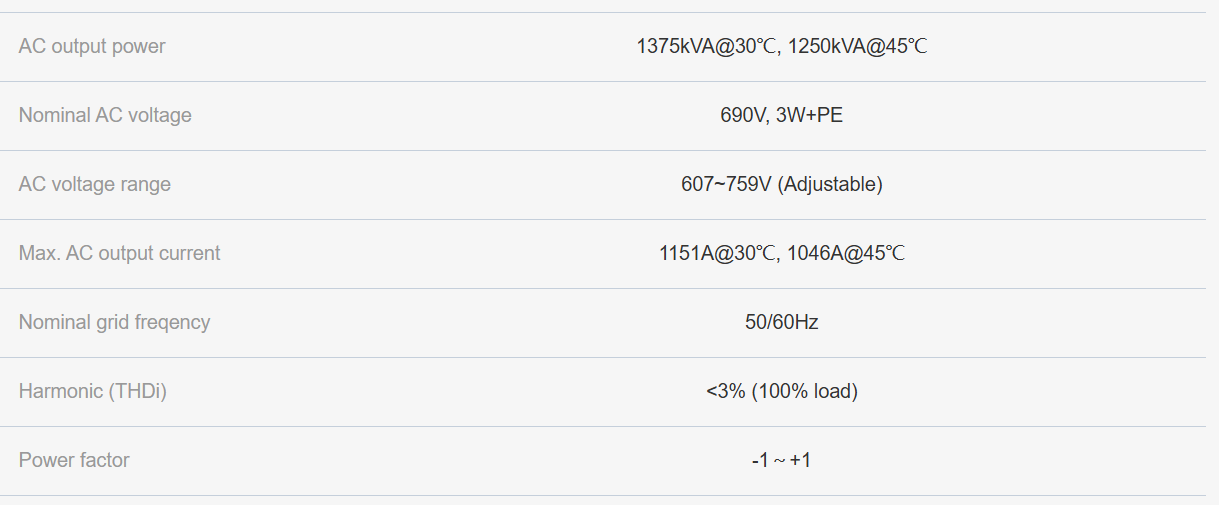

AC parameters (On-Grid):

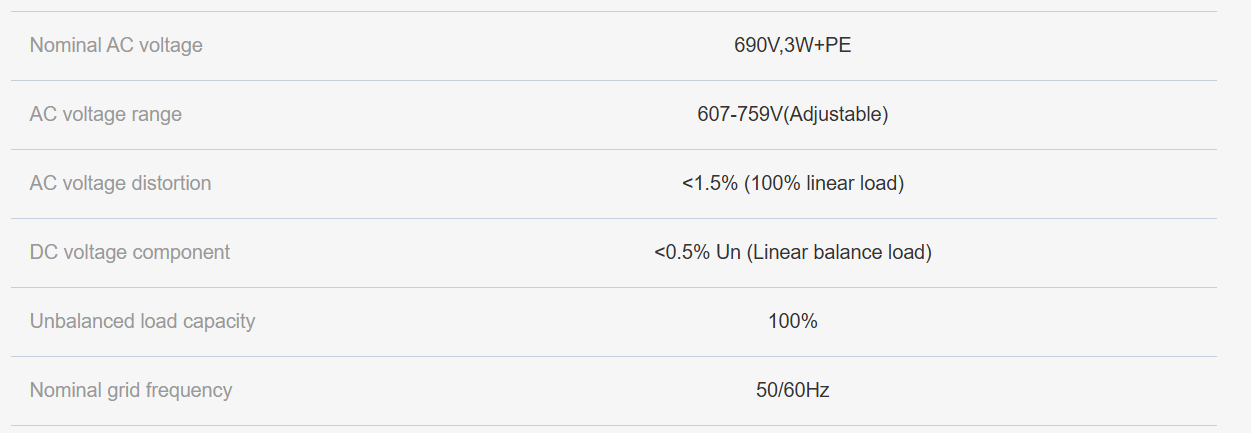

AC parameters (Off-Grid):

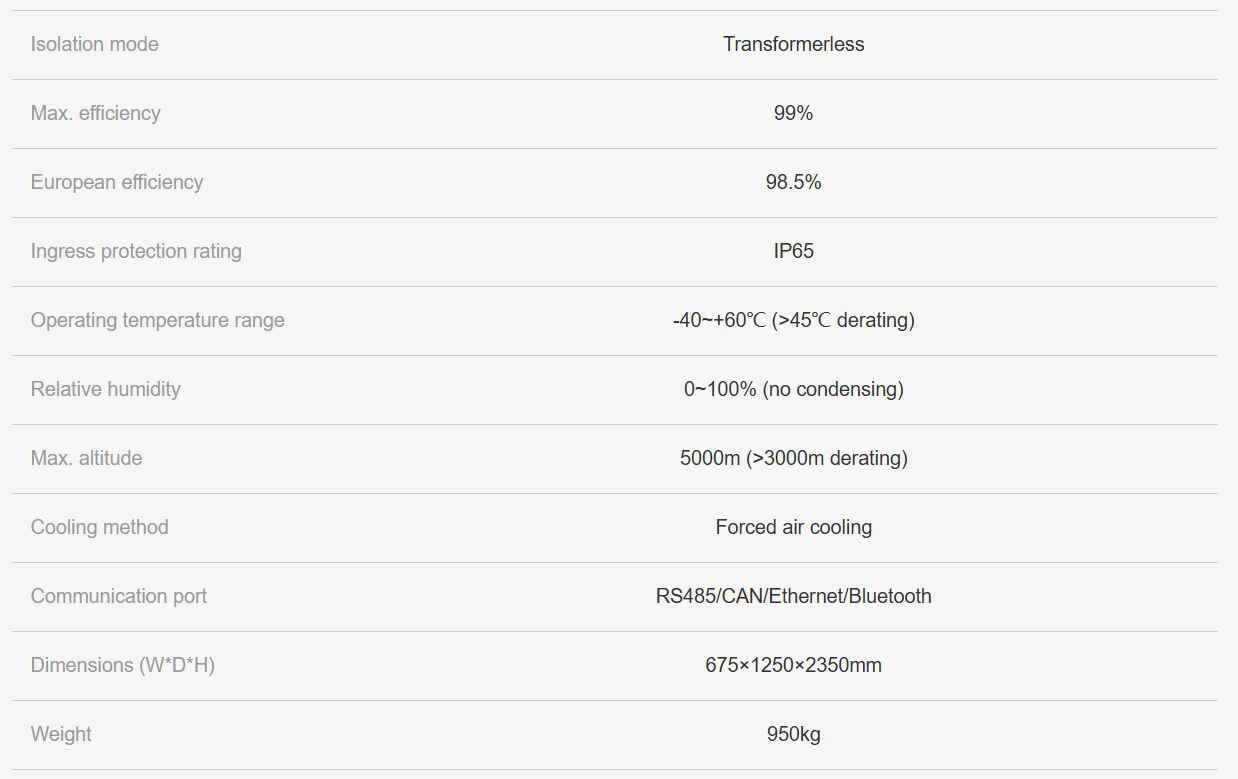

General data:

What is the VSG function of an energy storage converter？

The Basic Principles of Virtual Synchronous Generator (VSG)

Simulating the Behavior of Synchronous Generator:VSG technology enables the energy storage converter to simulate the dynamic characteristics of traditional synchronous generators, including inertial response, damping characteristics, and frequency regulation ability, through control algorithms.
Inertial Response:Synchronous generators possess mechanical inertia. When the grid frequency changes, the kinetic energy of the generator rotor can temporarily absorb or release energy, thus stabilizing the frequency. VSG simulates this inertial response by controlling the output power of the energy storage converter, enhancing the frequency stability of the grid.
Damping Characteristics:Synchronous generators have damping characteristics that can suppress frequency oscillations. VSG simulates this characteristic by introducing a damping control algorithm, further improving the stability of the system.
Frequency Regulation:VSG can actively participate in the frequency regulation of the grid. By adjusting the output power of the energy storage converter, it helps the grid to return to the rated frequency.
