| Brand | Switchgear parts |
| Model NO. | CJT1 Series AC Contactor |
| Rated normal current | 150A |
| Series | CJT1 |
Application
CJT1 series AC contactor (hereinafter referred to ascontactor) is suitable for the power system of AC 50Hzand rated working voltage up to 660V or the power system of rated working current up to 150A at 380Vand rated working current up to 100A at 660V underAC－3 utilization, to make and break circuit in a fardistance, or to frequently start and control AC motor.The contactor can be combined with thermal overloadrelay or electronic protection equipment to form intoan electromagnetic starter, to protect the circuit againstpossible overload. The products are in conformity withsuch standards as GB 14048.4 and IEC 60947-4-1.
Main Technical Data
Type |
Ui (V) |
Ue (V) |
Ith (A) |
Ie under intermittent periodic duty - AC-1 |
Ie under intermittent periodic duty - AC-2 |
Ie under intermittent periodic duty - AC-3 |
Ie under intermittent periodic duty - AC-4 |
AC-3 Pe (kW) |
CJT1-10 |
690 |
220 |
10 |
10 |
10 |
10 |
10 |
2.2 |
380 |
10 |
4 |
||||||
660 |
5 |
5 |
5 |
4 |
||||
CJT1-20 |
690 |
220 |
20 |
20 |
20 |
20 |
20 |
5.5 |
380 |
20 |
10 |
||||||
660 |
12 |
12 |
12 |
10 |
||||
CJT1-40 |
690 |
220 |
40 |
40 |
40 |
40 |
40 |
11 |
380 |
40 |
20 |
||||||
660 |
25 |
25 |
25 |
20 |
||||
CJT1-60 |
690 |
220 |
60 |
60 |
60 |
60 |
60 |
17 |
380 |
60 |
30 |
||||||
660 |
40 |
40 |
40 |
35 |
||||
CJT1-100 |
690 |
220 |
100 |
100 |
100 |
100 |
100 |
28 |
380 |
100 |
50 |
||||||
660 |
60 |
60 |
60 |
50 |
||||
CJT1-150 |
690 |
220 |
150 |
150 |
150 |
150 |
150 |
43 |
380 |
150 |
75 |
||||||
660 |
100 |
100 |
100 |
75 |

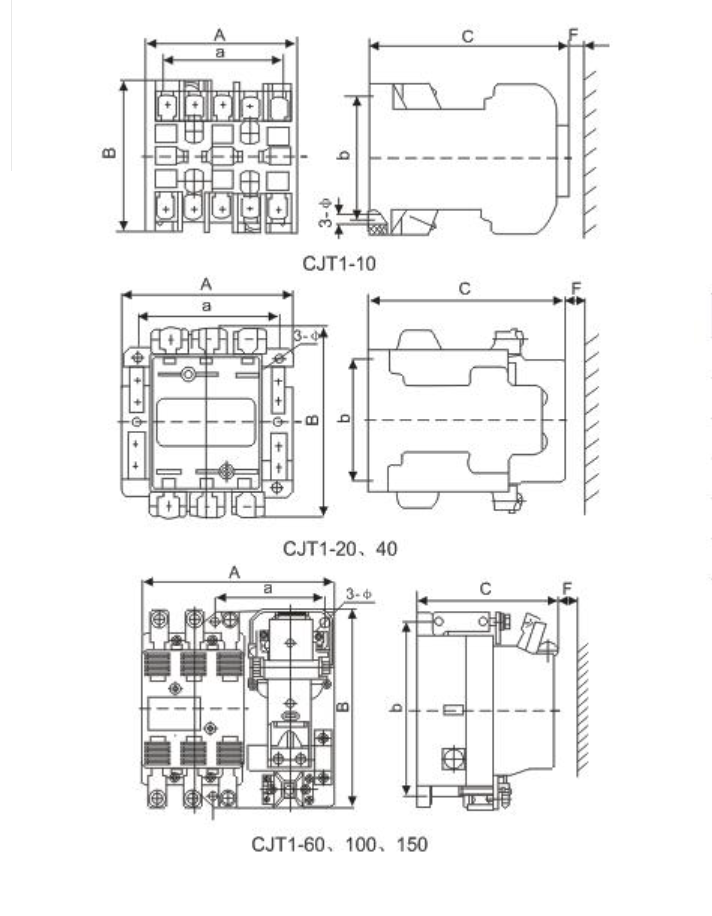

External And Installation Size
type |
Amax |
Bmax |
Cmax |
G |
H |
CJX2-115/152/170 |
158 |
120 |
132 |
90/110 |
130 |
CJX2-185/205 |
170 |
174 |
185 |
80 |
110/120 |
CJX2-225/245 |
170 |
198 |
185 |
80 |
110/120 |
CJX2-300/330 |
213 |
206 |
219 |
96 |
110/120 |
CJX2-410 |
213 |
206 |
219 |
80 |
170/180 |
CJX2-475 |
233 |
238 |
232 |
80 |
170/180 |
CJX2-620/630 |
309 |
304 |
255 |
181 |
180/190 |
-
