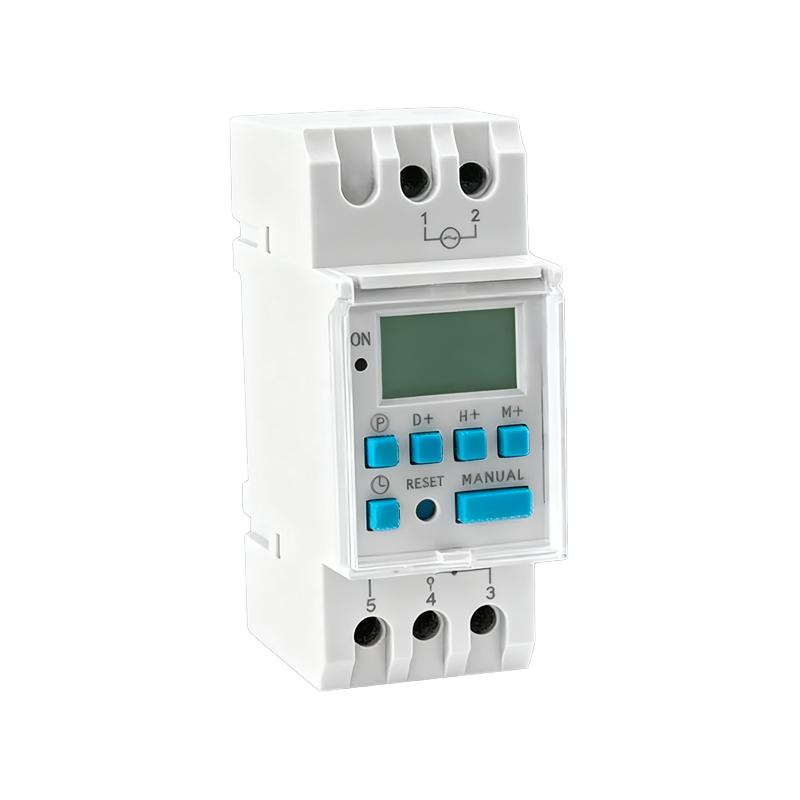

Digital Timer Switch THC 15A Programmable Periodic Timer
Key attributes
| Brand | Switchgear parts |
| Model NO. | Digital Timer Switch THC 15A Programmable Periodic Timer |
| Rated voltage | AC220V+10% |
| Rated normal current | 25A |
| Rated frequency | 50/60Hz |
| Series | THC-15A |
Product descriptions from the supplier
The products according to the time set by the user, automatically turn on and tum off the variety of electrical equipment. Control object can be lights, lightboxes, neon signs, production equipment, agriculture, aquaculture, warehouse exhaust dehumidifier automatically preheat optimal control products, such as radio and television equipment Built-in lithium battery, high-precision, industrial-grade chips, strong anti-gamming
| Item No | THC-15A,20A,25A |
| Operating Voltage | AC 220-240V 50Hz/60Hz (Other special voltages can be customized) |
| Power Consumption | 4.5VA |
| Operating Temperature | -10~+50℃ |
| Accuracy | ≤1s/d (25℃) |
| Power consumption | 16ON+16OFF |
| Minimum Setting Range | 1 Minute |
| Time Setting Range | 1 minute to 168 hours |
| Contact Capacity | Resistive:16N/250V AC(cosφ =1) 20A/250V AC(cosφ =1) 25A/250V AC(cosφ =1) |
| Storage Battery | 3 YEARS |
| Dimension | 81×36×66mm |
| Weight | 125g |
| QTY | 100 |
| G.W | 18 |
| N.W | 17 |
| MEAS | 390×220× 375 |
| Mounting | DIN rail mounting |
