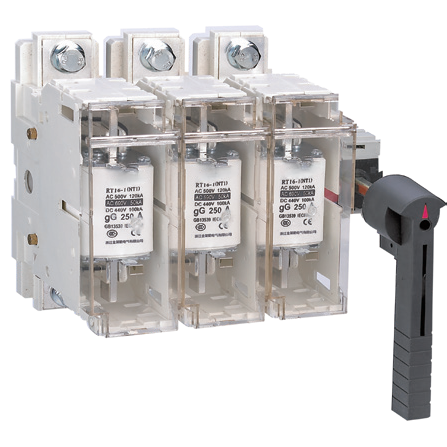

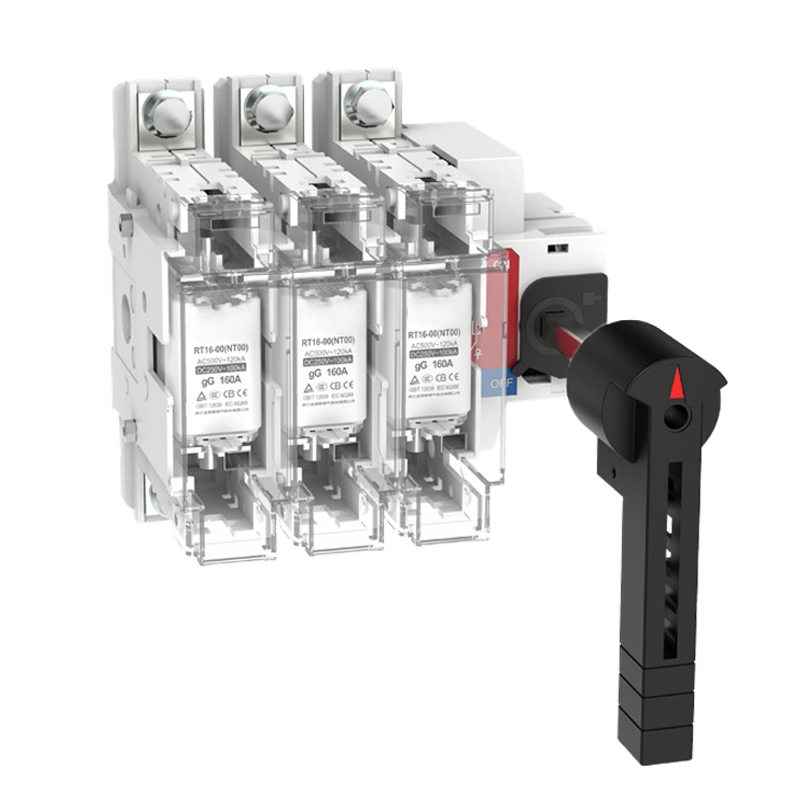

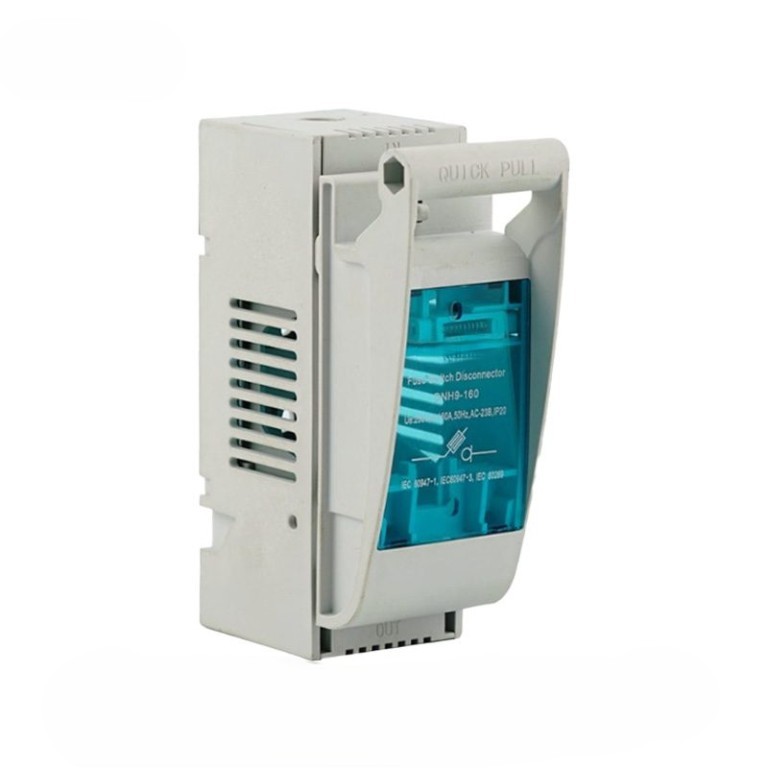

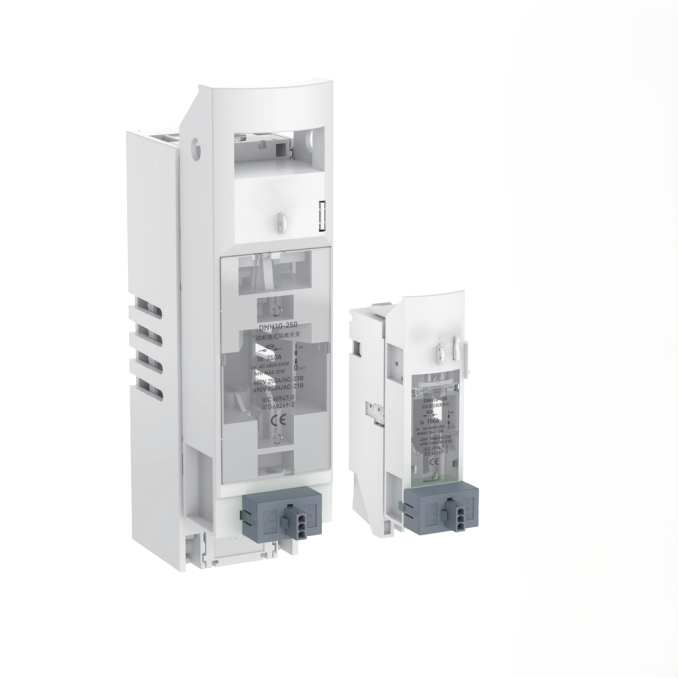

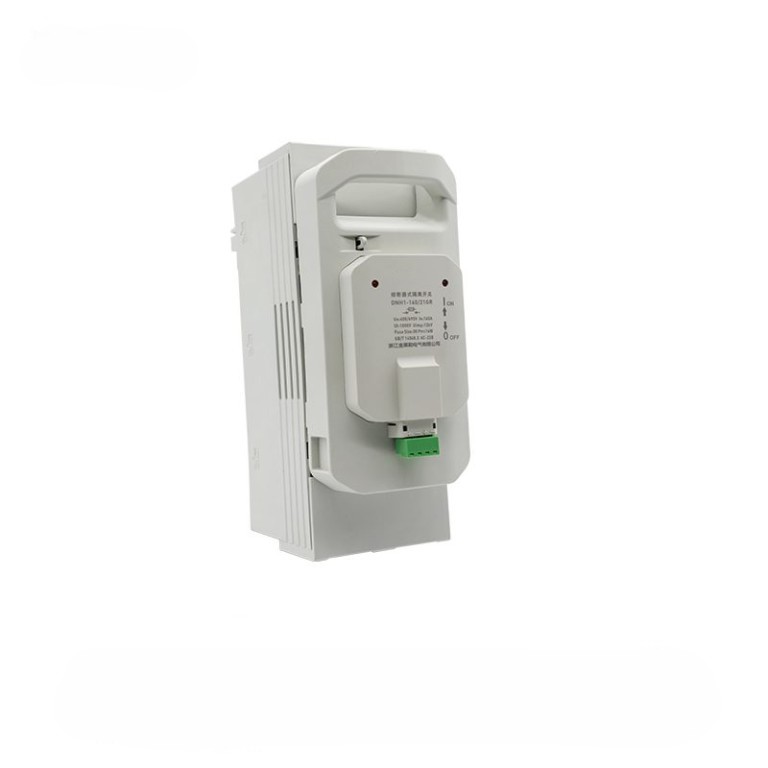

Disconnector Fuse Group HGLR Series, Fuse Switch Disconnector

Zhejiang Wone IT Service Co., Ltd...
2yrs + staff 1000+m² US$300000000+ China
  • Disconnector Fuse Group HGLR Series, Fuse Switch Disconnector
  • Disconnector Fuse Group HGLR Series, Fuse Switch Disconnector

Key attributes

Brand Switchgear parts
Model NO. Disconnector Fuse Group HGLR Series, Fuse Switch Disconnector
Rated normal current 630A
number of poles 4p
Series HGLR

Product descriptions from the supplier

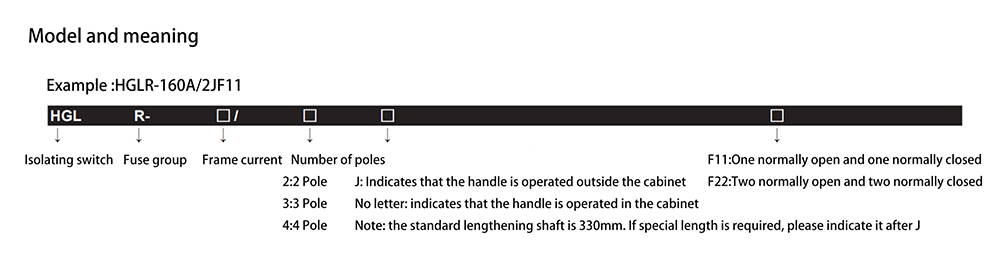

Description

Fuse Switch Disconnector Structure Characteristics

The Disconnector Fuse Group is the ideal solution for high-current connections and disconnections. Its modular design makes it easy to assemble according to your needs, while the integral structural design ensures stability. The spring energy storage mechanism allows for quick and easy connections and disconnections, even at high speeds.

  • HGLR-63~400 disconnector fuse group adopts modular design structure, which can be assembled freely according to customer requirements.

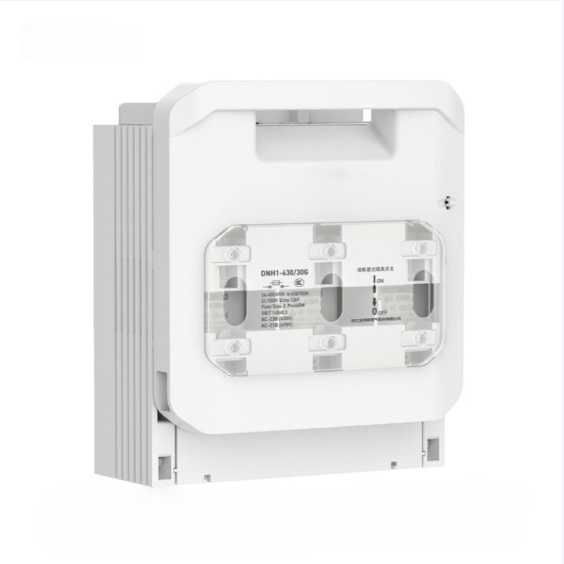

  • HGLR-630 adopts integral structural design to ensure the stability of product performance due to its high current.

The operating mechanism adopts a spring energy storage mechanism. When the product is connected and disconnected, the spring can be released instantly to realize rapid connection and disconnection (13.8 M / s), which is independent of the speed of the operating handle and greatly improves the ability to extinguish the arc.

The Disconnector Fuse Group is a safe and easy way to disconnect your electrical circuit. Made of high-quality glass fiber reinforced unsaturated polyester resin, this switch has a visual shield for easy disassembly and replacement of the fuse link. The Disconnector Fuse Group also has self-cleaning contacts for a reliable connection, and over-current and short-circuit safety protection functions.

Suitable for multiple low-voltage distribution cabinets, details include: GGD low-voltage fixed switchgear, GCK withdrawable low-voltage switchgear, MNS low-voltage withdrawable switchgear, XL-21 power cabinet, etc

International Standard

  • IEC60947-1 low voltage switchgear and controlgear Part 1: General

  • IEC60947-3 low voltage switchgear and control equipment, switches, isolators, disconnectors and fuse combinations

National Standard

  • GB/T 14048.1 general rules for low voltage switchgear and controlgear

  • GB/T 14048.3 low voltage switchgear and control equipment, switches, isolators, disconnectors and fuse combinations

  • GB/T 4208-1993 degrees of protection for enclosed enclosures

  • GB 13539.1 basic requirements for low voltage fuses

  • GB 13539.2 supplementary requirements for fuses used by full-time personnel of low voltage fuses

Normal Working and Installation Conditions

Operating Environment

The maximum ambient air temperature shall not exceed +40℃, with a minimum of -5℃. The average temperature inside the building should not exceed +35℃ within a 24 hour period. The installation site should not be located more than 2000m above sea level.

When the maximum temperature is above 40℃, the relative humidity of the air should not exceed 50%. However, at lower temperatures, higher relative humidity is allowed; for example, 90% at 20℃. If condensation due to temperature changes should occur, special measures should be put in place.

The pollution level of the surrounding environment is level 3.isolator switch on or off

Installation

The switch shall be installed in a place without significant shaking, shock vibration and rain and snow invasion. At the same time, the installation place shall be free of explosive dangerous medium, and the medium shall be free of gas and dust sufficient to corrode metal and damage insulation.

Isolating switch fuse group different frame fuses

Rated current of disconnector fuse group (A)

 Rated current of fuse link (A)

Fuse size
63

2、4、6、10、16、20、25、32、40、50、63

00C
160

2、4、6、10、16、20、25、32、40、50、63、80、100、125、160

00
250

16、20、25、40、50、63、80、100、125、160、200、250

1
400

50、63、80、100、125、160、200、250、315、400

2
630

200、250、315、400、500、630

3

Electrical and mechanical properties of HGLR-63~630 disconnector fuse group

Electrical parameters Agreed heating current Ith (A)

63

 160 250 400

630
  Fuse size

00C

 00 1 2

3
  Rated insulation voltage Ui

800

 800 800 800

800
  Dielectric strength (V)

2000

 2000 2000 2000

2000
  Rated impulse withstand voltage Uimp kV

8

 8 8 8

8
  Rated working current Ie (A)

415V

 AC-23B 63 160 250 400

630


690V

 AC-21B 40 100 200 315

400
  Limit short-circuit current（Ｉq）(ＫA)

20

 20 20 20

20
Making and breaking capacity (arms) Rated making capacity

630

 1600 2500 4000

6300
  Rated breaking capacity

504

 1280 2000 3200

5040
Operational



performance

 Mechanical life

1700

 1400 1400 800

800
  Electrical life

300

 200 200 200

200
Weight 3 Poles

1

 1.8 3.2 4.8

16
  4 Poles

1.,3

 2.3 4.5 6.1

19

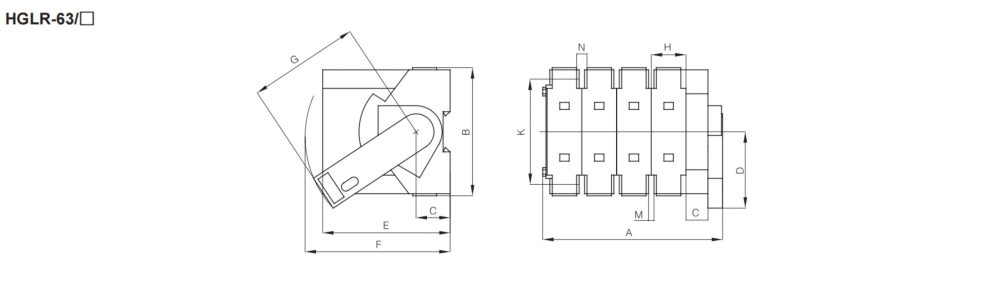

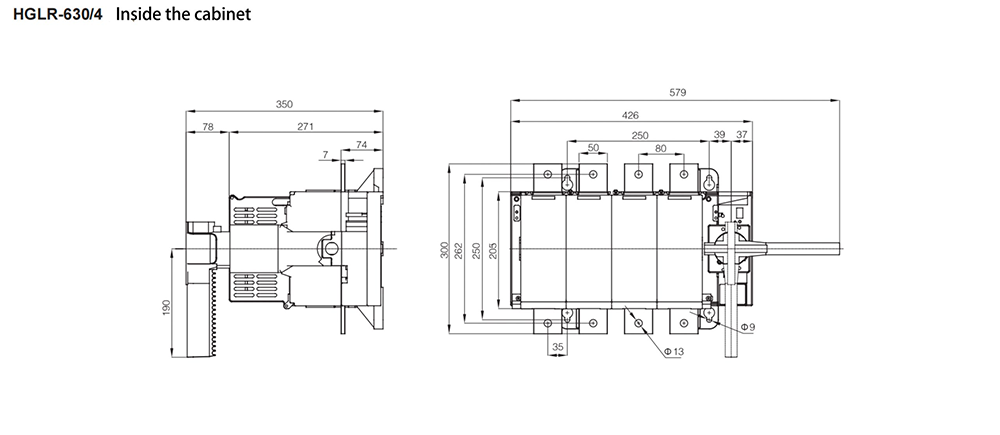

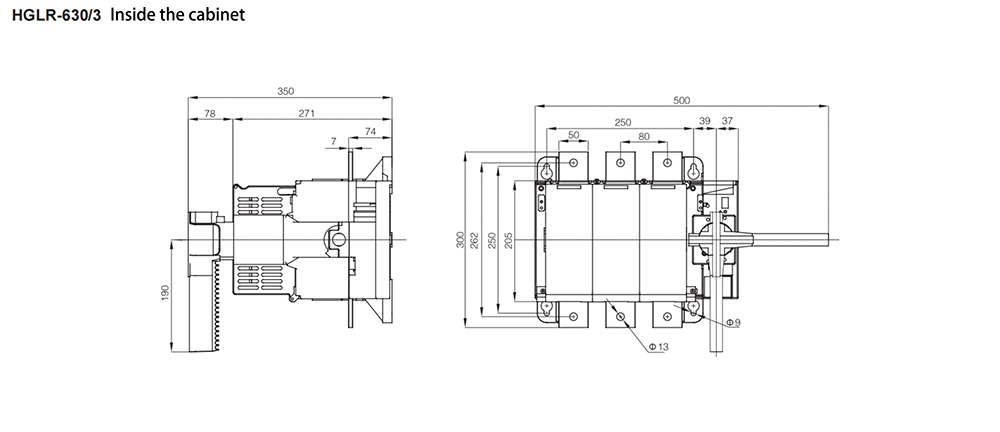

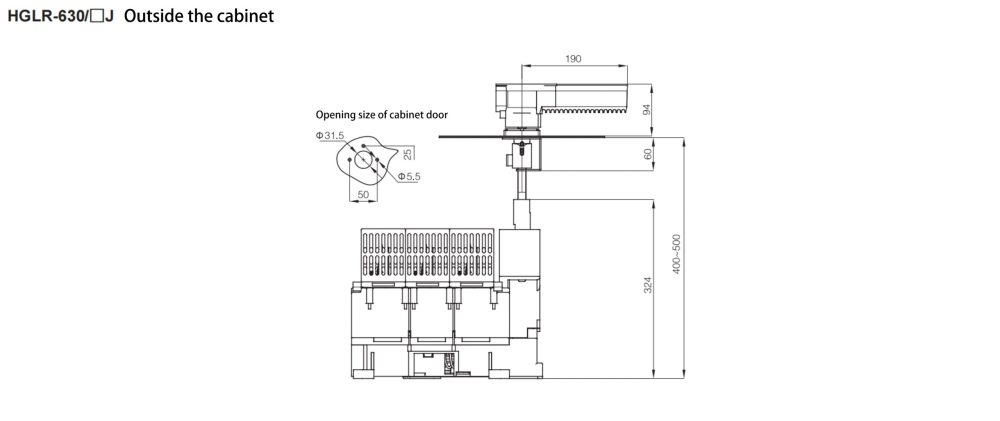

Fuse Switch Disconnector Outline and Installation Dimension (mm)

Specifications

A

 B C D E F G H K N

M
HGLR-63/3

134

 118 31 70 118 134 102 32 97 9.5 5
HGLR-63/4

166

 118 31 70 118 134 102 32 97 9.5

5

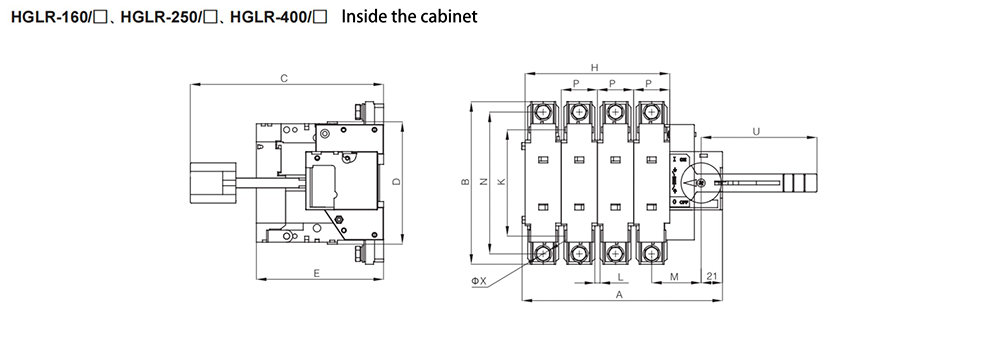

Fuse Switch Disconnector

Specifications

A

 B C D E H M K N P U L

ΦX
HGLR-160/3

165

 162 192 118 127 108 67 90 141 36 115 5

8.8
HGLR-160/4

200

 162 192 118 127 144 67 90 141 36 115 5

8.8
HGLR-250/3

236

 195 200 160 146 180 93 137 165 60 145 6

11
HGLR-250/4

296

 195 200 160 146 240 93 137 165 60 145 6

11
HGLR-400/3

281

 205 200 170 149 198 124 137 175 66 145 6

11
HGLR-400/4

347

 205 200 170 149 264 124 137 175 66 145 6

11

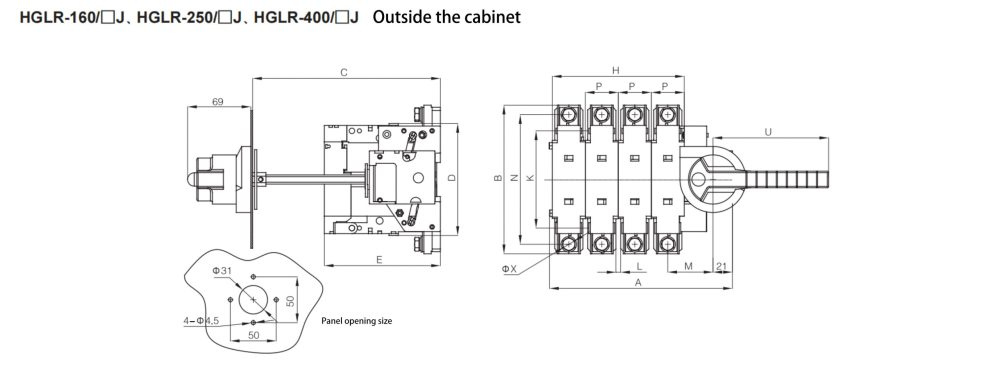

Fuse Switch Disconnector

Specifications

A

 B C D E H M K N P U L

ΦX
HGLR-160/3

165

 162 150~300 118 127 108 67 90 141 36 126 5 8.8
HGLR-160/4

200

 162 150~300 118 127 144 67 90 141 36 126 5

8.8
HGLR-250/3

236

 195 150~300 160 146 180 93 137 165 60 126 6

11
HGLR-250/4

296

 195 150~300 160 146 240 93 137 165 60 126 6

11
HGLR-400/3

281

 205 150~300 170 149 198 124 137 175 66 126 6

11
HGLR-400/4

347

 205 150~300 170 149 264 124 137 175 66 126 6

11
