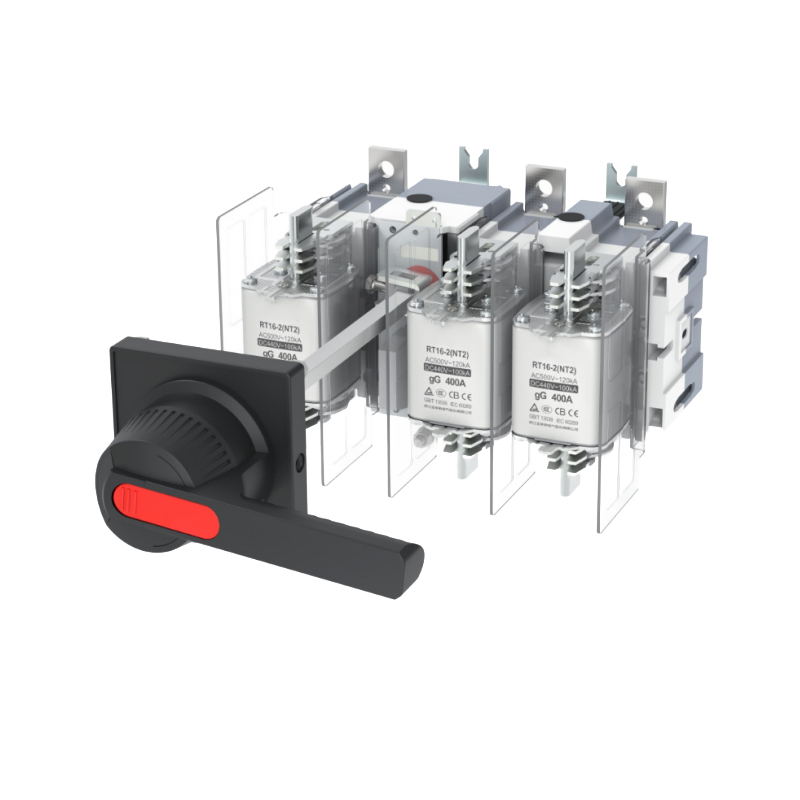

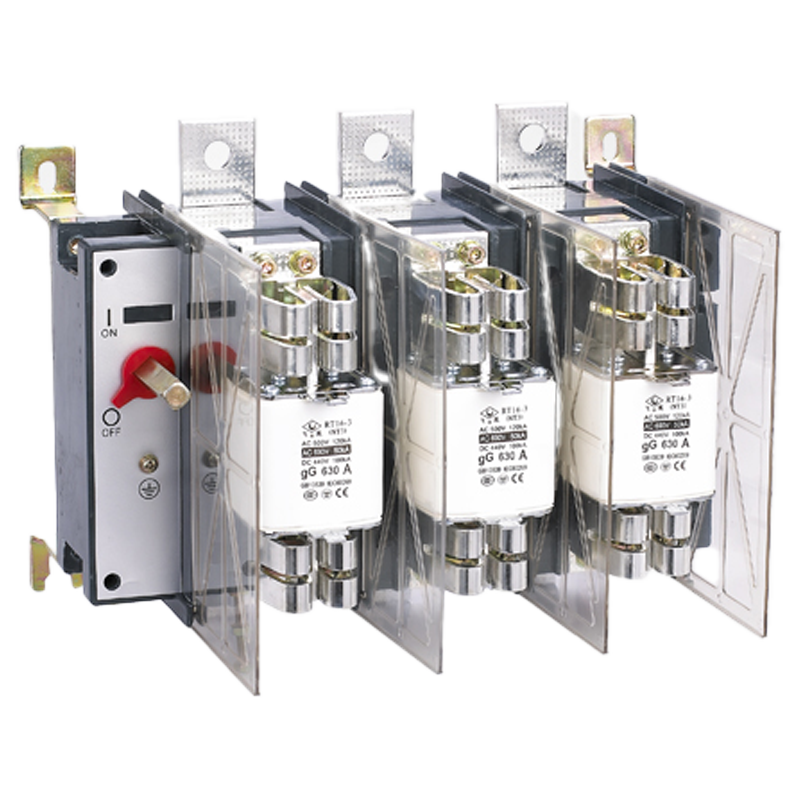

HH15 series Disconnector fuse group and disconnector

  • HH15 series Disconnector fuse group and disconnector
  • HH15 series Disconnector fuse group and disconnector

Key attributes

Brand Switchgear parts
Model NO. HH15 series Disconnector fuse group and disconnector
Rated normal current 250-2000A
number of poles 3,3N,4
Series HH15-QSA,QA, QP

Product descriptions from the supplier

Description

Disconnector fuse Product overview

HH15 series disconnecting switch fuse group and disconnecting switch (hereinafter referred to as switch) include QSA series, QA series and QP series, which are mainly applicable to distribution circuits and motor circuits with high short-circuit current, as the main switch or main switch operated infrequently by hand. QSA series switches can be used for circuit short-circuit protection.

The switch complies with GB/T 14048.3 and IEC60947-3 standards and is widely used in higher drawer type low-voltage complete sets.Suitable for multiple low-voltage distribution cabinets, details include: GGD low-voltage fixed switchgear, GCK withdrawable low-voltage switchgear, MNS low-voltage withdrawable switchgear, XL-21 power cabinet, etc

Disconnector fuse Normal working and installation conditions

The ambient air temperature shall not be higher than +40 ℃, not lower than -5 ℃, and the average temperature within 24 hours shall not exceed +35 ℃.

The altitude of the installation site shall not exceed 2000m.

When the ambient air temperature is +40 ℃, the relative humidity shall not exceed 50%. At a lower temperature, a higher relative humidity is allowed, for example, 90% at 20 ℃. Special measures shall be taken for condensation occasionally caused by temperature change.

The pollution level of the surrounding environment is 3 poles.

The switch shall be installed in a place without significant shaking, shock vibration and rain and snow invasion. At the same time, the installation site shall be free of explosive dangerous media, and the media shall be free of gas and dust sufficient to corrode metal and damage insulation.

Structural features

The switch adopts the front rotation operation mode, which is composed of operating mechanism, contact system, handle, etc.

The switch adopts a fully enclosed structure and is operated by spring energy storage. The closing and breaking speed of the switch is independent of the action speed of the operator, so as to ensure the safety of operators and equipment.

The switch is a contact system with unique performance. The moving contact system is directly formed from red copper bar. The moving contact piece is of bridge structure and has automatic adjustment function, so that it can effectively ensure line contact when connected with the static contact, thus ensuring the stability of product temperature rise.

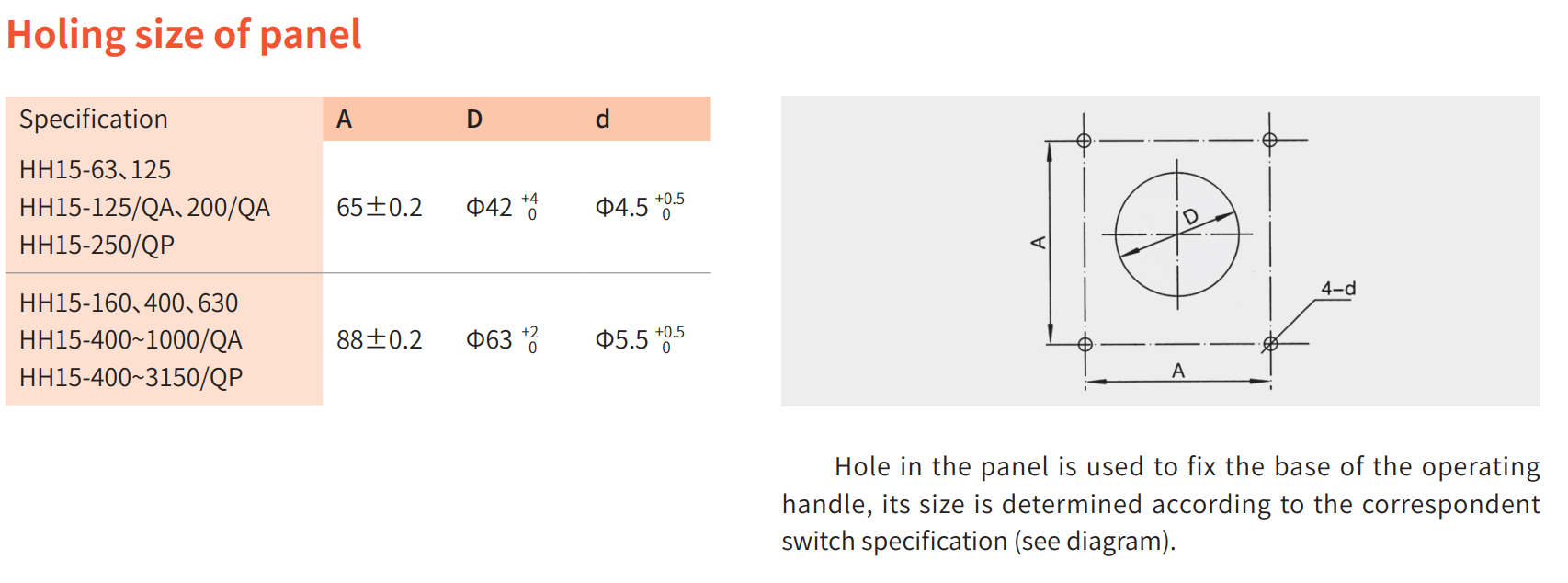

The operating handle can be installed on the switch cabinet door. When the cabinet door is closed, the handle fits with the operating lever of the switch. When the switch is in the closed position, the handle is interlocked with the cabinet door to prevent the cabinet door from opening.

The switch is also equipped with an extension shaft, and the special length can be customized separately.

Disconnector fuse Main technical parameters

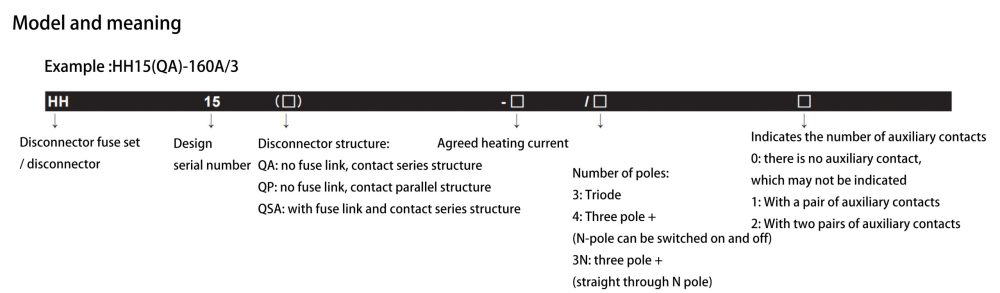

HH15(QSA)-□/□□











Specifications

QSA-125

QSA-160 QSA-250 QSA-400 QSA-630 QSA-800 QSA-1000

QSA-1250

Number of main poles

3,3N,4

3,3N,4 3,3N,4 3,3N,4 3,3N,4 3,3N,4 3,3N,4

3,3N,4

Rated insulation voltage Ui

V

1000 1000 1000 1000 1000 1000 1000 1000
Rated impulse withstand voltage Uimp

kV

12 12 12 12 12 12 12

12

Rated working voltage Ue

V

415/690V 415/690V 415/690V 415/690V 415/690V 415/690V 415/690V

415/690V

Agreed heating current

A

125 160 250 400 630 800 1000

1250

Rated working current

A

125/100 160/100 250/200 400/315 630/500 800/500 1000/800

1250/1000

Rated limiting short-circuit current

kA

100/50 100/50 100/50 100/50 100/50 100/50 100/50 100/50
Mechanical life

time

15000 12000 12000 12000 3000 3000 1000

1000

Electrical life

time

1000 300 300 300 200 150 100

100

Fuse size



00 00 1 2 3 3 RSO(RS3)-1250

4

Operating torque

Nm

7.5 16 16 16 30 30 38

38

Agreed heating current of auxiliary contact Ith 400V、AC-15A

4

4 4 4 4 4 4

HH15(QA)-□/□□

Specifications

QSA-125

QSA-160 QSA-200 QSA-400 QSA-630 QSA-1000 QSA-1250

QSA-1600

Number of main poles

3,3N,4

3,3N,4 3,3N,4 3,3N,4 3,3N,4 3,3N,4 3,3N,4 3,3N,4
Rated insulation voltage Ui

V

1000 1000 1000 1000 1000 1000 1000

1000

Rated impulse withstand voltage Uimp

kV

12 12 12 12 12 12 12 12
Rated working voltage Ue

V

415/690V 415/690V 415/690V 415/690V 415/690V 415/690V 415/690V

415/690V

Agreed heating current

A

125 160 200 400 630 1000 1250

1600

Rated working current:AC-23B

A

12 160 200/160 400 630/400 1000/630 1250/1000

1600/1000

Rated short-time withstand current Icw

Ka/1s

5 5 5 12.6 12.6 25 50

50

Mechanical life

time

15000 15000 12000 3000 3000 3000 1000

1000

Electrical life

time

1000 1000 1000 300 300 150 100

100

Operating torque

Nm

7.5 7.5 7.5 16 16 30 38

38

Agreed heating current of auxiliary contact Ith 400V、AC-15A

4

4 4 4 4 4 4

4

HH15(QP)-□/□□











Specifications

QSA-250

QSA-400 QSA-630 QSA-1000 QSA-1250 QSA-1600 QSA-2000

QSA-2500

Number of main poles

3,3N,4

3,3N,4 3,3N,4 3,3N,4 3,3N,4 3,3N,4 3,3N,4

3,3N,4

Rated insulation voltage Ui

V

1000 1000 1000 1000 1000 1000 1000

1000

Rated impulse withstand voltage Uimp

kV

12 12 12 12 12 12 12

12

Rated working voltage Ue

V

415/690V 415/690V 415/690V 415/690V 415/690V 415/690V 415/690V

415/690V

Agreed heating current

A

250 400 630 1000 1250 1600 2000

2500

Rated working current 690V:AC-21B

A

250 400 630 1000 1250 1600 2000

2500

Rated working current 415V:AC-22B

A

250 400 630 1000 1250 1600 2000

2500

Rated short-time withstand current Icw

Ka/1s

8 25 25 25 50 50 60

60

Mechanical life

time

15000 15000 12000 12000 3000 3000 500

2000

Electrical life

time

1000 1000 200 150 100 100 100

100

Operating torque

Nm

16 16 16 30 38 38 38

38

Agreed heating current of auxiliary contact Ith 400V、AC-15A

4

4 4 4 4 4 4

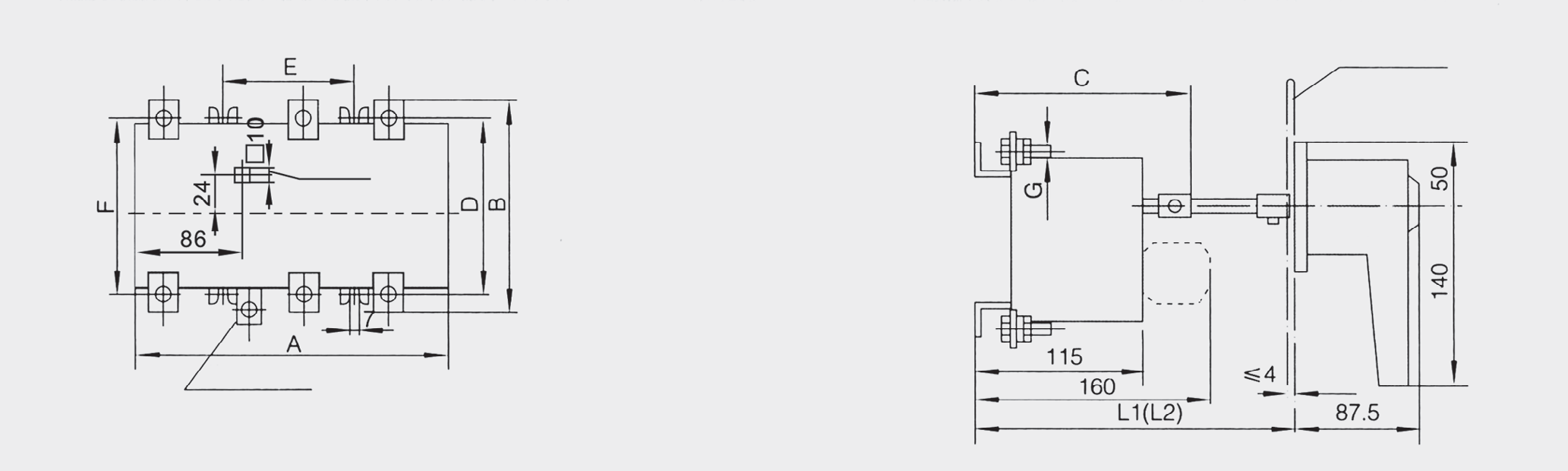

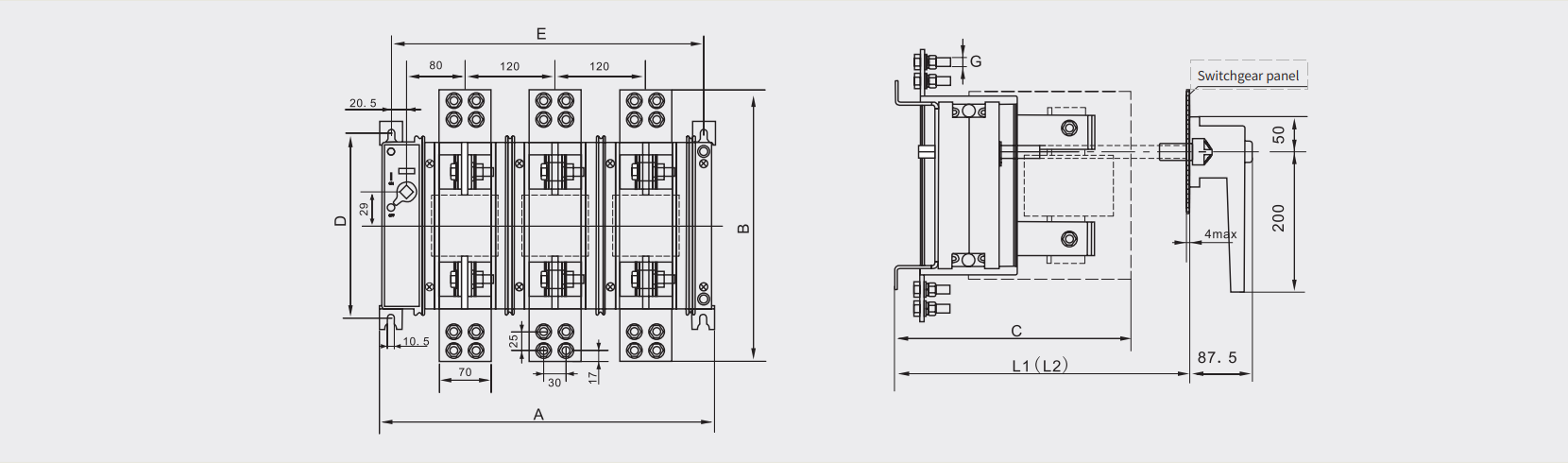

Overall & Installation dimension of HH15-63、125 ( see diagram, table 1)

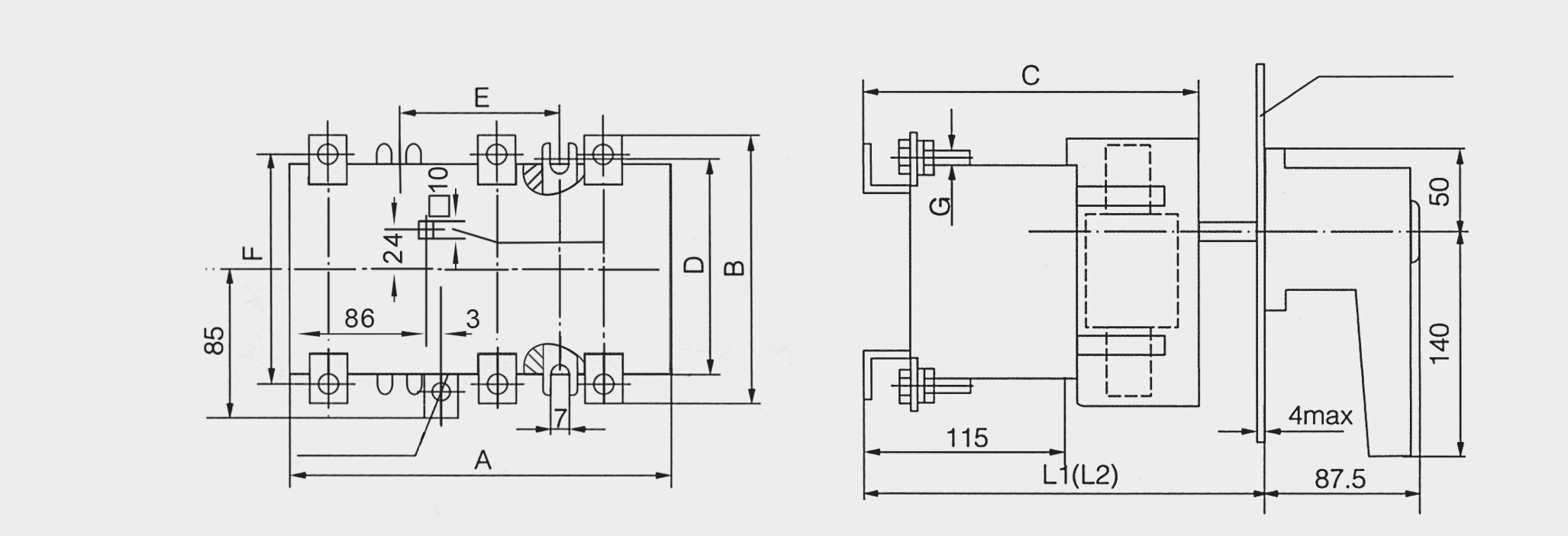

Overall & Installation dimension of HH15-160、250、400 ( see diagram, table 1)

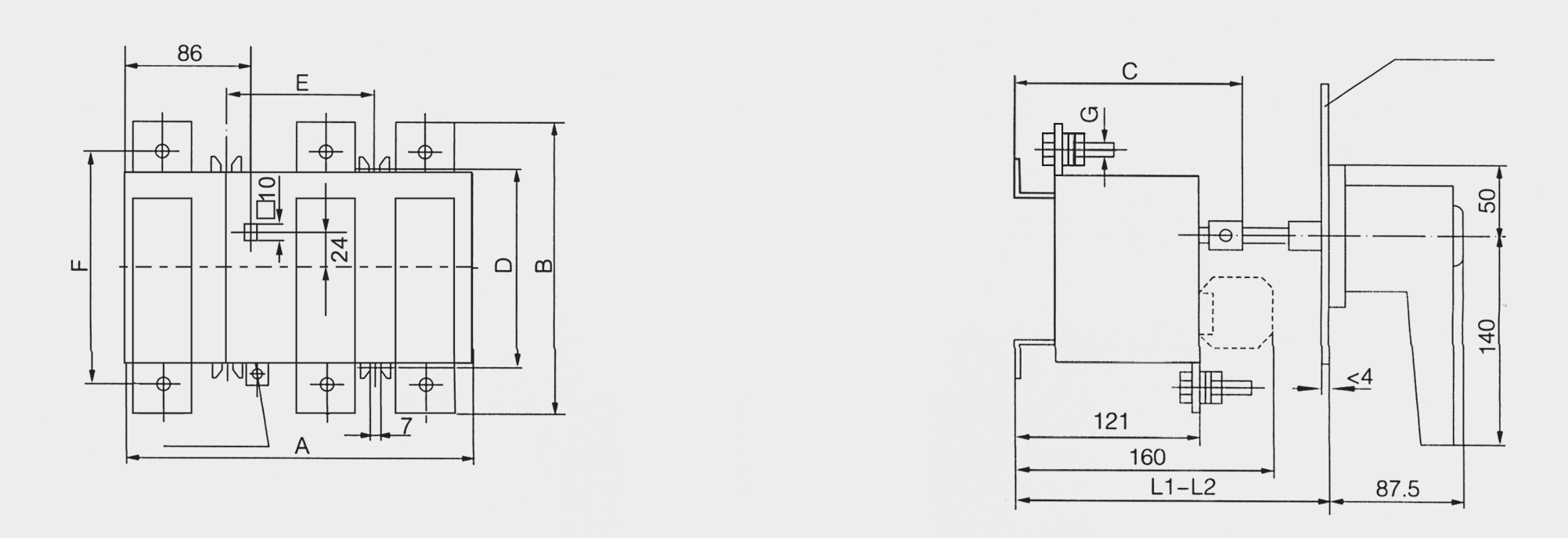

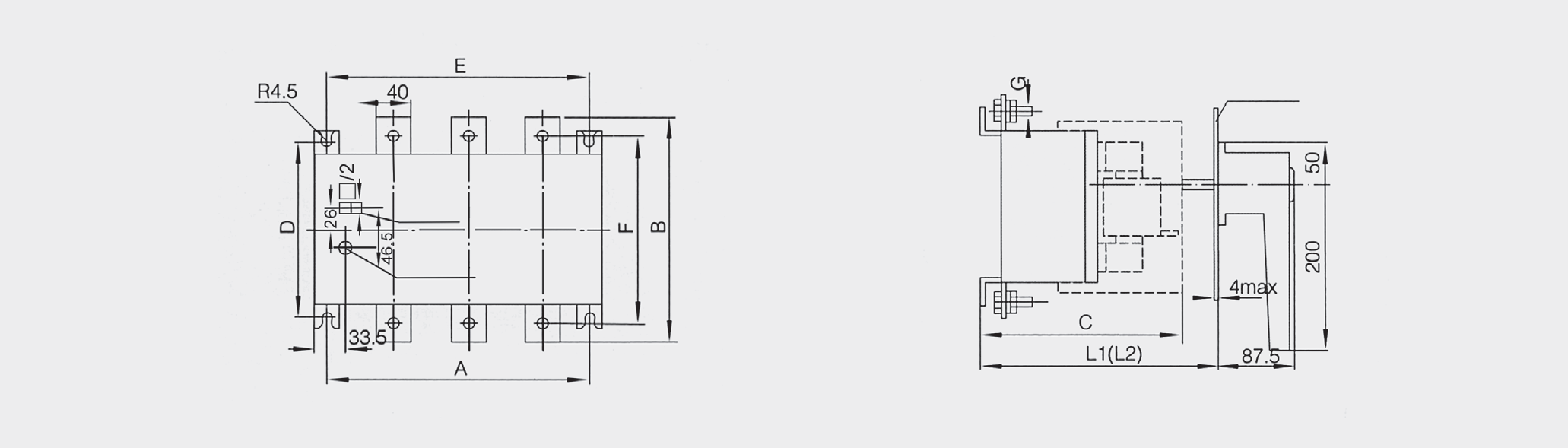

Overall & Installation dimension of HH15-630、800 ( see diagram, table 1)

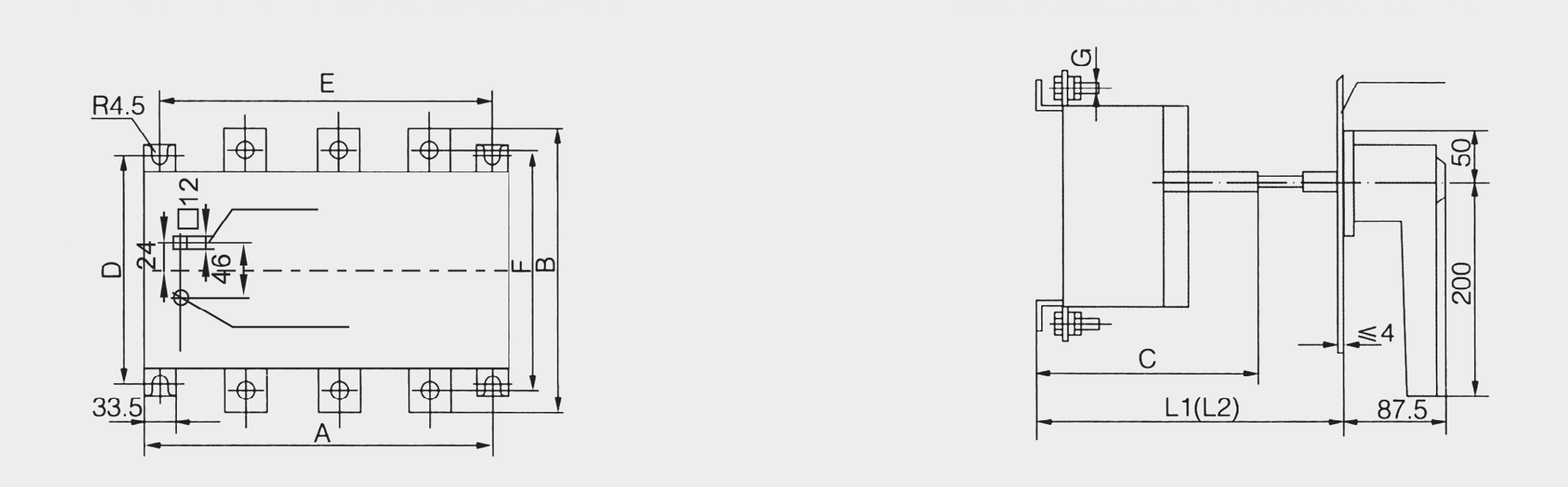

Overall & Installation dimension of HH15-1000、1250 ( see diagram, table 1)

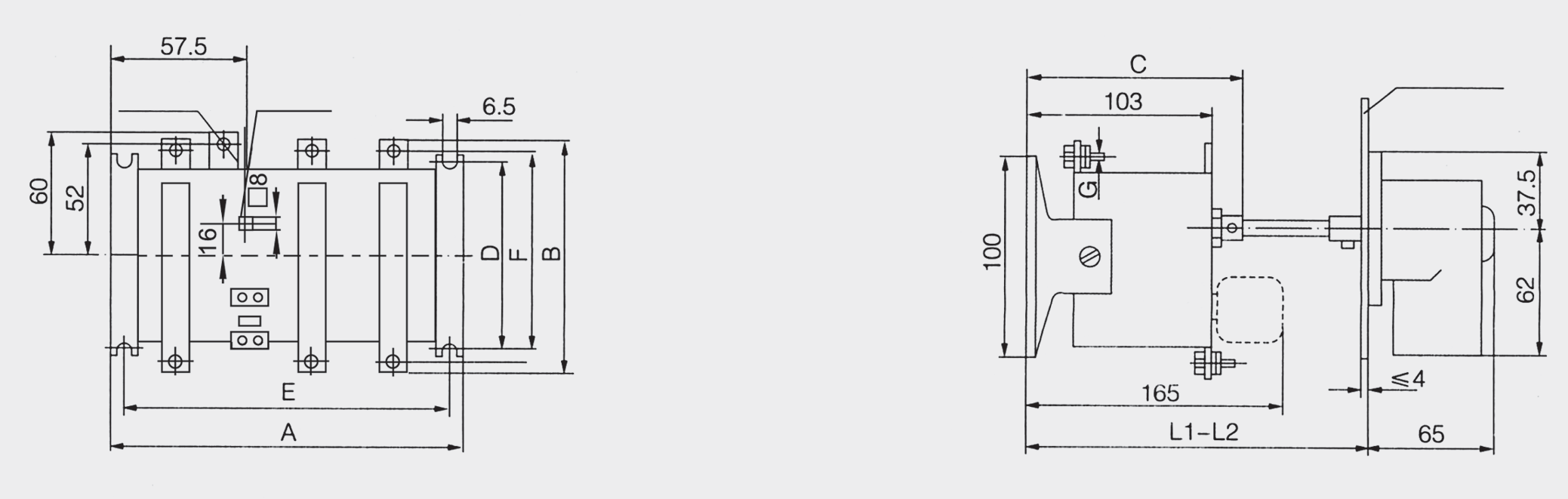

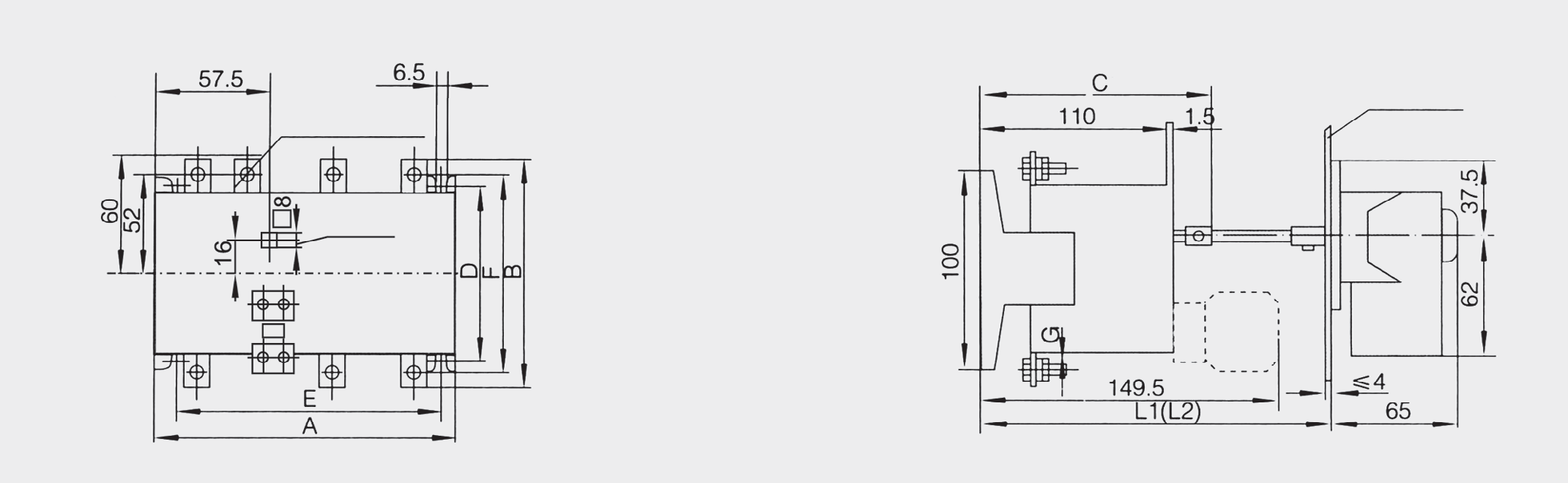

Overall & Installation dimension of HH15-125/QA、160/QA、200/QA ( see diagram, table 2)

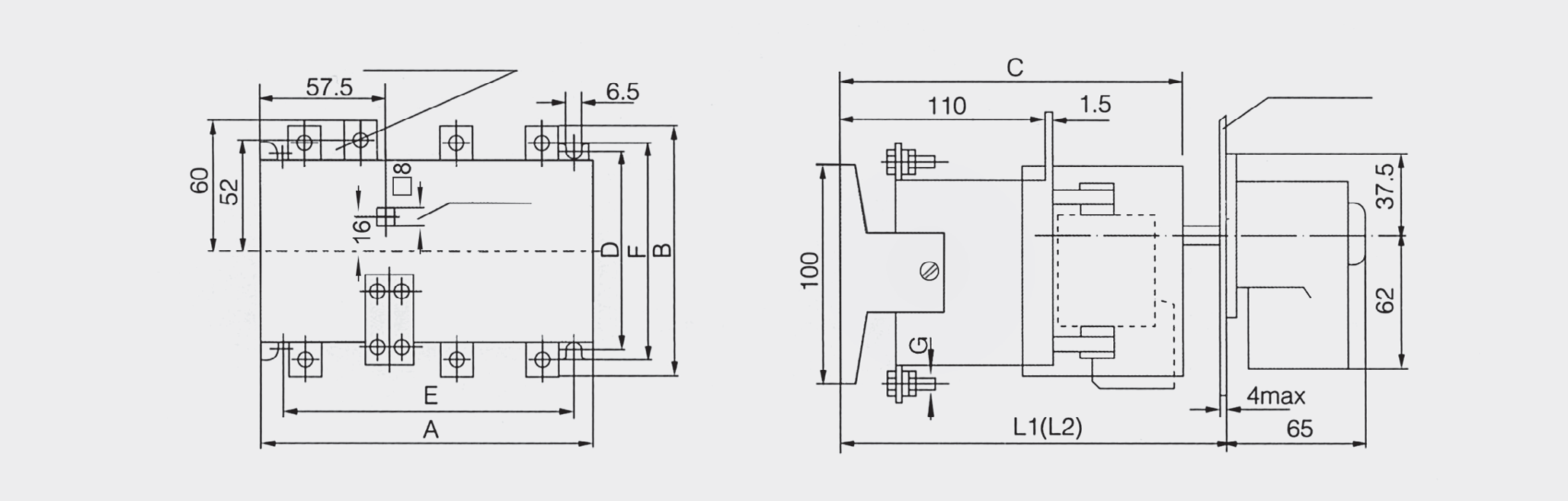

Overall & Installation dimension of HH15-400/QA、630/QA ( see diagram, table 2)

Overall & Installation dimension of HH15-1000/QA ( see diagram, table 2)

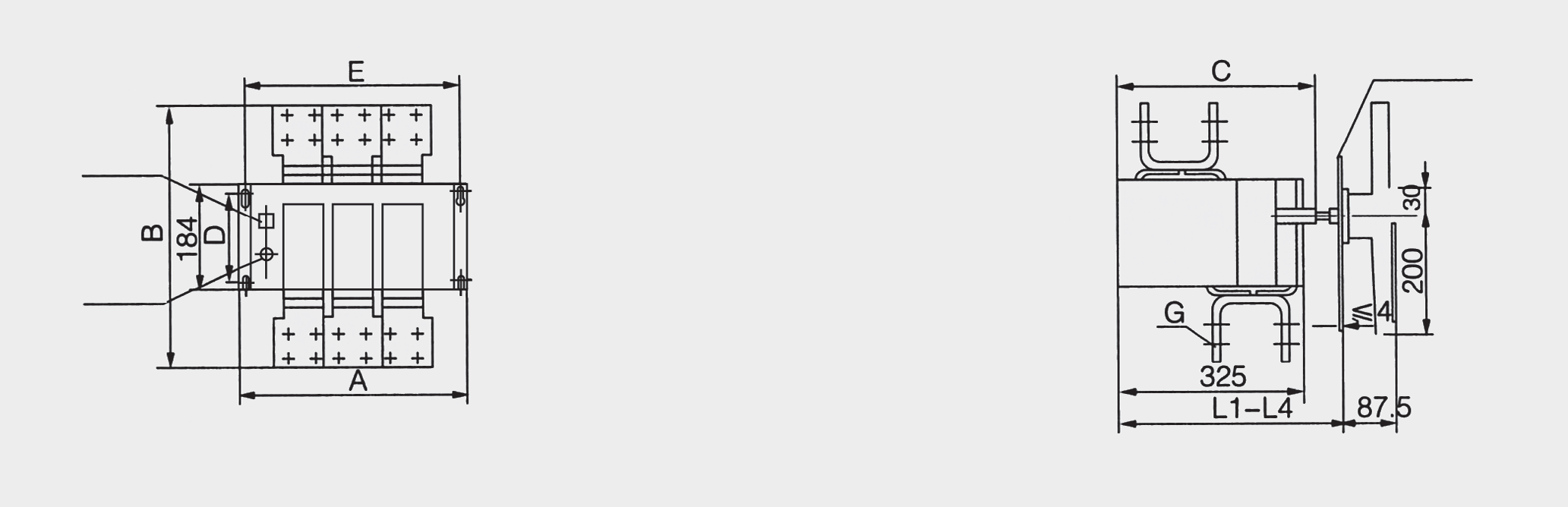

Overall & Installation dimension of HH15-250/QP ( see diagram, table 3)

Overall & Installation dimension of HH15-400/QP、630/QP、1000/QP ( see diagram, table 3

Overall & Installation dimension of HH15-1250/QP、1600/QP ( see diagram, table 3)

Overall & Installation dimension of HH15-2500/QP、3150/QP ( see diagram, table 3)
