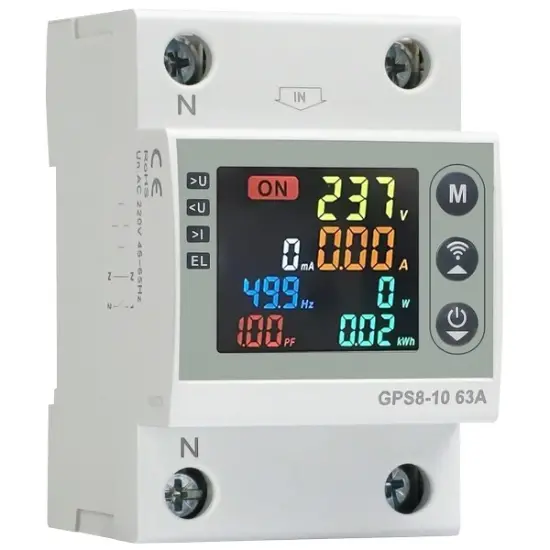

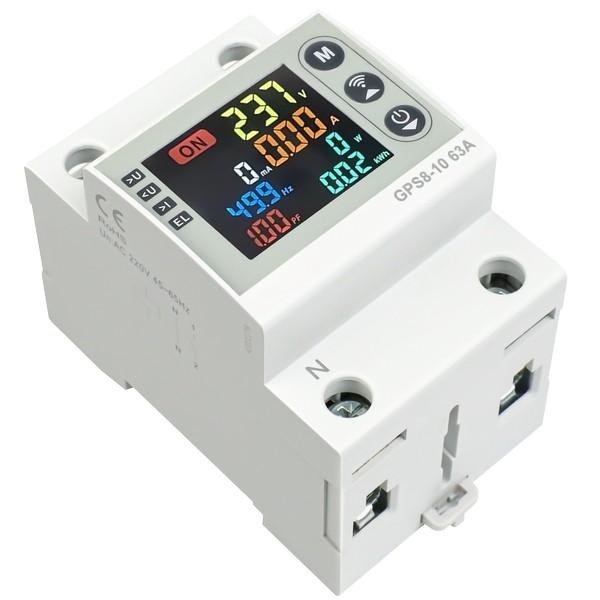

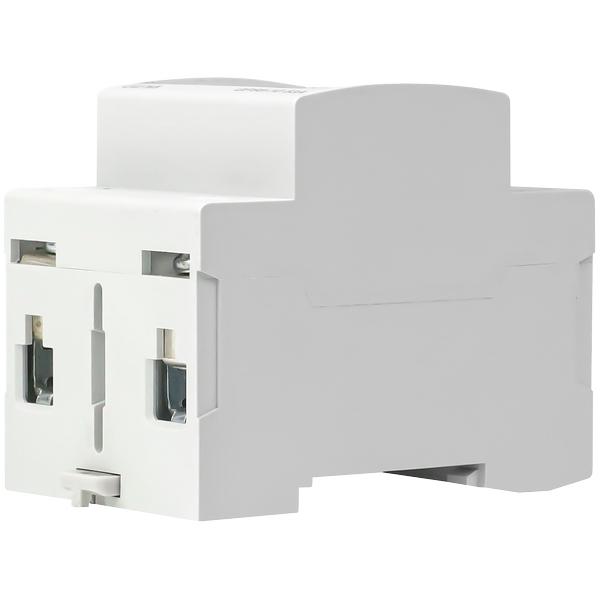

GPS8-10 Wifi Voltage and Current Protector
Key attributes
| Brand | Switchgear parts |
| Model NO. | GPS8-10 Wifi Voltage and Current Protector |
| Rated voltage | AC220V |
| Rated normal current | 32A |
| Rated frequency | 45Hz-65Hz |
| Series | GPS8-10 |
Product descriptions from the supplier
The GPS8-10 voltage/current protector is a high-performance device that integrates multifunctional power protection and intelligent monitoring, designed specifically for household electrical safety and energy management needs. The measurement technology and reliable protection mechanism adopted by the product not only ensure electrical safety, but also provide users with real-time power parameter monitoring function, making it an intelligent steward of the household power system.
General
Applications
-Overvoltage, undervoltage, overcurrent and leakage protection for household equipment, while displaying frequency, power factor, power, and electricity co
Function Features
-Overvoltage, undervoltage, overcurrent, and leakage protection.
-Special metering chips are used to detect voltage, current, electricity
consumption and power.
-Double bus wiring design stronger ability.
-Over / under voltage value and over-current value can be set.
-Self reset after fault.

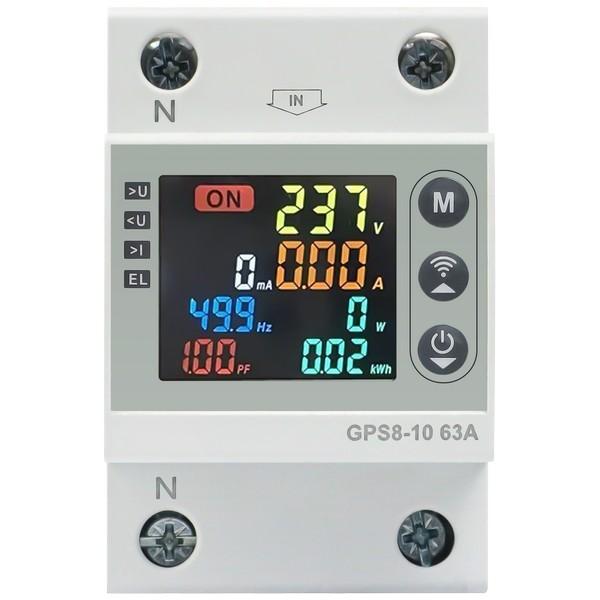

-Large color screen display.
-DIN rail mounting.
Model |
GPS8-10 Wifi Voltage and Current Protector |
Function |
Over voltage, under voltage and over current |
Rated supply voltage |
AC220V(L-N) |
Rated supply frequency |
45~65Hz |
Operation voltage range |
80V~400V(L-N) |
Rated operational current |
32A,40A,50A,63A,80A（AC1） |
Burden |
AC max.3VA |
Over voltage operation value |
OFF,230V~300V |
Under voltage operation value |
140V~210V,OFF |
Over/under voltage action delay |
0.1s~10s |
Over current operation value |
1~32A,40A,50A,63A,80A |
Over current action delay |
2s~600s |
Leakage current value |
OFF,10mA~400mA |
Leakage reclosing count |
OFF,1~20,ON |
Power-up delay |
2s~600s |
Reset time |
2s~900s |
Measurement error |
≤1% |
Electrical life |
1x104 |
Mechanical life |
1x106 |
Operating temperature |
-20℃ ~ +60℃ |
Storage temperature |
-35℃ ~ +75℃ |
Mounting/DIN rail |
Din rail EN/IEC 60715 |
Protection degree |
IP40 for front panel/IP20 terminals |
Operating position |
any |
Overvoltage cathegory |
III. |
Pollution degree |
2 |
Dimensions |
82*54*68mm |
Weight |
205g |
The core functions and advantages focus on four dimensions: intelligent control, comprehensive protection, precise monitoring, and convenient adaptation:
·WiFi intelligent interconnection: Supports mobile APP remote control (on/off, parameter setting), real-time data monitoring and remote fault alarm, adapting to smart home scenarios, and ensuring electrical safety even when unattended.
·Three-in-one precise protection: Integrates overvoltage, undervoltage and overcurrent protection with customizable protection thresholds. The dual-bus wiring design improves power supply stability, quickly cutting off the fault circuit to avoid equipment burnout.
·Full-parameter precise monitoring: Real-time monitoring of voltage, current, power and energy consumption with a measurement error ≤1%. The digital display and APP show synchronized data, making energy management clear at a glance.
·Convenient installation and humanized design: 35mm standard DIN rail plug-and-play, compact size (refer to the same series 82×36×68mm) and light weight; automatic reset after fault eliminates the need for manual intervention. With an operating temperature range of -20℃~+60℃ and a protection level of IP40 (front panel)/IP20 (terminals), it adapts to various usage environments.
The GPS8-10 is a multi-functional power distribution device integrating WiFi intelligent control and three-in-one protection (overvoltage, undervoltage, overcurrent), specially designed for residential and small commercial scenarios. Compatible with AC 220V rated voltage and 45~65Hz frequency, it covers a working voltage range of 80V~400V. Adopting 1-MODULE standard DIN rail installation, it is equipped with a dedicated metering chip (measurement error ≤1%), supporting real-time monitoring of voltage, current, power and energy consumption. It can realize remote control, parameter setting and fault alarm through mobile APP, featuring dual-bus wiring design and automatic reset function (adjustable reset time), equipped with digital display and LED fault indicators, fully protecting electrical equipment and electrical safety.
