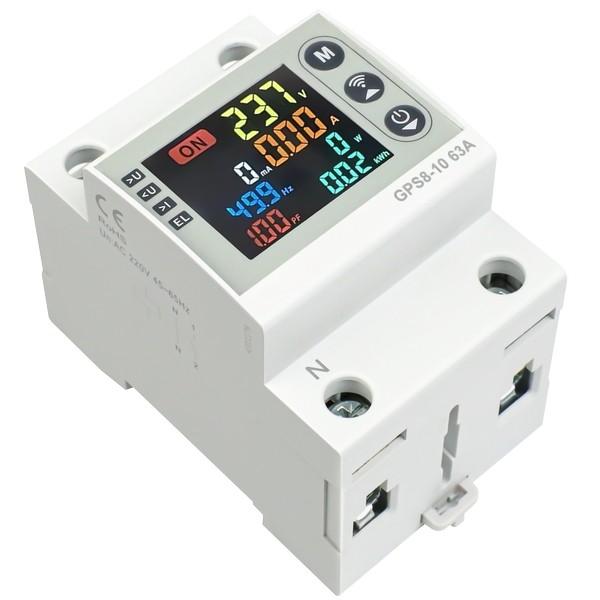

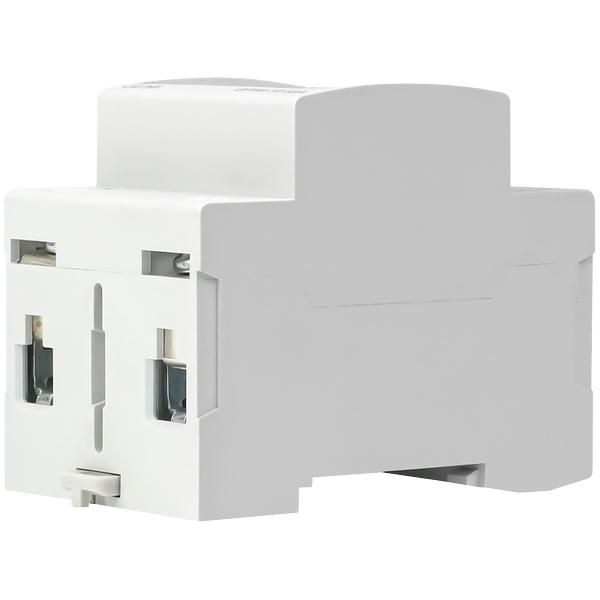

GPS8-10 Wifi Voltage and Current Protector
Key attributes
| Brand | Switchgear parts |
| Model NO. | GPS8-10 Wifi Voltage and Current Protector |
| Rated voltage | AC220V |
| Rated normal current | 32A |
| Rated frequency | 45Hz-65Hz |
| Series | GPS8-10 |
Product descriptions from the supplier
The GPS8-10 voltage/current protector is a high-performance device that integrates multifunctional power protection and intelligent monitoring, designed specifically for household electrical safety and energy management needs. The measurement technology and reliable protection mechanism adopted by the product not only ensure electrical safety, but also provide users with real-time power parameter monitoring function, making it an intelligent steward of the household power system.
General
Applications
-Overvoltage, undervoltage, overcurrent and leakage protection for household equipment, while displaying frequency, power factor, power, and electricity co
Function Features
-Overvoltage, undervoltage, overcurrent, and leakage protection.
-Special metering chips are used to detect voltage, current, electricity
consumption and power.
-Double bus wiring design stronger ability.
-Over / under voltage value and over-current value can be set.
-Self reset after fault.

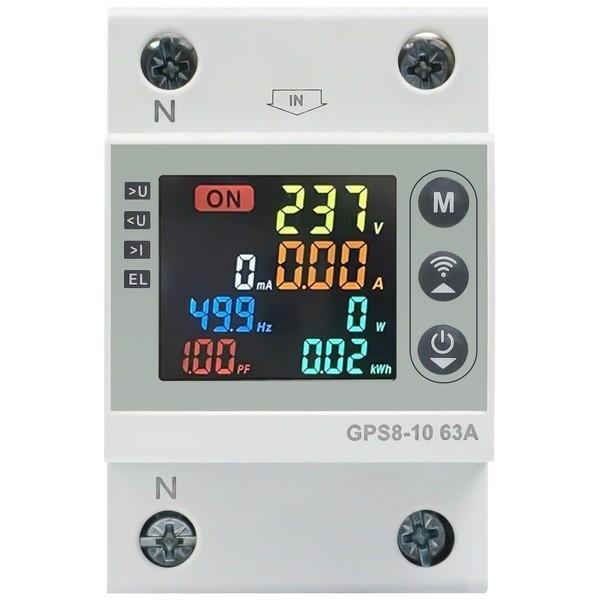

-Large color screen display.
-DIN rail mounting.
| Model | GPS8-10 Wifi Voltage and Current Protector |
| Function | Over voltage, under voltage and over current |
| Rated supply voltage | AC220V(L-N) |
| Rated supply frequency | 45~65Hz |
| Operation voltage range | 80V~400V(L-N) |
| Rated operational current | 32A,40A,50A,63A,80A（AC1） |
| Burden | AC max.3VA |
| Over voltage operation value | OFF,230V~300V |
| Under voltage operation value | 140V~210V,OFF |
| Over/under voltage action delay | 0.1s~10s |
| Over current operation value | 1~32A,40A,50A,63A,80A |
| Over current action delay | 2s~600s |
| Leakage current value | OFF,10mA~400mA |
| Leakage reclosing count | OFF,1~20,ON |
| Power-up delay | 2s~600s |
| Reset time | 2s~900s |
| Measurement error | ≤1% |
| Electrical life | 1×104 |
| Mechanical life | 1×106 |
| Operating temperature | -20℃ ~ +60℃ |
| Storage temperature | -35℃ ~ +75℃ |
| Mounting/DIN rail | Din rail EN/IEC 60715 |
| Protection degree | IP40 for front panel/IP20 terminals |
| Operating position | any |
| Overvoltage cathegory | III. |
| Pollution degree | 2 |
| Dimensions | 82*54*68mm |
| Weight | 205g |
