Integrated High Voltage Cabinet Test Device
Key attributes
| Brand | Switchgear parts |
| Model NO. | Integrated High Voltage Cabinet Test Device |
| type | Integrated testing platform |
| Series | HB68GG |
Product descriptions from the supplier

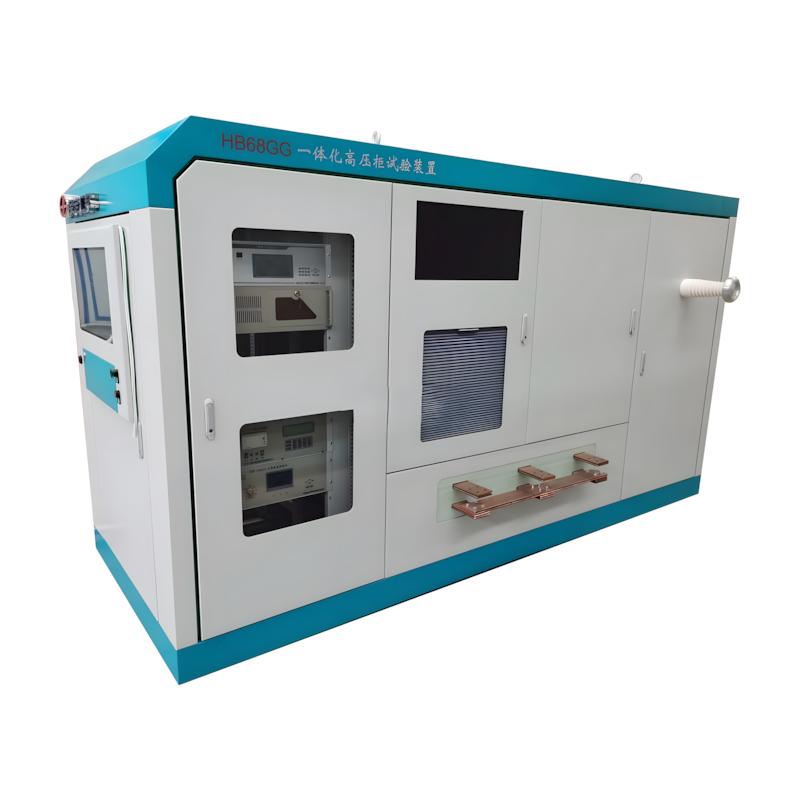

The experimental device adopts an integrated design and is centrally controlled by an industrial computer. It automatically completes various tests of high-voltage switch equipment and has an information system.
Features
The experimental system can conduct tests on high-voltage switchgear, ring main unit, new circuit breaker, pole mounted switch, isolation switch, 10KV electrical system branch box and other high-voltage switchgear equipment.
The experimental system can complete multiple tests such as power frequency withstand voltage, circuit resistance testing, insulation testing of auxiliary and control circuits, mechanical operation and characteristics testing, temperature rise testing, etc.
The experimental system integrates a circuit resistance measurement unit, a dielectric strength testing unit, a mechanical characteristic testing unit, a 5000A three-phase high current generator, and multiple intersection current beams as power sources. All equipment is controlled by an industrial computer and automatically completes various tests.
The verification system is equipped with multiple wireless temperature rise and temperature acquisition devices, making it convenient for temperature testing arrangements.
The experimental system is equipped with an LED Chinese character display protective screen, which can display the system's working status at any time to ensure the safety of the testing personnel.
The verification system has information technology functions and is connected to the cloud platform management system through the network to complete data exchange.
Technical Parameters
|
Class C test equipment |
model |
Technical Specifications |
|
Loop resistance measurement module |
HB5871 |
Output current: 100A, measurement range: 0~20mΩ, measurement accuracy: ± (0.2% reading +0.5 μΩ) |
|
Mechanical characteristics measurement module |
HB6812 |
Measuring voltage range:7~250V, current range and resolution: 10A, 0.01A Time travel: 16000 ms; resolution: 0.1ms; maximum allowable error: within 100ms, ±0.1ms; above 100ms, ±(reading × 0.1% + 0.1ms); speed range: 20m/s; resolution: 0.01m/s; error: within 0-2m/s, ±0.1m/s ± 1 digit |
|
Insulation resistance test module |
HB5805 |
Output voltage: 100V, 250V, 500V, 1000V, 2500V, 5000V Short-circuit current: 5mA |
|
Integrated dielectric strength tester |
HB2620-5 |
Output voltage: 0-5000V, output current: 100mA |
|
Three-phase AC test power supply module |
|
Output voltage: 0-500(V), Output current: 10A |
|
DC test resistor module |
|
Output voltage: 0-300(V), Output current: 10A |
|
Ground conduction measurement module |
HB5878 |
Test current automatically: 200mA, 1A, 5A, 10A |
|
Integrated test transformer and control measurement system |
HB2620-50 |
|
|
Class B test equipment |
model |
Technical Specifications |
|
Integrated power measure module |
HB-2811 |
Voltage: 100V, 0.2%; Current: 5A, 0.2% |
|
Wireless temperature detector |
HB6305 |
Number of sensor channels: 64 channels, Measurement range: 0~200℃, Measurement accuracy: 0.5℃ |
|
High current flow module |
HBDDL-5000 |
Output current: 0-5000A, output voltage: 7V, 3 sets |
|
Test control |
HB2819Z-3 |
The tester is capable of switching between direct current (DC) and alternating current (AC) power control measurements, switching between test procedures, controlling the electrical operation of high-current generators, facilitating data communication, and operating safety protection systems. |
|
Computer systems and software |
HB2819GL-3 |
Test system login, test personnel management, test sample identification, test item setting, test data setting, item switching, status reading, data uploading, and environmental parameter reading and judgment. |
|
Device structure and accessories |
HB2819ZN-3 |
Testing equipment load-bearing capacity, high-voltage electric switch switching, low-voltage electric switch switching, and sealing structure. |
Routine maintenance focuses on precision protection and component inspection, and common faults can be handled as follows:
Monthly inspection: Calibrate the built-in standard resistor and voltage reference; test whether the overcurrent and overvoltage protection functions are normal;
Quarterly maintenance: Clean the heat dissipation vents and test terminals with a dry cloth (do not use water or chemical cleaners); check whether cables and terminals are loose or damaged;
Annual calibration: Contact a qualified metrology institution for comprehensive calibration to ensure accuracy meets standards.
It is a high-integration precision testing instrument designed for 10kV/35kV/110kV high-voltage (HV) switchgear and distribution cabinets. It can complete one-stop testing of core items including insulation withstand voltage, loop resistance, circuit breaker mechanical characteristics, relay protection, and partial discharge without repeated wiring.
Working principle: Connect to the HV side, low-voltage side, control circuit and grounding terminal of the HV cabinet once. The embedded industrial computer automatically switches test circuits through a relay matrix, outputs standard test signals (high voltage/large current), collects data through a high-precision sampling module, processes it in real time via DSP technology, compares it with IEC 62271 and GB 3906 standards, and generates a qualification test report.
