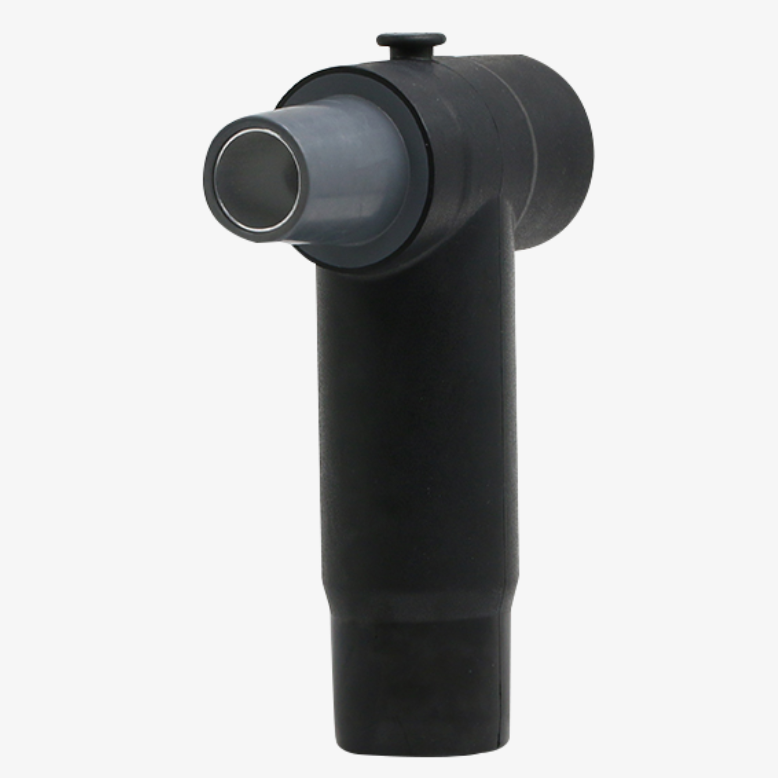

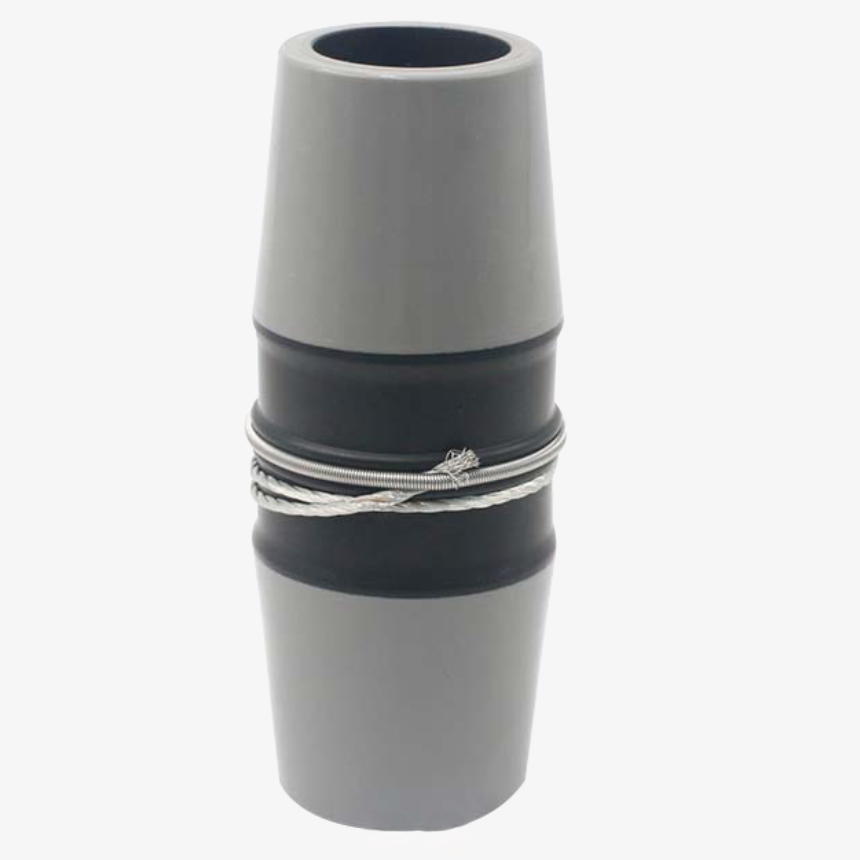

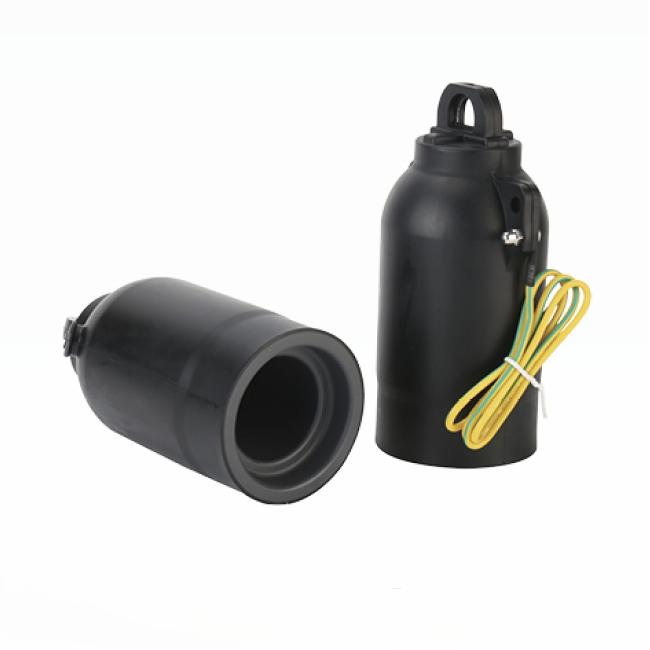

lEC Type Rear Connector
Key attributes
| Brand | Switchgear parts |
| Model NO. | lEC Type Rear Connector |
| Rated voltage | 35kV |
| Rated normal current | 630A |
| Series | RW-HCBT |
Product descriptions from the supplier
Summary
630A IEC type Rear connector connect with IEC type tee connector or other model Rear connector,extended cable connection circuit (branch), it can not be directly connected with the sleeve socket, wall bushing and so on. The tail can be plugged directly with insulating plug, but also can be extended to connect with the rear connector of another line or Rear connector with surge arrester. It is suitable for XLPE cable with 25mm²-630mm² cross-section of cable.Multi adaptability to medium and high voltage scenarios such as 15-35kV, medium and high voltage ring main unit (RMU), SF6 gas filling cabinet
Standard packing
Body of tee connector Silicone grease、towels
Stress cone Instruction manual
Positioning chain、 phase ribbon Conductive rod
Gauze Dust cap
Terminals Rulers for installation
Bolt stud Conformity certificat
Technical specification
Item |
Parameter |
Rate voltage |
12kV 24kV 35kV |
Rate current |
630A 630A 630A |
Power frequency withstand voltage for 1 min |
42kV 54kV 117kV |
Impulse voltage (10 times of positive and negative polarity) |
95kV 125kV 200kV |
Partial discharge |
15kV，≤10pC 21kV，≤10pC 45kV，≤10pC |
Shielding resistance |
≤5000Ω |
Ordering information
Product model |
RW-HCBT 12kV-630A-25mm² RW-HCBT 24kV-630A-25mm² RW-HCBT 35kV-630A-25mm² |
RW-HCBT 12kV-630A-35mm² RW-HCBT 24kV-630A-35mm² RW-HCBT 35kV-630A-35mm² |
RW-HCBT 12kV-630A-50mm² RW-HCBT 24kV-630A-50mm² RW-HCBT 35kV-630A-50mm² |
RW-HCBT 12kV-630A-70mm² RW-HCBT 24kV-630A-70mm² RW-HCBT 35kV-630A-70mm² |
RW-HCBT 12kV-630A-120mm² RW-HCBT 24kV-630A-120mm² RW-HCBT 35kV-630A-120mm² |
RW-HCBT 12kV-630A-150mm² RW-HCBT 24kV-630A-150mm² RW-HCBT 35kV-630A-150mm² |
RW-HCBT 12kV-630A-185mm² RW-HCBT 24kV-630A-185mm² RW-HCBT 35kV-630A-185mm² |
RW-HCBT 12kV-630A-240mm² RW-HCBT 24kV-630A-240mm² RW-HCBT 35kV-630A-240mm² |
RW-HCBT 12kV-630A-300mm² RW-HCBT 24kV-630A-300mm² RW-HCBT 35kV-630A-500mm² |
RW-HCBT 12kV-630A-400mm² RW-HCBT 24kV-630A-400mm² RW-HCBT 35kV-630A-500mm² |
RW-HCBT 12kV-630A-500mm² RW-HCBT 24kV-630A-500mm² RW-HCBT 35kV-630A-500mm² |
RW-HCBT 24kV-630A-630mm² RW-HCBT 35kV-630A-630mm²
|
Note: Selection should depend on the outside diameter of insulation of cable, the cable cross-section only for reference
