Outdoor portable power station
Key attributes
| Brand | RW Energy |
| Model NO. | Outdoor portable power station |
| Rated Output Rating | 5kW |
| Energy storage capacity | 4.8kWh |
| Series | OP |
Product descriptions from the supplier
Peculiarity：
-
Light weight, high capacity, stable power.
-
Rich interface, compatible with USB-A,USB-C,DC interface, cigarette lighter and other mainstream DC interface, and can provide 20~100W stable output.
-
Complete protection functions, high safety performance.
-
Support battery pack voltage and capacity customization to meet different use environments.
-
Mature technology, long cycle life.
-
Modular design, high power density, easy maintenance

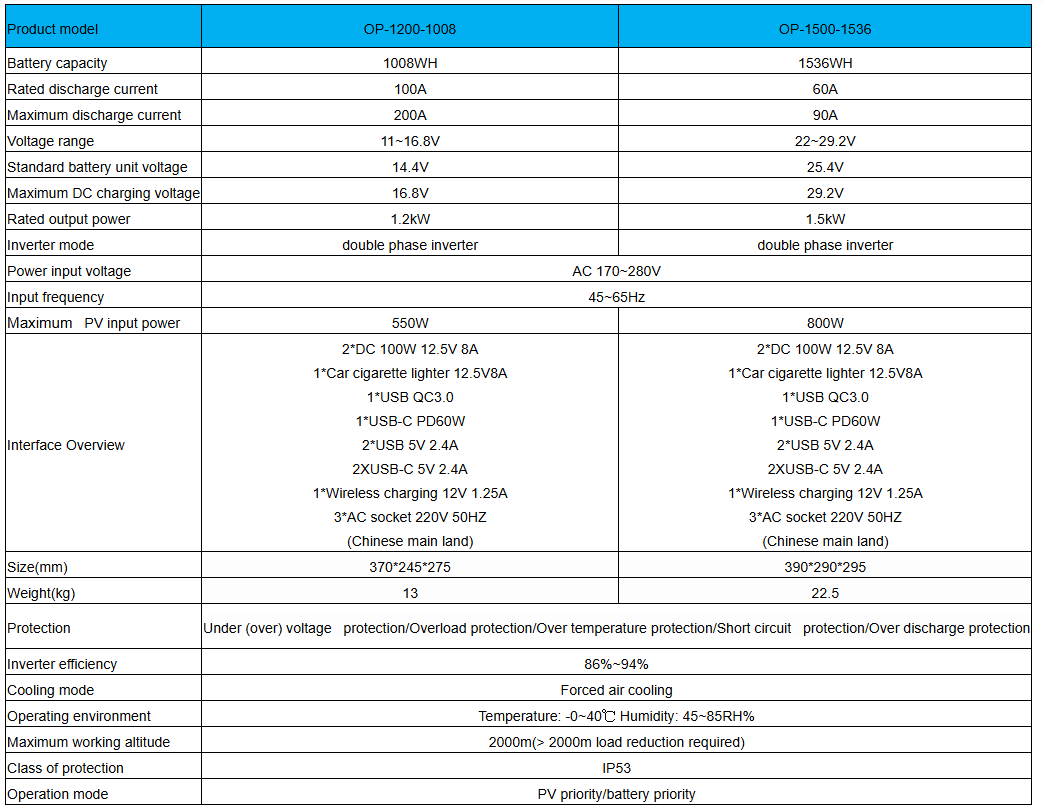

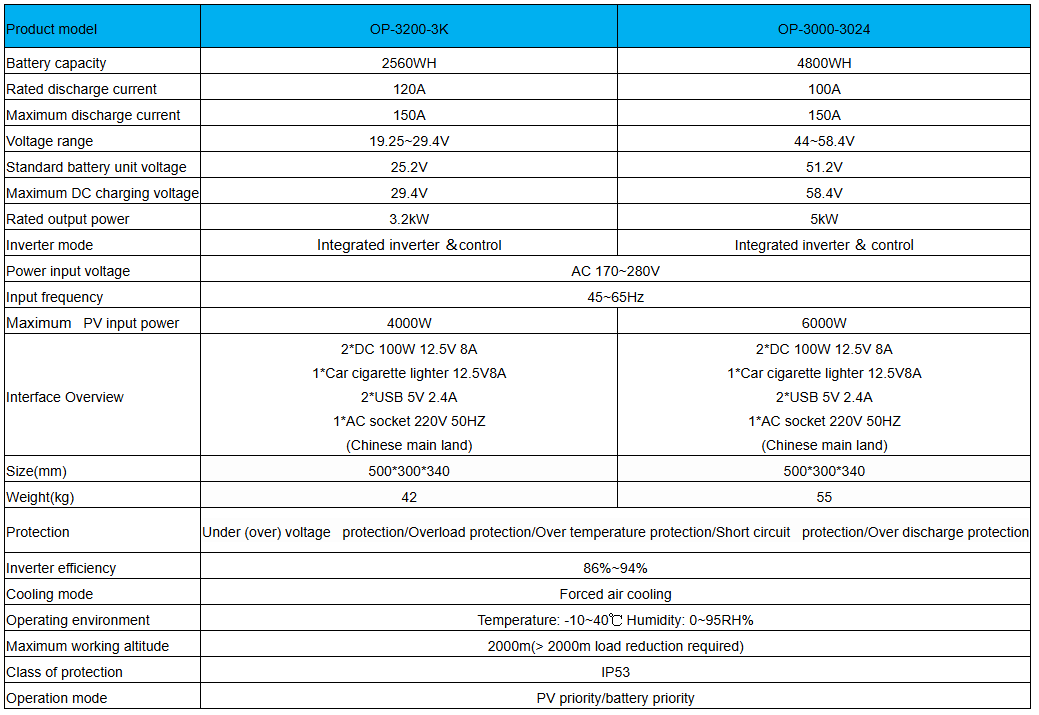

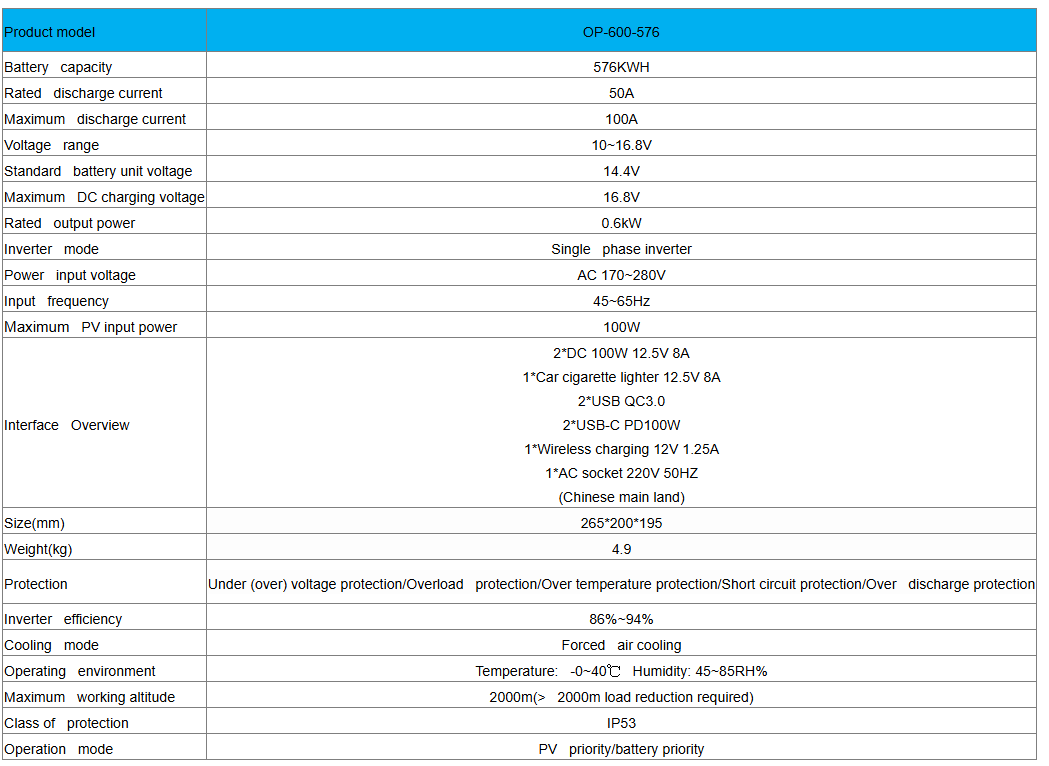

Technical parameter：
NOTE:
Optional AC socket
Optional AC socket output standard：
220V 50HZ / 230V 50HZ / 230V 60HZ/
110V 60HZ / 110V50HZ
The output electric energy standard is applicable to most countries or regions such as Chinese mainland, Hong Kong, Macao, North Korea,Japan，Australia, South Asia, the Middle East, Europe, Africa, South America, etc., and customers in non-above regions can customize according to the customer's local electric energy standard.
Overview of working principle.
The main working principle of a portable power station is to store electrical energy through energy storage units (such as battery packs) and convert the stored electrical energy into alternating current (AC) when needed for use by various electrical appliances. The specific working process is as follows:
-
Energy storage:Portable power stations store electrical energy through battery packs. These battery packs usually use lithium-ion battery technology because they have high energy density and a long service life.
-
Energy management:The battery management system (BMS) monitors the state of the battery, including parameters such as voltage, current, and temperature, and optimizes the battery's charging and discharging process through algorithms to ensure the safe and efficient operation of the battery.The energy management system (EMS) is responsible for the operation strategy of the entire system, including when to charge, when to discharge, and how to optimize energy distribution.
-
Energy conversion:The inverter converts the direct current (DC) in the battery pack into alternating current (AC) for use by household appliances, electronic devices, etc.The inverter is also responsible for ensuring the quality of the output electrical energy, such as voltage stability and accurate frequency.
-
Energy release:When electricity is needed, the stored direct current is converted into alternating current through the inverter and output to terminal devices for use through sockets or other interfaces.
Equipped with rich interfaces, including:
Multiple AC output sockets (220V/230V/110V optional, compatible with mainstream global power grids)
USB-A and USB-C fast charging ports (supporting 20-100W PD fast charging)
12V DC output (including cigarette lighter interface)
Other mainstream DC interfaces
It can simultaneously supply power to multiple devices such as mobile phones, laptops, drones, lighting fixtures, and small household appliances.
This product is designed for outdoor use and has a certain degree of dust and splash resistance, but it is not completely waterproof. It is recommended to use it in a dry and ventilated environment, avoiding direct rain or placing it on a waterlogged ground to ensure electrical safety and equipment lifespan.
This product is suitable for various scenarios such as camping, outdoor work, emergency rescue, mobile office, RV travel, and temporary power supply for small shops. Its 5kW high-power output and 4.8kWh large capacity can support long-term operation of common equipment such as rice cookers, drills, projectors, refrigerators, lighting systems, etc.
