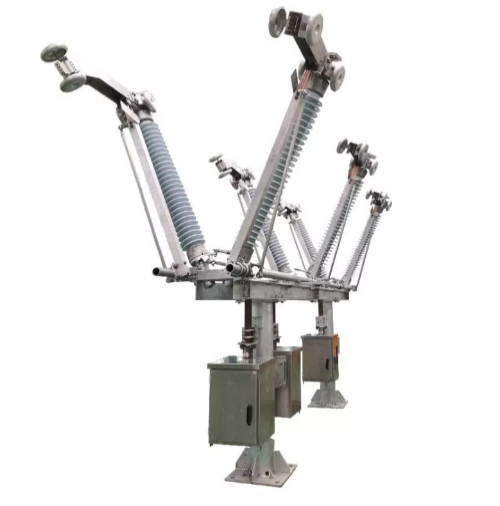

V type center break disconnector

Zhejiang Wone IT Service Co., Ltd.
2yrs + staff 1000+m² US$300000000+ China
  • V type center break disconnector
  • V type center break disconnector

Key attributes

Brand Wone Store
Model NO. "V" type center break disconnector DDHV
Rated voltage 126kV
Rated normal current <= 2000A
Rated frequency 50（Hz）
Series V

Product descriptions from the supplier

Description

Description

Hitachi Energy's DDHV-"V" type center break disconnector is a compact, reliable and easy-to-operate substation equipment.The DDHV is suitable for applications with voltage levels up to 145 kV and is designed for outdoor switching station installations. Each phase has two mobile insulators, arranged in a "V" configuration, making the DDHV design compact and simple. As a result, DDHV is the preferred solution for substations with expensive or limited space.

Industry applications

  • Center break disconnector with a smaller footprint and high reliability.

  • DDHV disconnectors allow for flexible design and reliable operation. A built-in earthing switch is available and can be mounted on one or both sides of the disconnector.

  • Substations in small areas

  • Pole mounting

  • Mobile substations

Features

  • Reliable design

  • Tests are carried out according to the latest relevant standards

  • Maintenance-free contact system

  • Simple and reliable interlocks

  • Easy installation and commissioning

  • Use manual or electric motor operating mechanisms for consistent, smooth operation

Technical parameters

specification unit

Rated voltage Kv 126 145
Current rating A <= 2000 <= 2000
The rated peak withstand current of the disconnector grounding switch KA (Peak) 115 115
Rated short-time withstand current for disconnectors and earthing switches (3 s) Thousand Amps (RMS) 44 44
1 minute 50 Hz rated power frequency withstand voltage to the ground and interphase Kilovolts (rms) 230 275 (Wet)/335 (Dry)
Isolate the fracture space Kilovolts (rms) 230 (+73) 369
Rated lightning impulse withstand voltage (1.2/50 μs) to the ground and interphase Kv 550 650
Circuit resistance Isolate the fracture space Kv 550 (+103) 750
Circuit resistance μΩ 120 120
