Difference Between Electromagnet and Permanent Magnet

Electromagnets vs. Permanent Magnets: Understanding the Key Differences

Electromagnets and permanent magnets are the two primary types of materials that exhibit magnetic properties. While both generate magnetic fields, they differ fundamentally in how these fields are produced.

An electromagnet generates a magnetic field only when an electric current flows through it. In contrast, a permanent magnet inherently produces its own persistent magnetic field once it has been magnetized, without requiring any external power source.

What Is a Magnet?

A magnet is a material or object that produces a magnetic field—a vector field that exerts a force on other magnetic materials and moving electric charges. This field exists both within the magnet and in the surrounding space. The strength of the magnetic field is represented by the density of magnetic field lines: the closer the lines, the stronger the field.

Magnets have two poles—north and south. Like poles repel each other, while opposite poles attract. This fundamental behavior governs magnetic interactions.

Below, we explore the key distinctions between electromagnets and permanent magnets in greater detail.

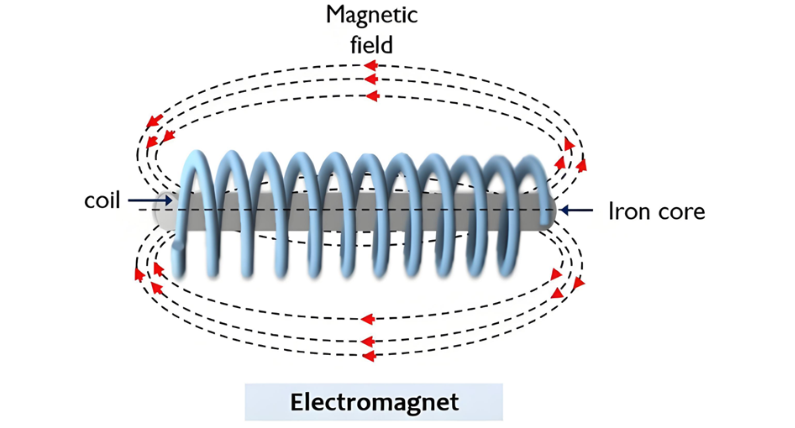

Definition of Electromagnet

An electromagnet is a type of magnet in which the magnetic field is generated by an electric current. It is typically constructed by winding a coil of conductive wire (often copper) around a soft ferromagnetic core, such as iron.

When an electric current passes through the coil, a magnetic field is created around the wire. The core enhances this field, becoming temporarily magnetized. The strength and polarity of the magnetic field depend on the magnitude and direction of the current.

Because the magnetic field exists only while current flows, electromagnets are considered temporary magnets. Once the current is switched off, the magnetic field collapses, and the core loses most of its magnetism.

This controllability makes electromagnets highly versatile. They are often referred to as controllable magnets because their strength can be adjusted by varying the current, and their polarity can be reversed by changing the current direction.

The magnetic field in an electromagnet arises from the interaction of currents in adjacent turns of the coil. The resulting field direction follows the right-hand rule, and the force between conductors is due to the interaction of their individual magnetic fields.

Common Applications: Electric motors, relays, MRI machines, speakers, and industrial lifting systems.

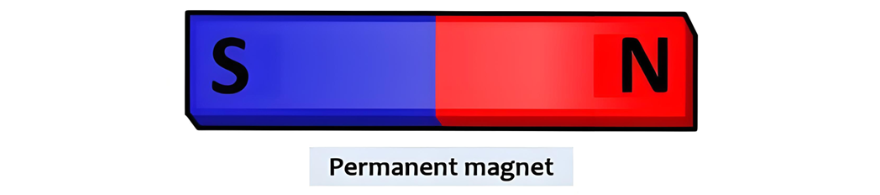

Definition of Permanent Magnet

A permanent magnet is made from a hard ferromagnetic material that retains its magnetism after being magnetized during manufacturing. Unlike electromagnets, permanent magnets do not require an external power source to maintain their magnetic field.

Common types of permanent magnets include:

• Alnico (Aluminum-Nickel-Cobalt)
• Neodymium (NdFeB – Neodymium-Iron-Boron)
• Ferrite (Ceramic)
• Samarium Cobalt (SmCo)

These materials are chosen for their high coercivity and remanence, allowing them to resist demagnetization and maintain strong magnetic fields over long periods.

How Do Permanent Magnets Generate Their Own Magnetic Field?

All ferromagnetic materials contain tiny regions called magnetic domains, where the magnetic moments of atoms are aligned. In an unmagnetized state, these domains point in random directions, canceling each other out, resulting in no net magnetic field.

To create a permanent magnet:

• The material is exposed to a very strong external magnetic field.
• Simultaneously, it is heated to a high temperature (below its Curie point), allowing the domains to move more freely.
• As the material cools in the presence of the external field, the domains align with the applied field and become "locked" in place.
• Once cooled, the material retains this alignment, achieving magnetic saturation and becoming a permanent magnet.

This process ensures that the magnetic fields of the domains reinforce rather than cancel each other, resulting in a strong, persistent net magnetic field.

Demagnetization

Permanent magnets can lose their magnetism if subjected to:

• High temperatures (especially above their Curie temperature),
• Strong opposing magnetic fields,
• Physical shock or vibration (in some materials).

These conditions can disrupt the aligned domains, causing them to revert to a random orientation and reducing or eliminating the net magnetic field.

Common Applications: Electric motors, generators, sensors, magnetic couplings, refrigerator magnets, and headphones.

Conclusion

Electromagnets and permanent magnets each have unique advantages based on their operating principles. Electromagnets offer controllability, high strength on demand, and reversibility, making them ideal for dynamic applications. Permanent magnets provide a constant, maintenance-free magnetic field, suitable for compact and energy-efficient designs.

The choice between the two depends on the specific requirements of the application, including power availability, need for control, operating environment, size constraints, and cost. Understanding their differences enables engineers and designers to select the most appropriate magnetic solution for their needs.
