Common Faults and Maintenance Methods for Low-Voltage Pole-Mounted Circuit Breakers

Common Faults and Maintenance Methods for Low-Voltage Pole-Mounted Circuit Breakers

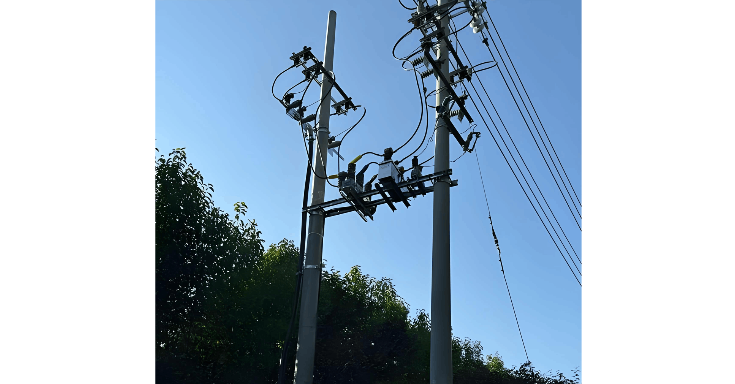

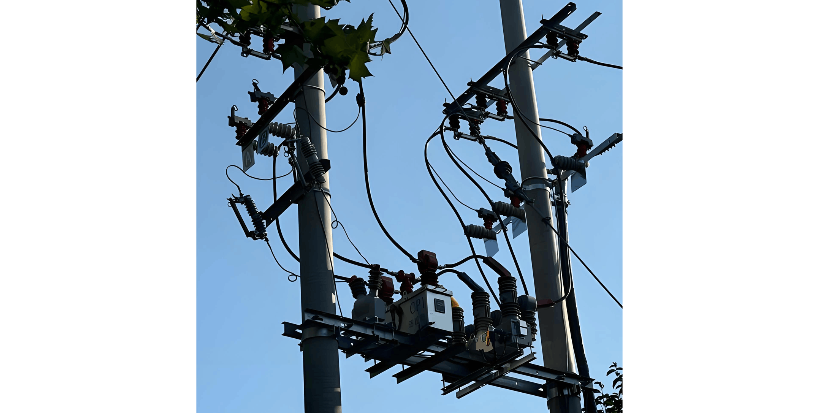

Low-voltage pole-mounted circuit breakers, as key protective devices in distribution networks, are widely used in connection, segmentation, and branch locations of 10kV overhead lines. Operating long-term in harsh outdoor environments, they face multiple challenges including electrical performance degradation, mechanical component wear, and the impact of environmental factors.

Structural Features and Working Principle of Low-Voltage Pole-Mounted Circuit Breakers

Low-voltage pole-mounted circuit breakers adopt a three-phase post structure, featuring compact size, light weight, excellent interrupting performance, and stability. Their core structure consists of three main parts: the circuit breaker body, operating mechanism, and intelligent controller. The circuit breaker body is composed of vacuum interrupters, conductive components, and insulating posts; the operating mechanism, typically spring or permanent magnet type, is responsible for executing opening and closing operations; the intelligent controller integrates protection functions and communication interfaces, enabling remote control and fault isolation.

The working principle of pole-mounted circuit breakers follows a "detection, judgment, execution" process. When overloads, short circuits, or ground faults occur in the line, built-in current transformers and voltage transformers collect fault signals. The controller determines the fault type based on preset parameters and then triggers the operating mechanism to execute the opening operation, cutting off the fault current. Modern intelligent pole-mounted circuit breakers also feature multiple reclosing functions, capable of quickly eliminating faults within 25ms, achieving self-healing capabilities in distribution networks.

Common Electrical Faults and Maintenance Methods

• Failure to Close: Failure to close is one of the most common electrical problems for pole-mounted circuit breakers, manifested as the inability to perform closing operations. Main causes include control circuit disconnection, power loss, damaged closing coils, and unlatched trip units.

• Failure to Trip: Failure to trip occurs when the circuit breaker cannot open normally during a line fault, easily leading to upstream tripping and expanded power outages. Common causes include tripping coil faults, poor contact of control circuit fuses, incorrect protection parameter settings, and mechanical latch failure.

• Maloperation: Maloperation refers to the circuit breaker tripping automatically without a fault, mainly caused by incorrect protection settings, poor insulation in secondary circuits (two-point grounding), sensor faults, and electromagnetic interference.

• Insulation Performance Degradation (Leakage): This fault manifests as decreased insulation performance, common in humid and dirty environments. Causes include insulation material aging, seal damage, and internal moisture ingress.

Common Mechanical Faults and Maintenance Methods

• Operating Mechanism Jamming: Operating mechanism jamming is the main manifestation of mechanical faults in pole-mounted circuit breakers, commonly occurring in humid and dusty environments. Causes include component rusting, loose or deformed transmission links, insufficient spring energy storage, and failure of opening/closing latches.

• Contact Burnout and Poor Contact: This is manifested as oxidized or worn contact surfaces leading to increased contact resistance and excessive temperature rise. Causes include overload operation, insufficient contact pressure, poor contact material quality, and mechanical vibration causing unstable contact.

• Decreased Vacuum in Vacuum Interrupters: This is manifested as weakened arc extinguishing capability and prone to arc reignition. Causes include seal aging, bellows damage due to mechanical impact, and material vaporization from long-term interruption of large currents.

• Insulator Post Degradation: This is manifested as decreased insulation performance, common in dirty and humid environments. Causes include aging of silicone rubber sheds, accumulation of surface dirt on porcelain posts, and internal voids or cracks.

Environmental Adaptability Faults and Maintenance Methods

• Seal Aging: Seal aging is a common issue for pole-mounted circuit breakers operating long-term outdoors, manifested as SF₆ gas leakage or moisture ingress. Causes include long-term UV exposure, temperature changes, and mechanical stress.

• Pollution Flashover Failure: This is manifested as surface flashover discharge on posts, common in dirty and humid environments. Causes include decreased hydrophobicity of silicone rubber sheds, surface dirt accumulation, and insufficient creepage distance.

• Enclosure Corrosion and Deformation: This is manifested as surface rust or internal structural deformation of the enclosure, affecting equipment sealing and mechanical stability. Causes include long-term exposure to humid and corrosive environments, mechanical stress, or improper installation.

Intelligent Monitoring and Preventive Maintenance

Modern pole-mounted circuit breakers have achieved integration of primary and secondary systems, incorporating digital FTUs (Feeder Terminal Units). Through digital interfaces, parameters such as phase current, zero-sequence current, and insulation status can be monitored in real-time, enabling early fault warnings and rapid isolation. Intelligent monitoring systems can automatically record fault data and transmit information to dispatch centers via communication interfaces, allowing operation and maintenance personnel to promptly understand equipment status.
