What should be noted when selecting and installing outdoor current transformers?

Hey everyone, I'm James, and I've been working with current transformers (CTs) for 10 years.

From running around job sites with my mentor, wiring and debugging equipment, to now leading substation projects and handling all kinds of complex CT issues — I’ve worked with a lot of outdoor current transformers over the years. And trust me, I’ve made mistakes, learned from them, and picked up some real-world experience along the way.

A few days ago, a fellow engineer asked me:

“James, we’re installing a batch of outdoor CTs soon — anything special we need to watch out for?”

That’s such a practical question! So today, I want to share with you:

What are the key points to keep in mind when selecting and installing outdoor current transformers?

No fancy technical jargon — just plain talk based on my 10 years of hands-on experience. Let's get into it!

1. Selection — Don’t Rush the Order, Get These Things Right First
1.1 Know Your System Parameters

This is step one — and the most important:

• What’s the rated primary current?
• What’s the system voltage level? Like 10kV, 35kV, or 110kV?
• Is it for measurement, metering, or protection?

Different uses mean different accuracy classes and design requirements. For example:

• Metering CTs need high precision (usually 0.2S or 0.5S);
• Protection CTs focus more on performance during faults (like 5P20 or 10P20).

1.2 Environmental Conditions Matter Big Time

Outdoor CTs face wind, rain, snow, sun, and temperature extremes.

• Is there salt spray corrosion? Especially near coasts or chemical plants;
• Are there big temperature swings? Think -30°C in northern winters and +40°C humid summers;
• Any vibration or lightning risk? These also affect lifespan and reliability.

So when choosing a model, go for:

• Corrosion-resistant housing (stainless steel or fiberglass);
• UV and aging-resistant insulation materials;
• At least IP55 protection rating to block dust and water.

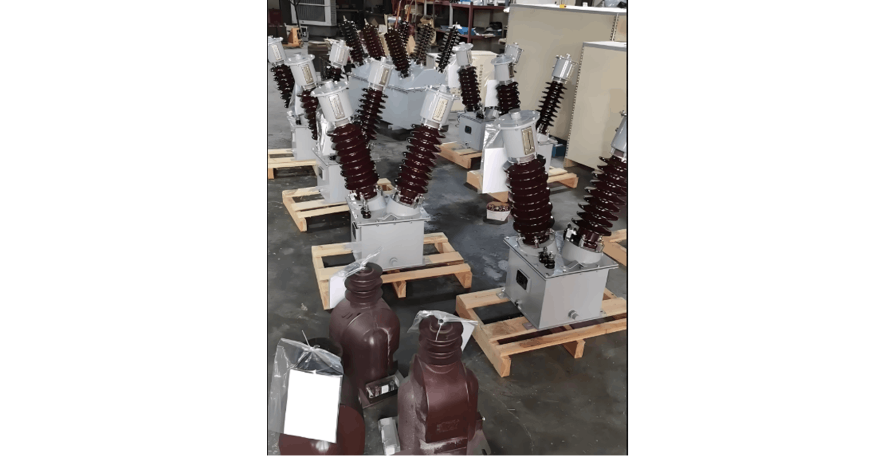

1.3 Pick the Right Structure Type

Common outdoor CT types include:

• Bushing type – often used at transformer outlets;
• Core-type (window-type) – common on overhead lines;
• Post-type – used near GIS or circuit breakers.

Choosing the wrong type can lead to installation difficulties or even measurement inaccuracies and safety risks.

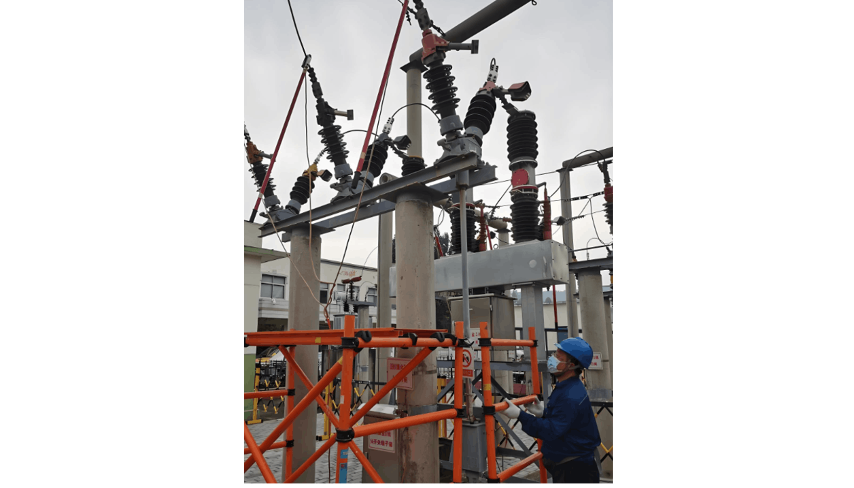

2. Installation — Small Steps, Big Impact
2.1 Grounding Is Non-Negotiable

The secondary side of a CT must be grounded properly — otherwise, an open circuit can create dangerously high voltages, risking both life and equipment.

In outdoor conditions with high humidity and frequent rain, poor grounding can cause:

• Insulation degradation;
• False trips;
• Equipment damage.

So always:

• Check that ground connections are tight and solid;
• Test the grounding resistance;
• Use anti-corrosion measures so the connection stays good over time.

2.2 Double-Check the Polarity

This is an old issue, but still a big one. Getting polarity wrong can cause:

• Incorrect measurements;
• Metering errors;
• Protection misoperations — like tripping when it shouldn’t.

Especially in differential protection schemes, a reversed CT polarity can create abnormal differential currents and false trips.

Before installation:

• Make sure P1, P2, S1, S2 markings are clear;
• Confirm secondary wiring matches;
• Perform a polarity test if unsure.

2.3 Seal It Up and Keep Water Out

Even though outdoor CTs have weatherproof ratings, improper installation can still let moisture in.

If not sealed well:

• Internal insulation drops;
• Terminals corrode;
• Measurement becomes unreliable.

After installation, check:

• All covers are tightly fastened;
• Sealing gaskets are intact;
• Cable entries are properly sealed against water.

2.4 Avoid Mechanical Stress

Some installers force the CT into place by pulling or twisting — this can deform internal parts and damage the unit.

Instead:

• Use proper mounting brackets;
• Adjust alignment before connecting;
• Never use brute force to make things fit.

2.5 Testing After Installation Is a Must

Just because it’s installed doesn’t mean it’s done. You should still do:

• Ratio test – confirm actual ratio matches nameplate;
• Polarity test – double-check wiring direction;
• Excitation characteristic test – especially for protection-grade CTs;
• Insulation resistance test – ensure good insulation;
• Load simulation test – run a quick check before full operation.

3.Final Thoughts

As someone who’s spent 10 years in the field, here’s what I’ve learned:

“Wrong selection means wasted effort; bad installation means hidden dangers.”

Whether you're new or experienced, when dealing with outdoor current transformers, you must treat every step with care and respect.

If you're just starting out, ask for help, read the manuals, and learn from those who’ve done it before. If you're seasoned, don’t get complacent — after all, safety comes first, and accurate data directly affects grid stability and cost control.

If you ever run into issues during selection or installation, feel free to reach out. I’m happy to share more hands-on experience and practical tips.

Here’s hoping every outdoor current transformer runs safely and accurately, protecting the power grid day and night!

— James
