5C Commercial Liquid-Cooled supper fast Charging Terminal
Key attributes
| Brand | RW Energy |
| Model NO. | 5C Commercial Liquid-Cooled supper fast Charging Terminal |
| Rated normal current | 600A |
| Rated Output Rating | 600KW |
| Output Voltage | DC 200-1000V |
| Connector Options | CHAdeMO |
| Cable Length | 5m |
| Input Voltage | DC 200-1000V |
| Series | WZ12LT |
Product descriptions from the supplier
Product overview

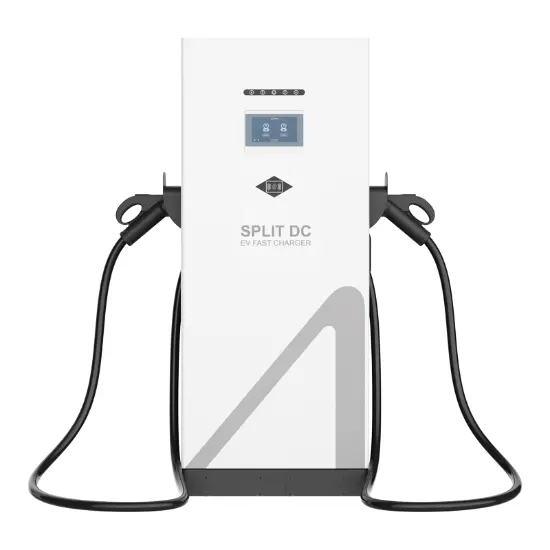

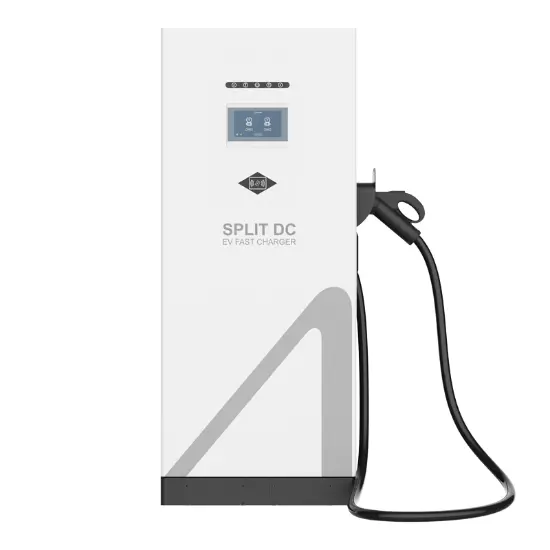

Tailored for extreme fast-charging scenarios (highway stations, logistics parks, bus/heavy truck depots, urban hubs, auto test bases), this terminal offers single/dual-gun options. With advanced liquid cooling, it achieves 5C ultra-fast charging (max single-gun 1000V/600A), drastically shortening charging time for large-capacity vehicles.
Supports parallel input with Integrated Rectifier Stack for high-density clusters. Compliant with OCPP 1.6J (standalone/commercial use), equipped with standard RFID and optional credit card payment. IP54/IK10 protection and -30°C~55°C operating temperature ensure reliable outdoor operation.
Key Features
5C Ultra-Fast Charging: Max 1000V/600A (GBT)/400A (CCS2) output, shortening large-capacity vehicle charging time.
Liquid Cooling: Efficient heat dissipation under high current, avoiding overheating and ensuring stable charging.
Single/Dual-Gun Deployment: Dual-gun doubles throughput without extra space, adapting to diverse scenarios.
Parallel & Configurable Power: Balanced distribution with rectifier cabinets; configurable output protects batteries.
Dual-Mode Support: OCPP 1.6J enables enterprise internal use and commercial operation.
Diversified Payment: Standard RFID (ISO/IEC 14443A/B) + optional credit card reader.
High Protection: IP54 dustproof/waterproof + IK10 impact resistance for harsh outdoor environments.
Comprehensive Safety: Overvoltage/lightning/overcurrent/leakage/over-temperature protection & emergency stop button.
Technical Parameters
Category |
specifications |
Data parameters |
Appearance structure |
Dimensions (L x D x H) |
700mm x 400mm x 1700mm |
Weight |
122kg |
|
Length of charging cable |
3.5m |
|
Connectors |
CCS2 || GBT |
|
Electrical indicators |
Input Voltage |
0 to 1000V DC |
Input frequency |
50/60Hz |
|
Output Voltage |
200 - 1000VDC |
|
Output current |
CCS2 -400A / GBT- 600A |
|
Insulation (input - output) |
>2.5kV |
|
Efficiency |
≥94% at nominal output power |
|
Power factor |
>0.98 |
|
Communication protocol |
OCPP 1.6J |
|
functional design |
Display |
Customize according to requirements |
RFID system |
ISO/IEC 14443A/B |
|
Access Control |
RFID: ISO/IEC 14443A/B / Credit Card Reader (Optional) |
|
Communication |
Ethernet - Standard / 3G/4G Modem (Optional) |
|
Power Electronics Cooling |
Air Cooled |
|
work environment |
Operating temperature |
-30°C to 55°C |
Working / Storage Humidity |
≤95% RH / ≤99% RH (Non-condensing) |
|
Altitude |
< 2000m |
|
Ingress Protection |
IP54 / IK10 |
|
safety design |
Safety standard |
GB/T 18487, GB/T 20234 , GB/T 27930 , ISO15118, IEC61851 |
Safety protection |
Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc |
|
Emergency Stop |
Emergency Stop Button Disables Output Power |
Application Scenarios
Highway Ultra-Fast Stations: Forms clusters with high-power rectifier cabinets; 5-10 mins for 80% power.
Logistics Parks: Dual-gun terminals for electric heavy trucks; fast charging during loading/unloading.
Bus/Heavy Truck Depots: Dual-gun serves two vehicles; stable continuous charging via liquid cooling.
Urban Core Hubs: Compact size fits urban parking; 5C charging for high-end passenger cars.
Auto Test Bases: Configurable power adapts to high-rate charging and battery performance tests.
Port/Logistics Terminals: Matches special vehicles’ large-capacity batteries; low failure rate ensures uninterrupted operation.
1. Only as an additional service, not for profit purposes: For scenarios such as hotels/homestays, beauty salons, etc., it is recommended to use a light asset model and deploy a small amount of WZ15L, WZ15W, or WZ17W for charging settlement through local pricing models, in order to provide additional value-added services.
2. Scenarios for small commercial charging stations/shopping mall charging stations: Considering the load capacity of the station area, it is not possible to deploy too many charging positions. WZ05, WZ06, WZ07, WZ08, and other fast charging devices with one machine and two guns can be selected, which are the preferred choices for the renovation of old parking lots. They can be easily deployed and used. If you need a scenario with one machine and multiple positions, you can choose the WZ09 and WZ10 series.
3. Medium to large commercial charging station scenarios: Choose multiple integrated one machine dual gun high-power solutions, such as WZ06, WZ07, WZ08, WZ09, WZ10 series, or a set of WZ12 series, to meet the simultaneous charging of multiple vehicles.
4. Large and ultra large commercial charging scenarios: Choose the WZ12 series, equipped with a large number of fast charging terminals and a small number of liquid cooled charging terminals. Firstly, it can meet the ultra fast charging needs of some high-end car models, demonstrating operational strength and improving reputation. Secondly, it can meet the simultaneous charging needs of many vehicles through a large number of fast charging terminals.
Peak efficiency ≥ 96%; The power factor is all>0.98, with low energy loss.
All WZ series products support OTA remote upgrades, which can be carried out through commercial backend pre updates to achieve protocol updates and vulnerability fixes without on-site operations, reducing maintenance costs for commercial operations.
