| Brand | Rw Energy |
| Model NO. | High-integrated fast DC charger |
| Rated power | 240kW |
| Series | WZ06 |

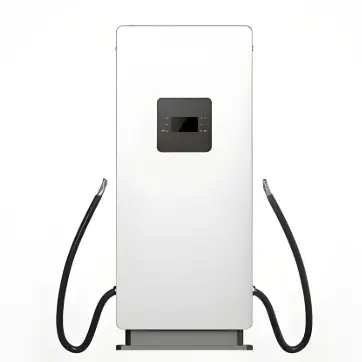

Product Overview：
1000V output DC voltage, to meet the 400~500V voltage demand of electric vehicles, but also take into account the 800V voltage platform; The 240kW high power can not only meet the charging of passenger cars, but also charge buses, buses, sanitation vehicles, electric heavy trucks, and special engineering vehicles. It has the function of "dual guns and simultaneous charging" to improve the charging efficiency of large-capacity battery pack models.
Key Features:
Technical parameters：
Category |
specifications |
Data parameters |
||||
Product Model |
WZ06-120kW |
WZ06-160kW |
WZ06-180kW |
WZ06-200kW |
WZ06-240kW |
|
Appearance structure |
Dimensions (L x D x H) |
705mm x 500mm x 1700mm |
||||
Weight |
320kg |
|||||
Length of charging cable |
5m |
|||||
Connectors |
GBT,CCS2,CCS1,CHAdeMO,NACS |
|||||
Electrical indicators |
Input Voltage |
400VAC / 480VAC (3P+N+PE) |
||||
Input frequency |
50/60Hz |
|||||
Output Voltage |
200 - 1000VDC |
|||||
Output current |
1-250A |
|||||
rated power |
120kW |
160kW |
180kW |
200kW |
240kW |
|
Efficiency |
Peak Power≥96% |
|||||
Power factor |
>0.98 |
|||||
Communication protocol |
OCPP 1.6J (State Grid Corporation of China,YKC, Xiao ju and other operating platforms.) |
|||||
functional design |
Display |
7inch LCD with touch screen |
||||
Number of guns |
2 |
|||||
Access Control |
RFID/ ISO/IEC 14443A/B / POS machine (Optional) |
|||||
Communication |
WIFI/Ethernet / 3G/4G Modem (Optional) |
|||||
Power Electronics Cooling |
Air Cooled |
|||||
work environment |
Operating temperature |
-30°C to 75°C |
||||
Working/Storage Humidity |
≤ 95% RH / ≤ 99% RH (Non-condensing) |
|||||
Altitude |
< 2000m |
|||||
Ingress Protection |
IP54 / IK10 |
|||||
safety design |
Safety protection |
Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc |
||||
Emergency Stop |
Emergency Stop Button Disables Output Power |
|||||

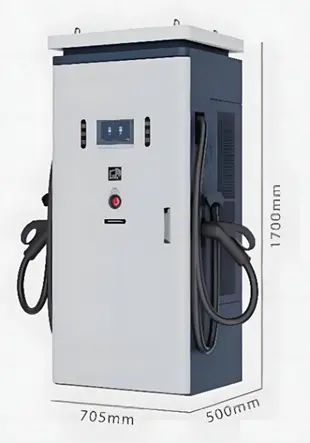

Dimension
Application scenarios
Urban Core Public Fast Charging Stations: Compact 705mm x 500mm x 1700mm design saves space. Dual-gun charging boosts efficiency, 200-1000VDC fits 400/800V vehicles, IP54 & wide temperature resistance for urban use.
Urban-Rural New Energy Bus/Sanitation Stations: 240kW dual-gun charging speeds up fleet replenishment. Wide voltage, air cooling and multi-protection enable all-weather high-frequency operation.
Comprehensive Logistics Park Charging Stations: 240kW fast charges large batteries. Dual-gun design, -30℃~75℃ resistance, multi-protocol compatibility for park vehicles.
Scenic Spot/Resort Charging Stations: Compact body saves space. Dual-gun charges passenger/work vehicles; 7-inch touch screen is visible in strong light, IP54 for outdoor use.
Govt & Enterprise Exclusive Charging Stations: Dual-gun boosts utilization. 200-1000VDC coverage, RFID access & multi-platform communication, low construction/maintenance costs.
1. Only as an additional service, not for profit purposes: For scenarios such as hotels/homestays, beauty salons, etc., it is recommended to use a light asset model and deploy a small amount of WZ15L, WZ15W, or WZ17W for charging settlement through local pricing models, in order to provide additional value-added services.
2. Scenarios for small commercial charging stations/shopping mall charging stations: Considering the load capacity of the station area, it is not possible to deploy too many charging positions. WZ05, WZ06, WZ07, WZ08, and other fast charging devices with one machine and two guns can be selected, which are the preferred choices for the renovation of old parking lots. They can be easily deployed and used. If you need a scenario with one machine and multiple positions, you can choose the WZ09 and WZ10 series.
3. Medium to large commercial charging station scenarios: Choose multiple integrated one machine dual gun high-power solutions, such as WZ06, WZ07, WZ08, WZ09, WZ10 series, or a set of WZ12 series, to meet the simultaneous charging of multiple vehicles.
4. Large and ultra large commercial charging scenarios: Choose the WZ12 series, equipped with a large number of fast charging terminals and a small number of liquid cooled charging terminals. Firstly, it can meet the ultra fast charging needs of some high-end car models, demonstrating operational strength and improving reputation. Secondly, it can meet the simultaneous charging needs of many vehicles through a large number of fast charging terminals.
The entire system supports intelligent power regulation, which can dynamically allocate power based on grid load and battery status, avoiding grid overload and reducing operating costs.
All WZ series products support OTA remote upgrades, which can be carried out through commercial backend pre updates to achieve protocol updates and vulnerability fixes without on-site operations, reducing maintenance costs for commercial operations.
