Key attributes
| Brand | Wone |
| Model NO. | coil cutting line Silicon steel sheets slitting line machine for transformer machine |
| Inner diameter of coil | 500mm |
| Max.Width of coil | 1250mm |
| Slitting thickness | 0.23~0.5mm |
| Slitting width | >=40mm |
| Slitting speed | 110m/min |
| Slitting blade | 6 pairs |
| Series | ZJX |
Product descriptions from the supplier
Description
Description
The ZJX-1250 Slitting Line of Silicon Steel Sheet is a special equipment for slitting the silicon steel sheet coil into strips. It is mainly composed of feeding, winding, slitting, tensioning and etc. The equipment adopts internationally advanced cutting and shearing technology. The cutting tool adopts carbide alloy rolling scissors, which is accurate and reliable in operation. Through high precision shearing, high speed, low noise and low burr process, high cutting accuracy is achieved.
Machine Composition
(a) Feeding Mechanism
(b) Slitting Machine
(c) Rising Mechanism
(d) Winding Mechanism
(e) Loading/Unloading Mechanism
(f) Hydraulic Control System
(g) Electrical Control System

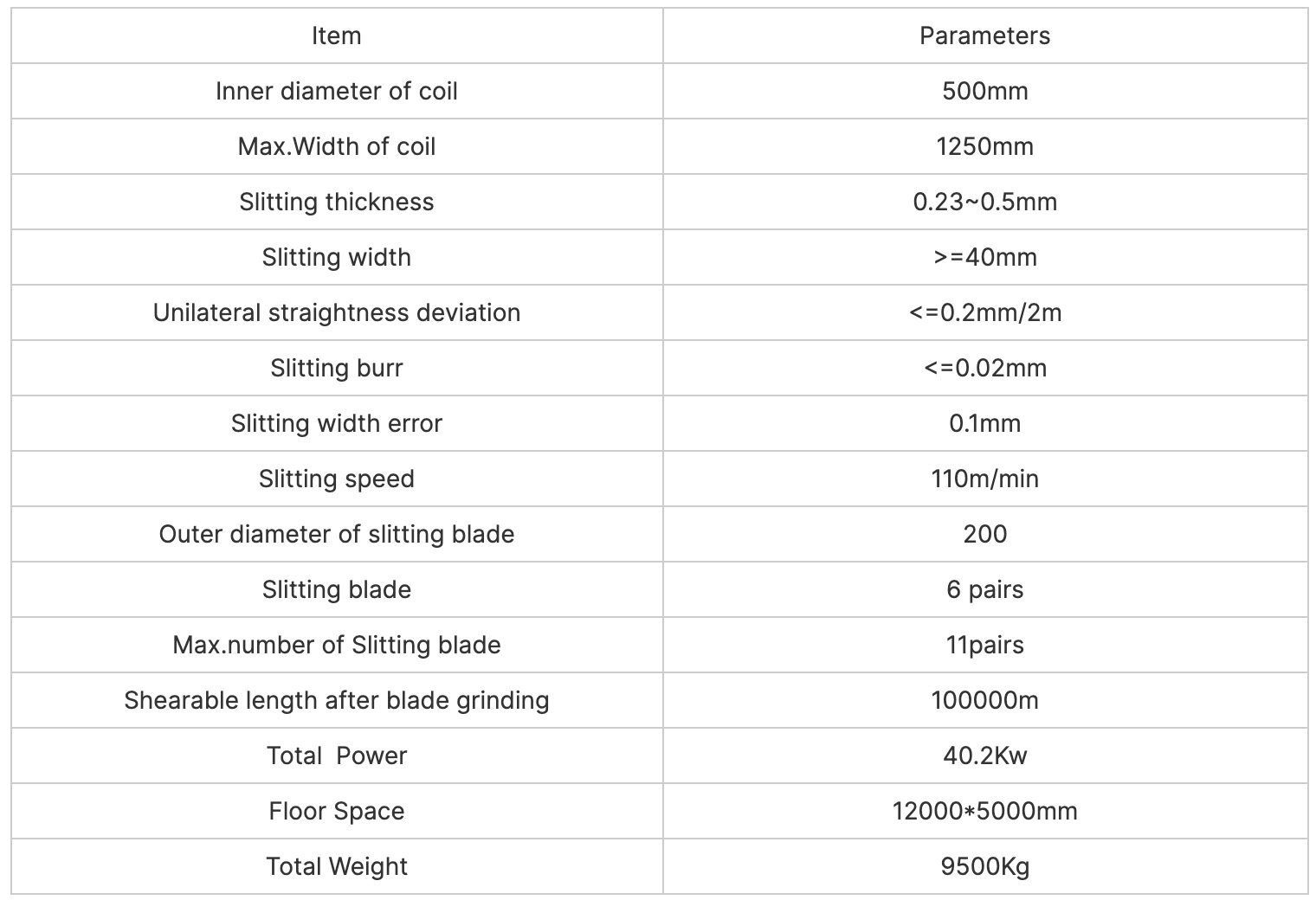

Specifications
