CV Series 1140V/300A Low-Voltage Vacuum Contactor
Key attributes
| Brand | Wone Store |
| Model NO. | CV Series 1140V/300A Low-Voltage Vacuum Contactor |
| Rated normal current | 300A |
| Rated frequency | 50/60Hz |
| Series | CV |
Product descriptions from the supplier
Product Description
The product has a more compact design, making it suitable for equipment with strict space requirements such as roadheaders, shearers, and high-end switchgear.In addition to meeting new power requirements, the 1140V/300A vacuum contactor features a long service life and high reliability.
Feature
Compact Design for Space-Constrained Applications：Boasts an optimized compact structure, making it ideal for installation in equipment with limited space such as roadheaders, shearers, and high-end switchgear, where spatial efficiency is critical.
High Power Handling with 1140V/300A Rating：Specifically engineered to meet the 1140V voltage and 300A current requirements, ensuring stable operation in low-voltage power systems, particularly suitable for industrial environments with demanding power needs.
Extended Service Life and Reliable Performance：Utilizes advanced vacuum arc-extinguishing technology, minimizing contact wear and enabling a high number of operations (typically exceeding 100,000 mechanical cycles). The robust construction ensures consistent performance even in harsh conditions with dust, vibration, or temperature fluctuations.
Enhanced Safety Features：Incorporates multiple protection mechanisms, including overload protection and short-circuit resistance, preventing electrical hazards. The vacuum interrupter design eliminates arc leakage risks, enhancing operational safety in explosive or flammable environments like coal mines.
Wide Compatibility and Easy Integration：Compatible with various control systems (AC/DC control voltage options available) and can be seamlessly integrated into existing low-voltage switchgear configurations. Standardized mounting dimensions simplify installation and replacement processes.

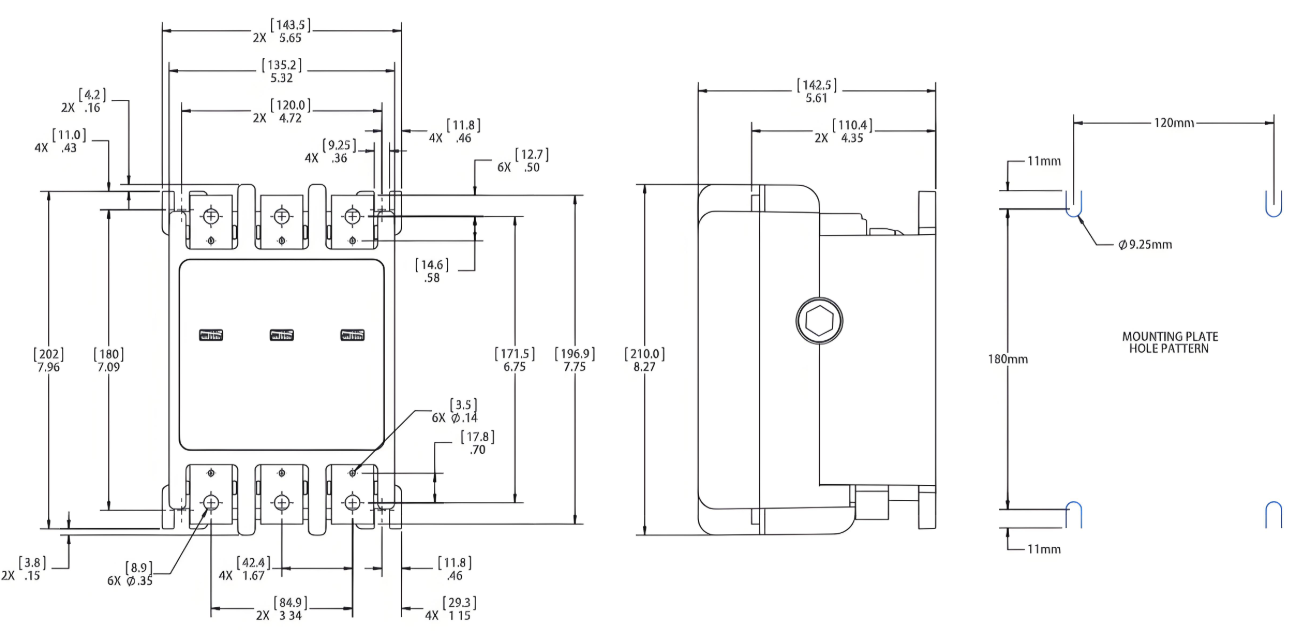

Specifications
| 1.14kV, 300 Amp Data Sheet | ||
| Part number CV 77U033A12 | ||
| IEC 60947-4-1, UL508, CSA22.2 | ||
| Rated parameters | ||
| Rated voltage | 1.14kV | |
| Rated lightning impact voltage | 8kV | |
| Rated current AC1 | AC1 at 40℃ = 330 A | |
| AC1 at 60℃ = 300 A | ||
| Power Rating (Inductive Load) under AC Load P.F. = 0.95 (at 60℃ ) | ||
| 230 V | 73kW | |
| 400 V | 197kW | |
| 500 V | 246kW | |
| 690 V | 340kW | |
| 1000 V | 492kW | |
| AC-3 | ||
| Rated current AC3 1.14kV | 300 A | |
| The rated parameters of the srat cage motor are 50 and 60 hz 1.14kV | 428kW | |
| The capacitive heat load withstands the current for 10 seconds for a short time | 2400 A | |
| Rated frequency | 50 - 60 Hz | |
| Connectivity ability | 3,000A | |
| Ability to divide | 2,400A | |
| Dielectric strength | 6Kv - 1 Min. Interrupter | |
| Breaking current | 3.4kA | |
| Withstand current for a short time | 1 second | 6.0kA |
| 10 seconds | 2.4kA | |
| Electrical Life (AC3) | 1 million times | |
| Frequency of operation | 600 times / hour (every 6 seconds) | |
| Withstand current | 14KA / 50MSec | |
| Control parameter ratings | ||
| Voltage fluctuations | -30% 至+ 25% - at Range Voltage | |
| Suction voltage | 70% cold 75% hot or smaller | |
| Release voltage | 70% or less | |
| Auxiliary contacts - standard | 2NO & 2NC | |
| Auxiliary Contacts - Optional Code - A22 | 4NO & 4NC | |
| Application conditions | ||
| Installation | All planes (contactors only) | |
| elevation | 2000 meters | |
| environment | Storage temperature | -55℃ ... +80℃ |
| Operating temperature | *-40℃ ... +60℃ | |
| Note: * means that the whole cabinet can work at -40 degrees because the whole cabinet is equipped with a heater as standard. | ||
