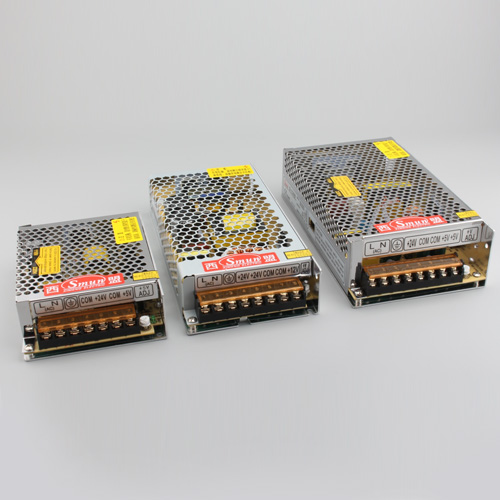

D/T/Q Series switching power supply
Key attributes
| Brand | Wone Store |
| Model NO. | D/T/Q Series switching power supply |
| Rated power | 120W |
| Certification | CE |
| Insulation resistance | ≥100MΩ(500VDC) |
| Terminal type | Threaded type |
| Wide voltage input range | AC100V-260V |
| rated output of CH1 | 5V,12A |
| rated output of CH1 | 15V,5A |
| rated output of CH1 | -5V,1A |
| rated output of CH1 | -15V,1A |
| Wide frequency range | 47-63Hz |
| Series | D/T/Q Series |
Product descriptions from the supplier
15 - 500W Multi - output Enclosure - type Constant - current Switching Power Supply without PFC. Its core features include multi - channel independent constant - current output (capable of simultaneously driving 2 - 10 different loads), a wide power coverage range (from low power to medium - high power), an enclosure - type structure (equipped with basic protection and heat dissipation capabilities), and relatively low cost (without a PFC circuit). It is suitable for scenarios where there is no mandatory requirement for power factor (such as non - industrial - grade scenarios, areas with lenient power grid requirements), where multiple groups of constant - current loads (mainly LED) need to be driven simultaneously, and where there is a certain demand for installation convenience. The specific applications are as follows:
1. Medium - large commercial lighting and multi - area decoration systems.
2. Multi - module display cabinets and display systems.
3. Multi - load power supply and auxiliary power supply for small - medium - sized equipment and instruments.
4. Group control systems for outdoor and landscape lighting.
Features:
Wattage:15W-500W
Miniature size, non-PFC
Universal AC input
LED indicator for power on
Protections:Short Circuit/Over Load/Over Voltage/Over Temp
Built-in EMI filter with tiny ripple
100% full load burn-in test
2 Years Warranty

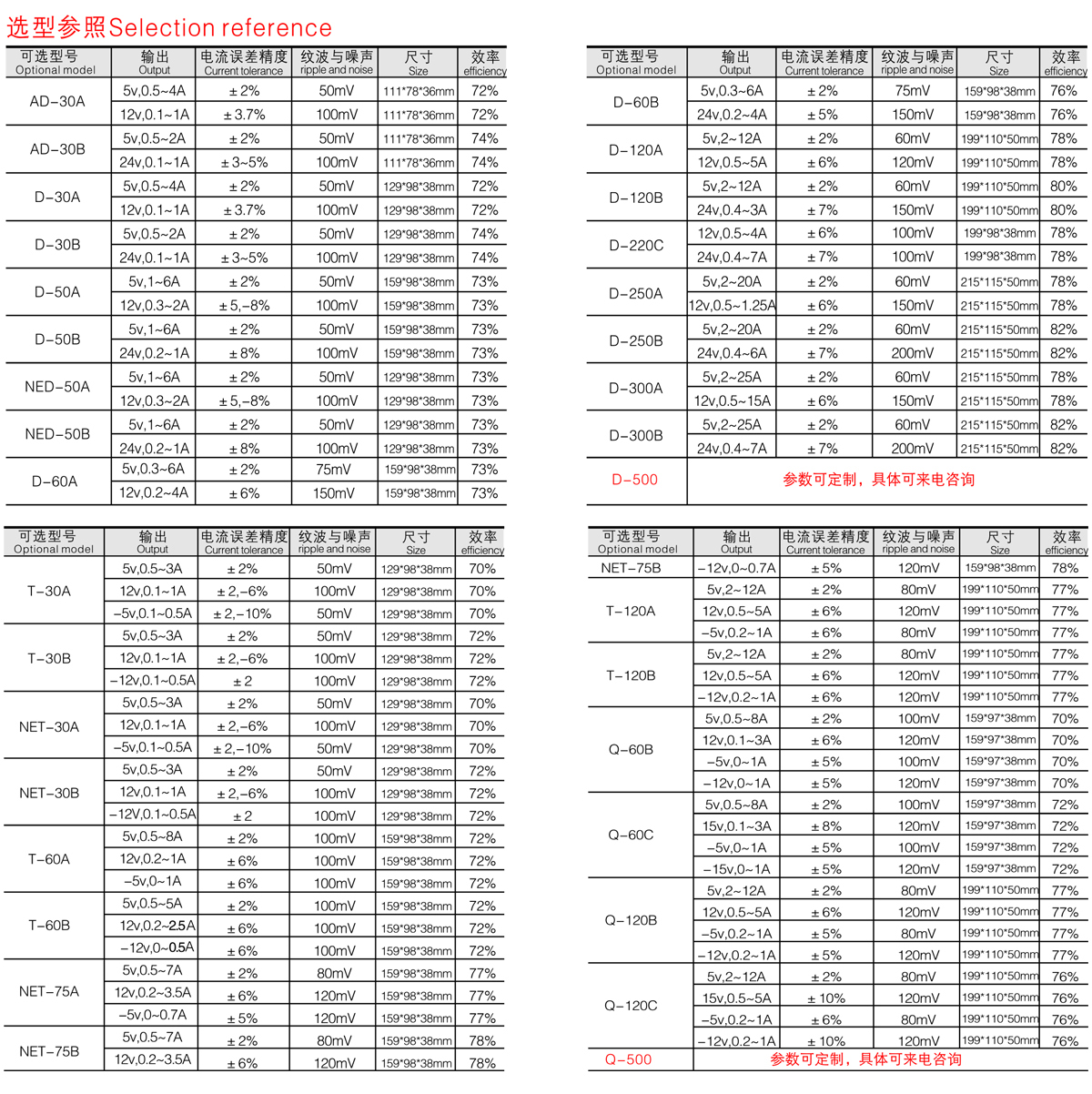

selection reference
If you need to know about or order switching power supplies of other specifications, Please check the model selection manual.↓↓↓
Or you are welcome to contact us.→→→
