JDZ10-12QC Voltage Transformer

Zhejiang Wone IT Service Co., Ltd.
2yrs + staff 1000+m² US$300000000+ China
  • JDZ10-12QC Voltage Transformer

Key attributes

Brand Wone Store
Model NO. JDZ10-12QC Voltage Transformer
Rated frequency 50/60Hz
Primary voltage 11kV
Secondary voltage 110V
Series JDZ

Product descriptions from the supplier

Description

Product Overview

12kV Indoor Single-Phase Epoxy Resin Type Epoxy resin casting and double pole insulated fully enclosed construction, is used indoor for measuring  , electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 7.2/12kV. The product has the feature of high reliability, low magnetism of core, large creepage distance of external insulation and maintenance free etc.

Feature

  • High-precision Single-phase Voltage Conversion: Specifically designed for 12kV single-phase systems, using high-permeability silicon steel cores and precision windings. With a metering accuracy of 0.2 class and stable voltage ratio, it ensures accurate and reliable metering and monitoring data.

  • Enhanced Indoor Environment Adaptability: Fully enclosed epoxy resin casting structure effectively isolates dust and moisture, enabling long-term stable operation in indoor environments with temperatures from -5℃ to 40℃ and relative humidity ≤90%, suitable for enclosed spaces like switch cabinets.

  • Highly Reliable Insulation Performance: The insulation layer has excellent mechanical strength, withstanding 12kV rated voltage and operational overvoltage impacts. Partial discharge ≤10pC significantly reduces insulation aging risks and extends equipment service life.

  • Compact Design for Improved Installation Flexibility: Optimized volume supports horizontal/vertical installation, fitting narrow spaces. Standardized dimensions reduce installation difficulty, saving time and costs.

  • Convenient Operation & Maintenance Features: Flexible outlet options (direct outlet/cable connection), no complex debugging required for daily maintenance, strong anti-electromagnetic interference capability, ensuring long-term stable operation and reducing maintenance burden.



Technical Data

  • Installation site: indoor

  • Rated frequency: 50/60Hz

  • Load power factor: cosΦ=0.8 （lagging）

  • Technical standard accords with  IEC 60044-2(IEC 61869-1&3)

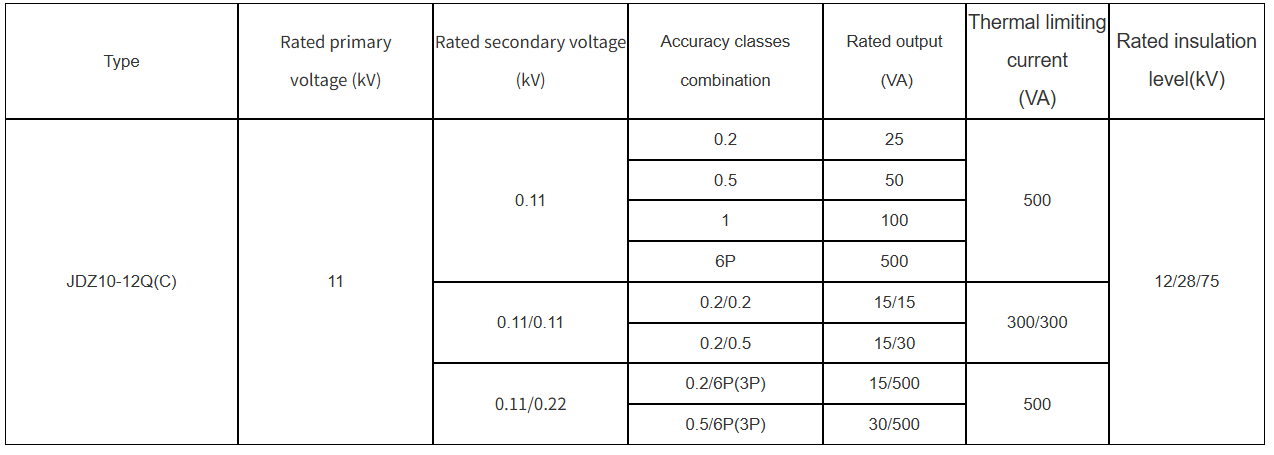

Specification

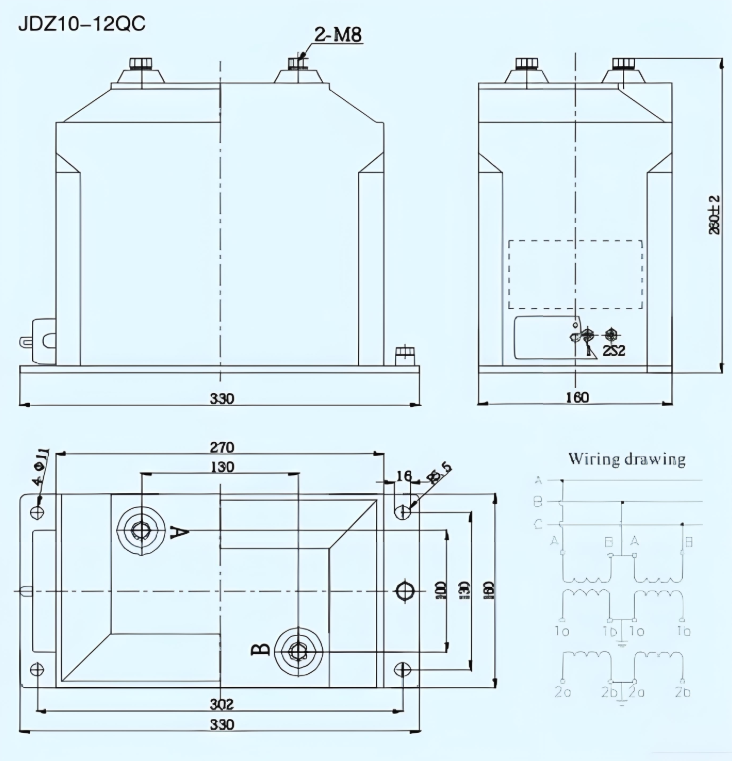

Outline



Know your supplier
Wone Store
Online store
On-time delivery rate
Response time
100.0%
≤4h
Company overview
Workplace: 1000m² Total staff: Highest Annual Export(usD): 300000000
Workplace: 1000m²
Total staff:
Highest Annual Export(usD): 300000000
Services
Business Type: Sales
Main Categories: Wire cable/High Voltage Electrical Apparatus/Low Voltage Electrical Apparatus/Instrument meters/New energy/Tester/Integrated Electrical Equipment/Production equipment/Generator/Electrical fittings/Instrument Transformer/Equipment Parts
Whole life care manager
Whole-life care management services for equipment procurement, use, maintenance, and after-sales, ensuring safe operation of electrical equipment, continuous control, and worry-free electricity consumption.
The equipment supplier has passed platform qualification certification and technical evaluation, ensuring compliance, professionalism, and reliability from the source.
Negotiable
Pricing calculator
Model
Warranty by
Whole life care manager
Whole-life care management services for equipment procurement, use, maintenance, and after-sales, ensuring safe operation of electrical equipment, continuous control, and worry-free electricity consumption.
The equipment supplier has passed platform qualification certification and technical evaluation, ensuring compliance, professionalism, and reliability from the source.
