JSZV2-12RMC Voltage Transformer
Key attributes
| Brand | Wone Store |
| Model NO. | JSZV2-12RMC Voltage Transformer |
| Rated frequency | 50/60Hz |
| Primary voltage | 10kV |
| Secondary voltage | 110V |
| Series | JSZV |
Product descriptions from the supplier
Product Overview
The voltage transformer is epoxy resin casting and full-closed construction, the surface is covered by metal with more safety, match with IEC elbow connectors( EN50181 bushing), is widely used for measuring current, electric energy and protective relaying in the three phase power system with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV
Key Features

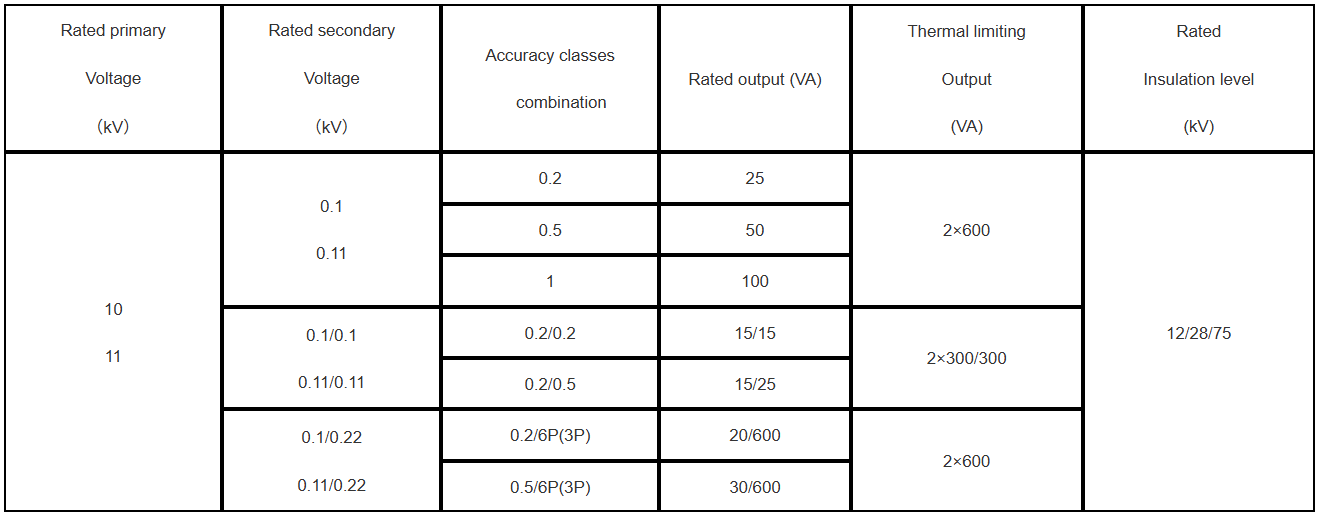

Technical parameter
Rated primary voltage: 3 kV or 6 kV or 10kV or 11kV etc
Technical standard accords with IEC 60044-2(IEC 61869-1&3)
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
